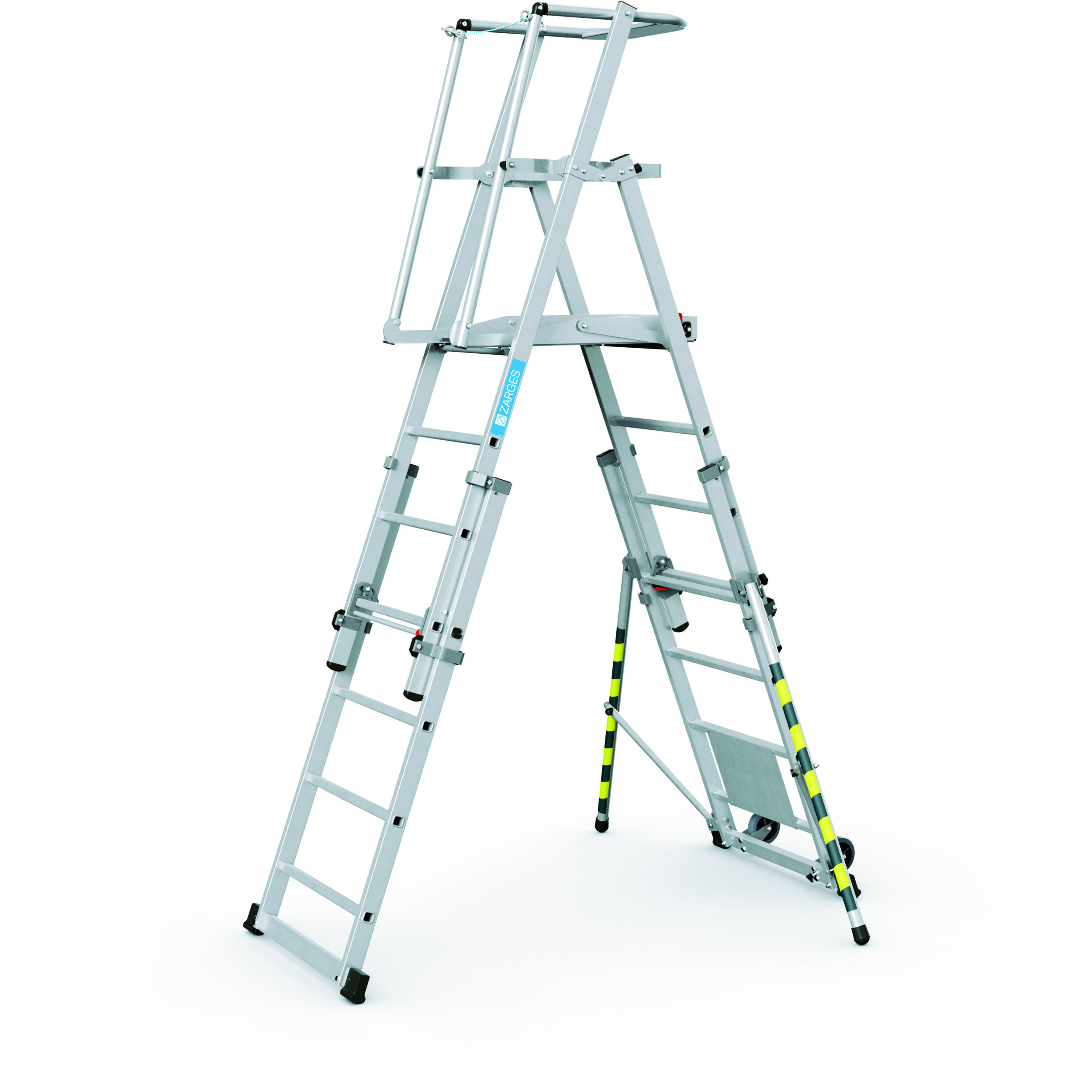

ZAP Telemaster S

SKU: 41326

Details

Secure and flexible: height adjustable platform with all-round railing for stability, easy to adjust with compact closed dimensions.

Height-adjustable platform with large standing surface and all-round railings for safe and comfortable footing.
Simple height adjustment according to the push-up ladder principle, thus different heights can be obtained with only one platform ladder.
Very easy to erect - handrails and guardrails unfold automatically during erection.
Can be used on stairs and folded to a very compact size for transport and storage.
The two rear wheels make it easy to move.

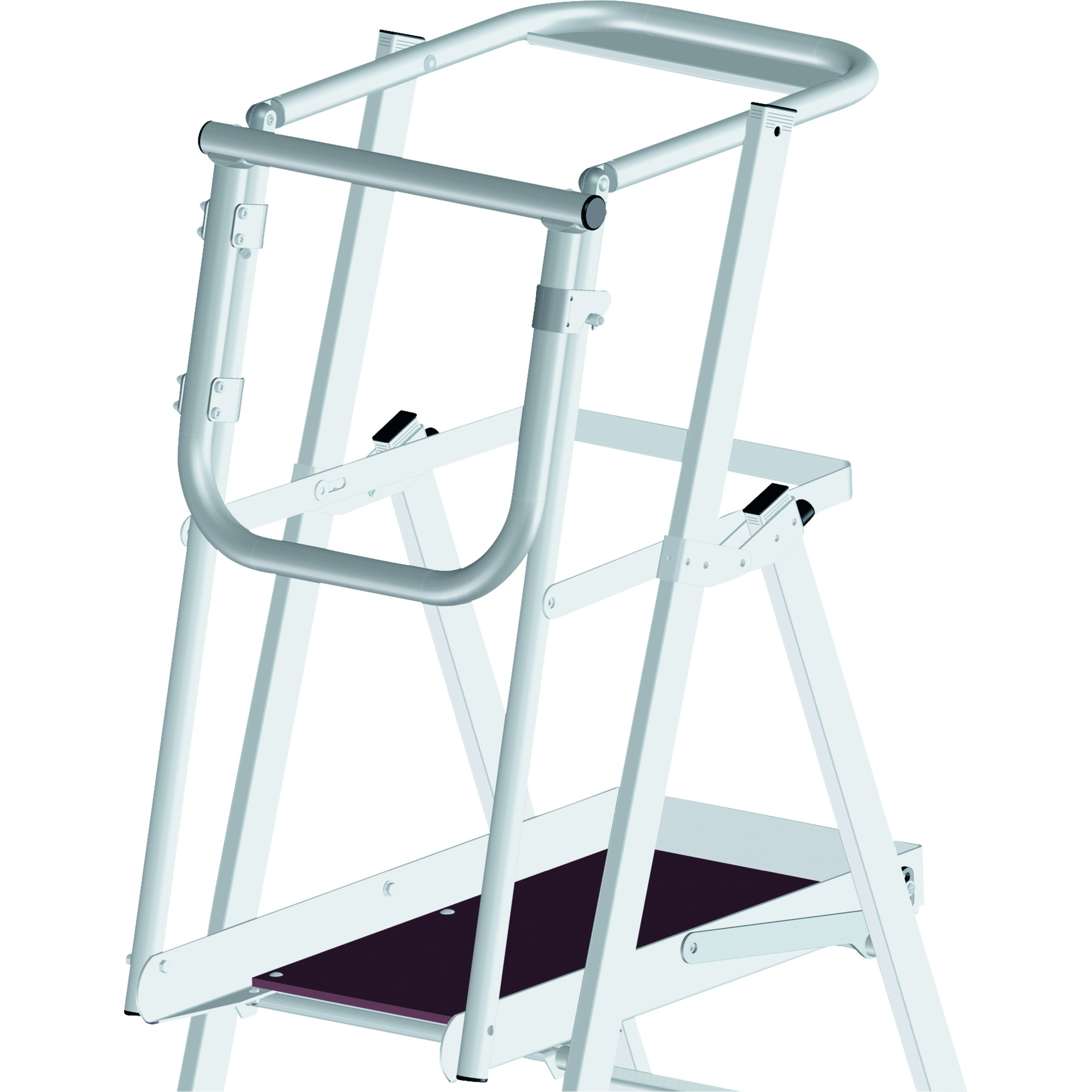

Large standing surface, 665 × 440 mm, made of 7-ply adhesive-bonded plywood board, with guardrail and knee bar, ensures maximum work safety and comfortable standing.
Complies with new European standard DIN EN 131-7.
Can be easily moved even when fully set up thanks to pair of wheels.
Compact dimensions when folded, therefore easy to transport and store.
High strength, non-twist rung/stile connections.
Replaceable 2-component plastic end caps ensure positioning without risk of slipping.
Can be used on steps/stairs.
Order No. 41325 without stabiliser.
Required number of ballast weights when used outdoors: 4x (order no. 41331).

More Information
Platform length	665 mm
Warranty	10 years
Length	0.4 m
Standards	EN 131-7
Platform width	440 mm
Load capacity	max. 150 kg
Guardrail height	1 m
Platform material	7-layer laminated plywood
Footpoint, stabiliser rod extended L x W	1,8m × 2,25 m
Footpoint, stabiliser rod retracted L x W	1,8m × 0,81 m
Tread depth	30 mm
Transport dimensions	2.440 mm × 820 mm × 400 mm
Height including railing	max. 2.86 m
Platform height	1,05m / 1,3m / 1,6m / 1,83m
Working height	3.83 m
extended length	1.8 m
closed length	1.8 m
Storage tray	aluminium
No. of rungs incl. platform	7
Product type	Flanged telescopic platform ladder
Weight	34 kg
Width, extended	2.25 m
Width, retracted	0.81 m
Width	2.44 m
Number of rungs / treads	7

Order number	Footpoint, stabiliser rod extended L x W	Footpoint, stabiliser rod retracted L x W	Height including railing	No. of rungs incl. platform	Platform height	Transport dimensions	Weight	Width	Width, extended	Width, retracted	Working height	closed length	extended length
41325	1,45m × 1 m	1,45m × 1 m	max. 2,37 m	5	0,81m / 1,08m / 1,34m	2.160 mm × 1.020 mm × 400 mm	28 kg	2,16 m	1 m	1 m	3,34 m	1,45 m	1,45 m
41326	1,8m × 2,25 m	1,8m × 0,81 m	max. 2,86 m	7	1,05m / 1,3m / 1,6m / 1,83m	2.440 mm × 820 mm × 400 mm	34 kg	2,44 m	2,25 m	0,81 m	3,83 m	1,8 m	1,8 m
41327	2,2m × 2,55 m	2,2m × 0,81 m	max. 3,38 m	9	1,31m / 1,6m / 1,8m / 2,1m / 2,35m	2.720 mm × 820 mm × 400 mm	38,5 kg	2,72 m	2,55 m	0,81 m	4,35 m	2,2 m	2,2 m
41328	2,8m × 2,5 m	2,8m × 0,81 m	max. 4,17 m	12	1,83m / 2,12m / 2,38m / 2,65m / 2,9m / 3,15m	3.280 mm × 820 mm × 400 mm	50 kg	3,28 m	2,5 m	0,81 m	5,15 m	2,8 m	2,8 m
