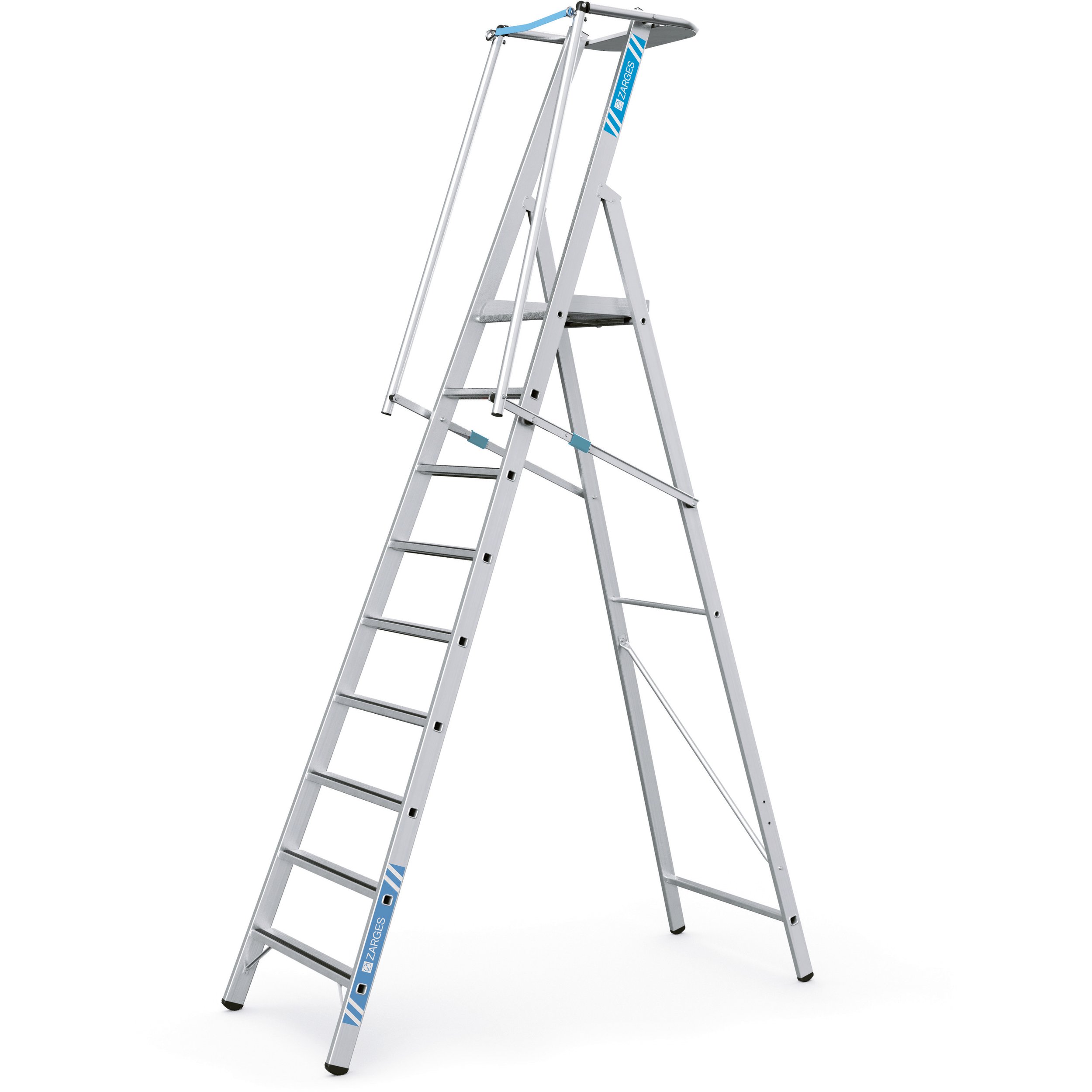

ZAP Safemaster S

SKU: 41679

Details

Safe ascent and descent thanks to anti-slip steps, with handrail, exceptional stability and compact transport dimensions.

  • Safe ascent and descent thanks to anti-slip steps, with handrail, exceptional stability and compact transport dimensions.
  • Optimum stability thanks to rigid locking bar on both sides.
  • Foldable anodised handrails allow it to take up less space during transport.
  • The handle on the platform allows the ladder to be folded up quickly and effortlessly.
  • Large work platform (400 x 400 mm).
  • Anodised handrails and guardrails.
  • Generously sized storage tray for tools and small parts.
  • 80 mm deep treads with ZARGES Safer Step Technology.
  • Can be retrofitted with optional stabiliser sets to comply with EN 131, Part 7.

More Information

More Information
Load capacity max. 150 kg
Platform height 2.34 m
Platform length 400 mm
Warranty 10 years
Standards EN 131 professional
Platform width 400 mm
Guardrail height 1000 mm
Platform material Aluminium ribbed plate
Anti-splay mechanism Rigid locking bar
Tread depth 80 mm
Transport dimensions approx. 3.830 mm × 773 mm × 210 mm
Height including railing 3.4 m
Stile depth steps/back stay 73mm / 58mm
Working height 4.34 m
Overall length 3.83 m
Storage tray aluminium
Number of rungs, incl. platform 9
Product type Flanged platform ladder with treads
Type of rungs/treads Safer Step
Weight 20.4 kg
Overall base width 0.8 m
Stile depth 73 mm
Stile depth 58 mm
Number of rungs / treads 9

Variants

Order number Height including railing Number of rungs, incl. platform Overall base width Overall length Platform height Transport dimensions Weight Working height
41672 1,53 m 2 0,59 m 1,87 m 0,53 m approx. 1.870 mm × 620 mm × 210 mm 10,6 kg 2,53 m
41681 1,79 m 3 0,62 m 2,15 m 0,79 m approx. 2.150 mm × 620 mm × 210 mm 11,8 kg 2,79 m
41674 2,06 m 4 0,65 m 2,43 m 1,06 m approx. 2.430 mm × 630 mm × 210 mm 13 kg 3,06 m
41675 2,32 m 5 0,68 m 2,71 m 1,32 m approx. 2.710 mm × 680 mm × 210 mm 14,4 kg 3,32 m
41676 2,6 m 6 0,71 m 2,99 m 1,58 m approx. 2.990 mm × 700 mm × 210 mm 16,1 kg 3,58 m
41677 2,87 m 7 0,74 m 3,27 m 1,85 m approx. 3.270 mm × 720 mm × 210 mm 17,4 kg 3,85 m
41678 3,13 m 8 0,77 m 3,55 m 2,11 m approx. 3.550 mm × 750 mm × 210 mm 19,1 kg 4,11 m
41679 3,4 m 9 0,8 m 3,83 m 2,34 m approx. 3.830 mm × 773 mm × 210 mm 20,4 kg 4,34 m
