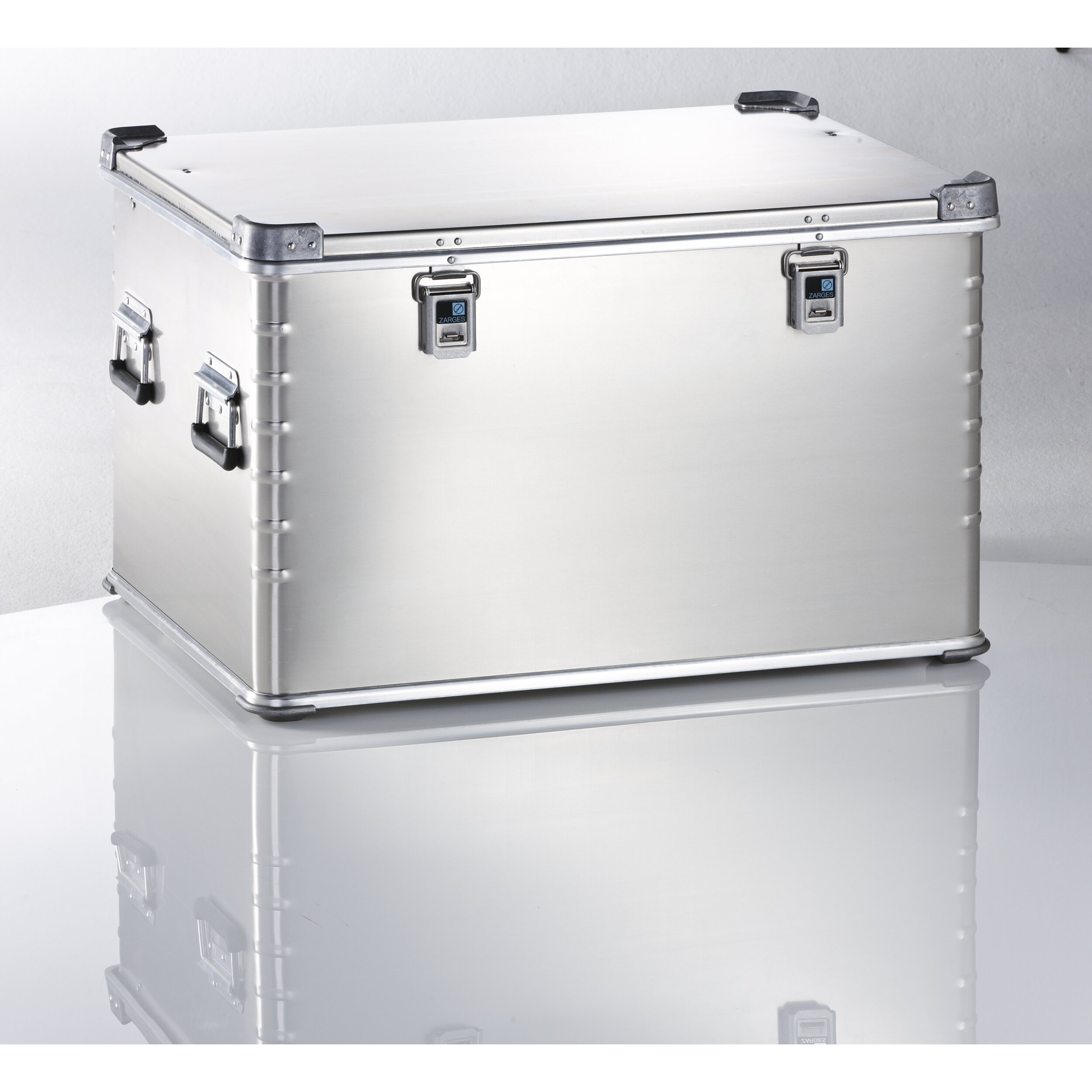

Y-container and SanPack

SKU: 45056

Details

Transport and storage container for military applications.

Continuously welded shell joints.
Sturdy 1.5 mm thick sheet metal
Sturdy base, edge and lid profile.
Hinged lid with peripheral seal.
Sturdy cast stacking corners on lid and base.
Stacking feet on base with attachment bores inside and outside.
The inside edges of the base are sealed with silicone to make the container waterproof up to the lower edge of the drop handle.
Equipped with snap fasteners with protection against accidental opening.
Ergonomic and durable Comfort fasteners that can last at least 20,000 use cycles.
The lid is removable on B 40.1 Y, B 40.2 Y and B 40Y.
Rated at IP 54 according to DIN EN 60 529 : 1992

Clearance dimensions approx. 30 mm less than inside dimensions (length and width). Special sizes on request.
UN approval for the transportation of hazardous goods possible at additional charge.

More Information
Version	B40 Y
Volume	433 l
Internal dimensions L x W x H	1.175 mm × 793 mm × 465 mm
Outside dimensions L x W x H	1.215 mm × 833 mm × 516 mm
Max. gross weight dangerous goods permission	137 kg
Weight	22 kg

Variants

Order number	Internal dimensions L x W x H	Max. gross weight dangerous goods permission	Outside dimensions L x W x H	Version	Volume	Weight
45051	380 mm × 265 mm × 220 mm	25 kg	420 mm × 305 mm × 270 mm	B5.2 Y	22 l	4,2 kg
45050	570 mm × 380 mm × 220 mm	32 kg	615 mm × 420 mm × 270 mm	B5 Y	47 l	6,4 kg
45052	570 mm × 380 mm × 466 mm	46 kg	615 mm × 420 mm × 516 mm	B10 Y	100 l	7,6 kg
45055	794 mm × 572 mm × 220 mm	46 kg	835 mm × 615 mm × 270 mm	B20.2 Y	99 l	11,4 kg
45053	794 mm × 572 mm × 466 mm	76 kg	835 mm × 615 mm × 516 mm	B20 Y	211 l	13,8 kg
45054	794 mm × 572 mm × 717 mm	107 kg	835 mm × 615 mm × 761 mm	B20.1 Y	325 l	17 kg
45058	1.175 mm × 793 mm × 220 mm	75 kg	1.215 mm × 833 mm × 270 mm	B40.2 Y	205 l	18 kg
45056	1.175 mm × 793 mm × 465 mm	137 kg	1.215 mm × 833 mm × 516 mm	B40 Y	433 l	22 kg
45057	1.175 mm × 793 mm × 717 mm	200 kg	1.215 mm × 833 mm × 761 mm	B40.1 Y	668 l	25,7 kg
