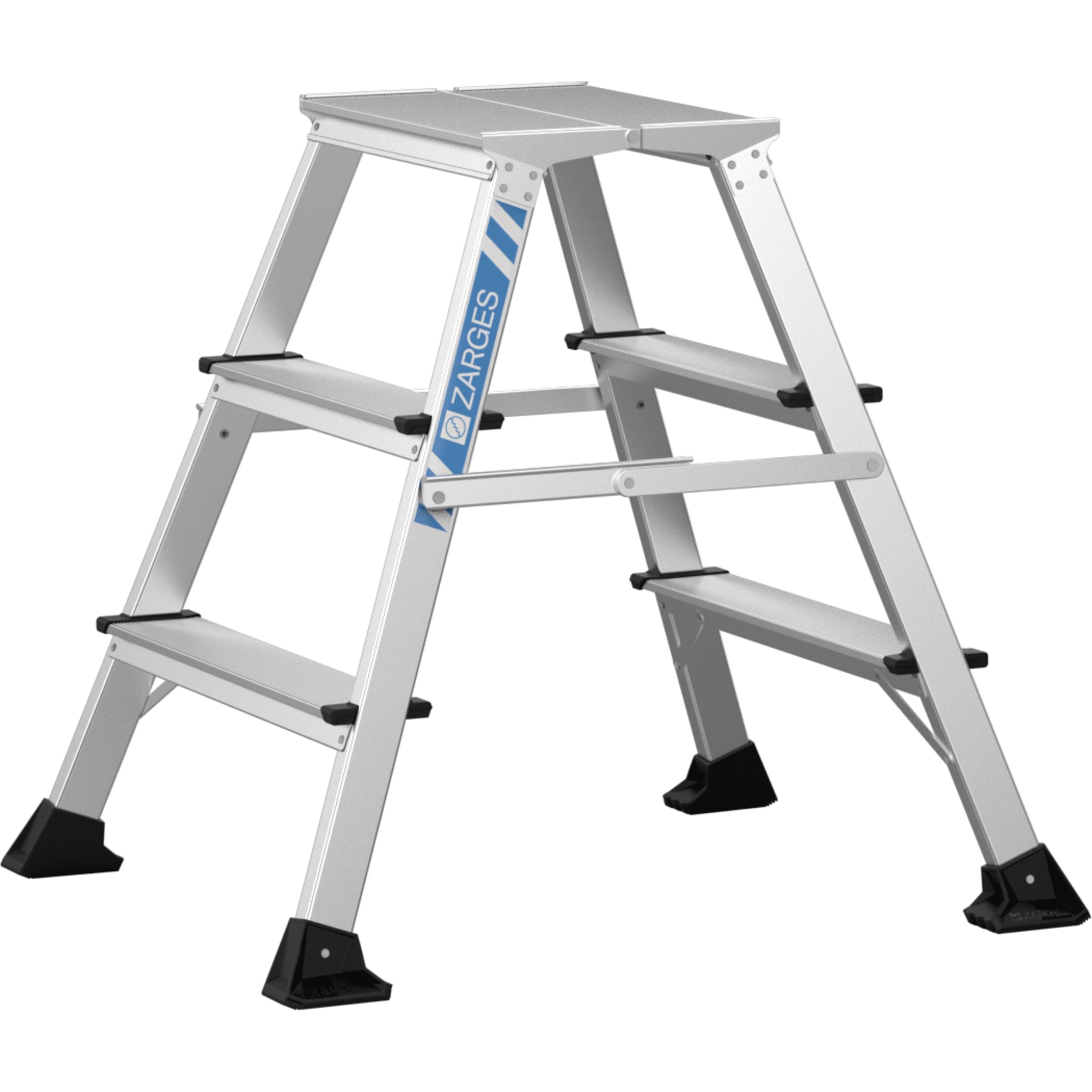

XLstep P

SKU: 40102

Details

Handy and robust work platform in a new design.
Platform size approx. 400 x 300 mm.
Extra-deep treads (92 mm) for comfortable and safe standing.

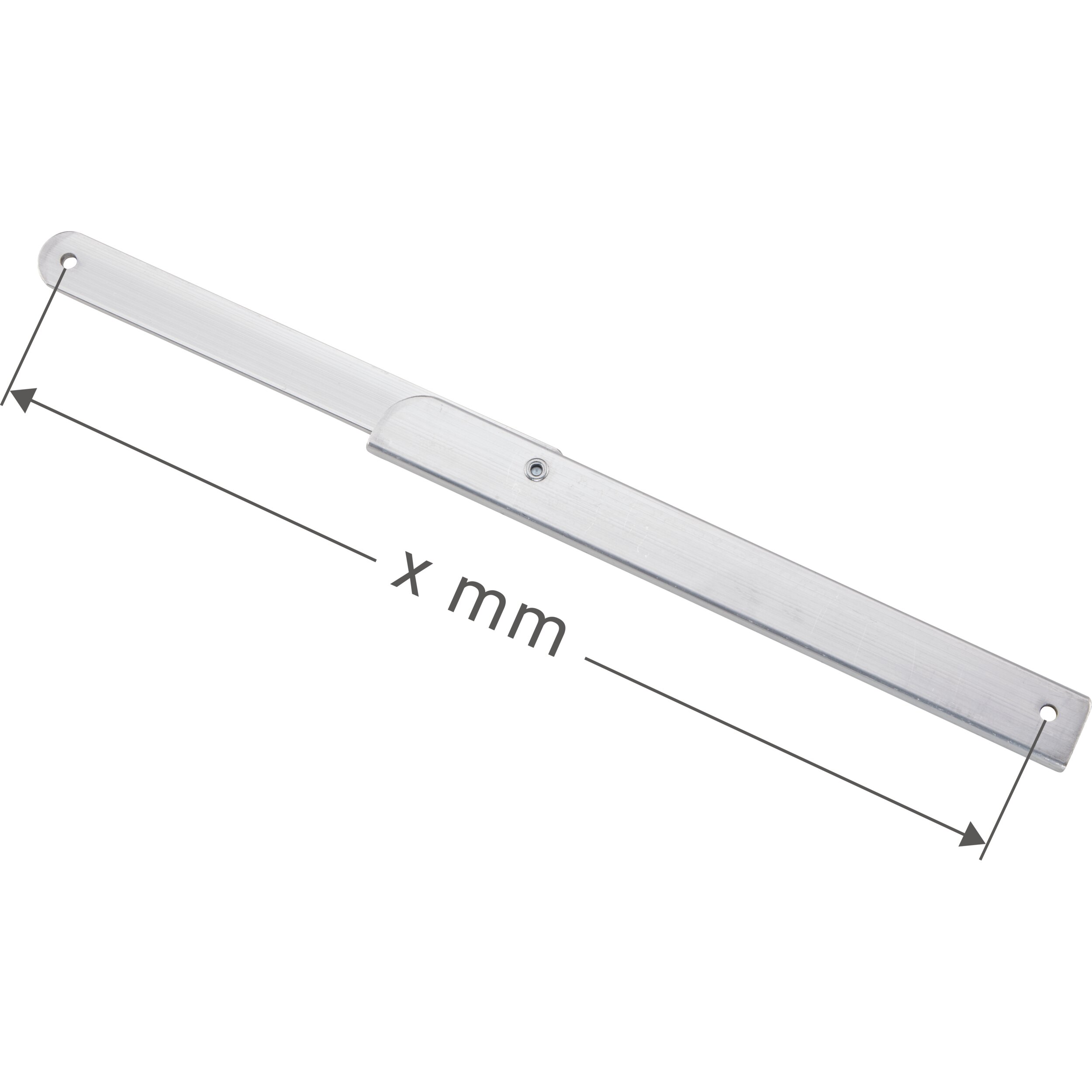

Optimum stability thanks to rigid locking bar on both sides.
Double-sided access.
Wear-resistant, anodised stiles.

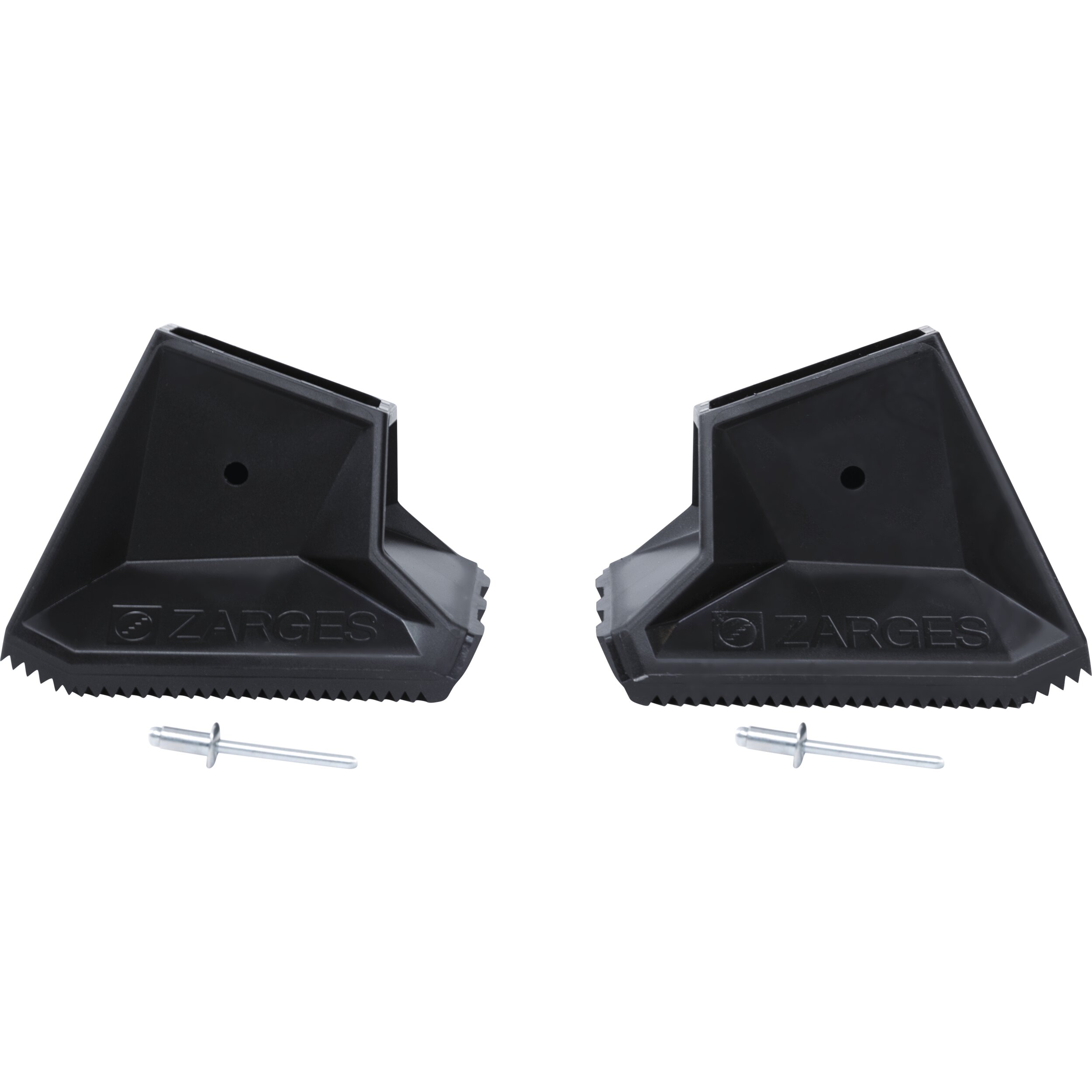

New design - high-quality 2-component plastic ladder shoe - also suitable for working on gratings.

More Information
Order number	40102
Load capacity	150 kg
Platform height	0.74 m
Platform length	300 mm
Warranty	10 years
Standards	EN 14183
Platform width	400 mm
Material	Anodised aluminium
Base	0,82 m × 0,68 m
Coating	anodised
Connection between stiles and rungs/stiles	riveted
Tread depth	92 mm
Transport dimensions	approx. 840 mm × approx. 680 mm × approx. 290 mm
Working height	2.74 m
Number of treads	3
Number of treads	2 × 3
Vertical distance between each rung/tread	250 mm
Product type	Work platform
Type of rungs/treads	serrated
Weight	6.1 kg
Overall base width	0.68 m
Stile depth	48 mm

Order number	Base	Number of treads	Number of treads	Overall base width	Platform height	Transport dimensions	Weight	Working height
40101	0,64 m × 0,6 m	2	2 × 2	0,6 m	0,49 m	approx. 580 mm × approx. 600 mm × approx. 290 mm	4,7 kg	2,49 m
40102	0,82 m × 0,68 m	3	2 × 3	0,68 m	0,74 m	approx. 840 mm × approx. 680 mm × approx. 290 mm	6,1 kg	2,74 m
40103	0,99 m × 0,76 m	4	2 × 4	0,76 m	0,99 m	approx. 1.105 mm × approx. 760 mm × approx. 290 mm	7,8 kg	2,99 m
