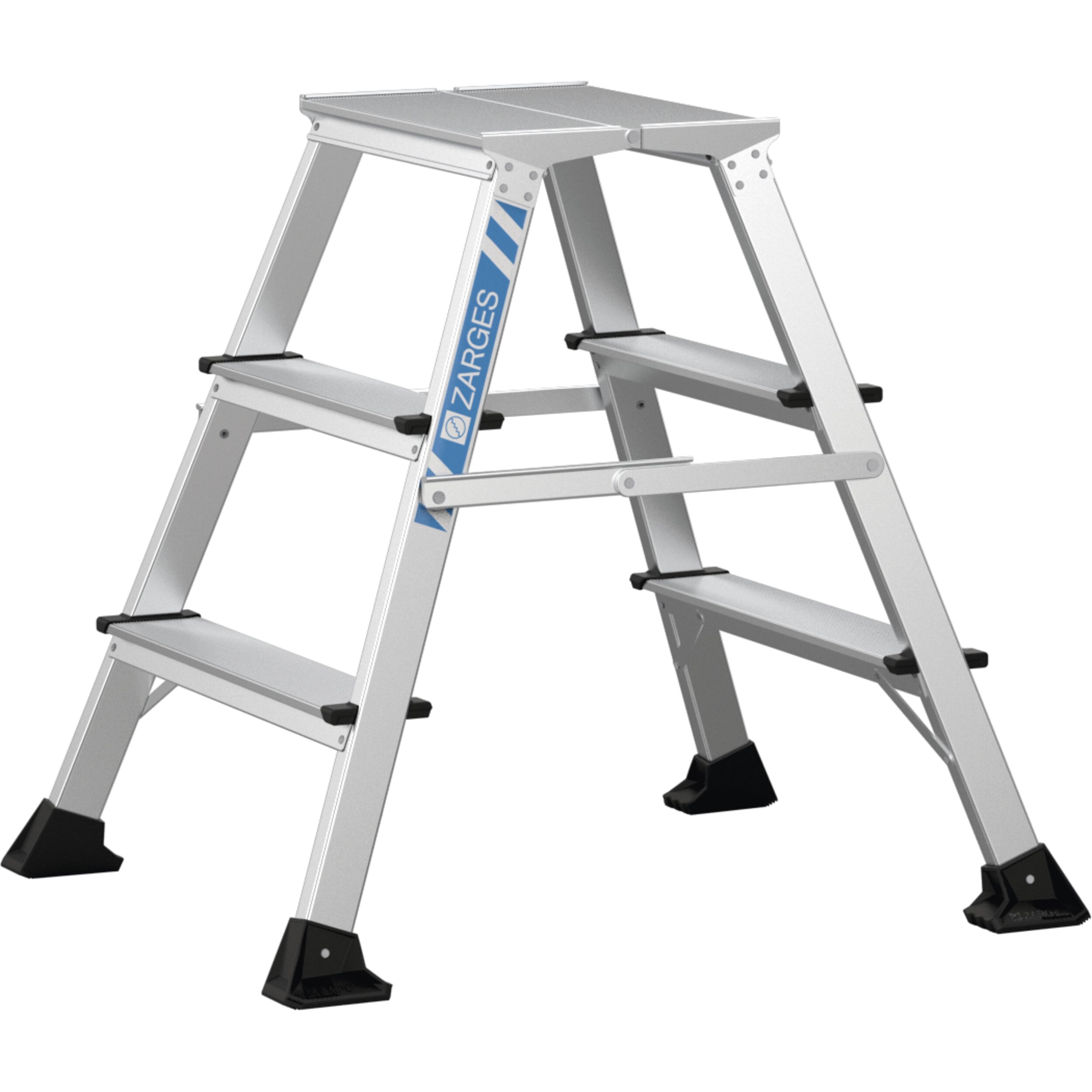

XLstep P

Details

Handy and robust work platform in a new design.
Platform size approx. 400 x 300 mm.
Extra-deep treads (92 mm) for comfortable and safe standing.
Optimum stability thanks to rigid locking bar on both sides.
Double-sided access.
Wear-resistant, anodised stiles.

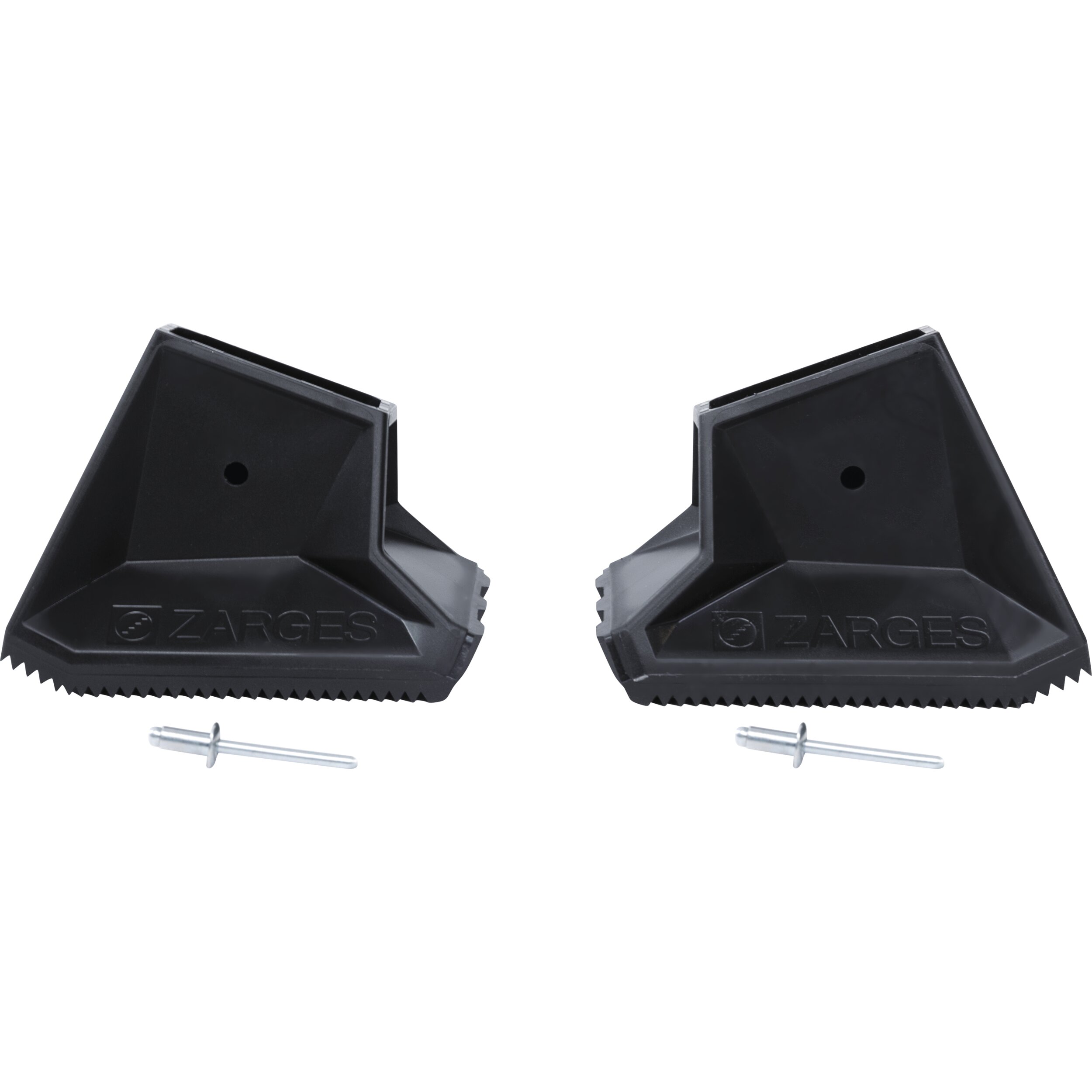

New design - high-quality 2-component plastic ladder shoe - also suitable for working on gratings.

More Information
Load capacity	150 kg
Platform length	300 mm
Warranty	10 years
Standards	EN 14183
Platform width	400 mm
Material	Anodised aluminium
Coating	anodised
Connection between stiles and rungs/stiles	riveted
Tread depth	92 mm
Vertical distance between each rung/tread	250 mm
Product type	Work platform
Type of rungs/treads	serrated

Order number	Base	Number of treads	Number of treads	Overall base width	Platform height	Transport dimensions	Weight	Working height
40101	0,64 m × 0,6 m	2	2 × 2	0,6 m	0,49 m	approx. 580 mm × approx. 600 mm × approx. 290 mm	4,7 kg	2,49 m
40102	0,82 m × 0,68 m	3	2 × 3	0,68 m	0,74 m	approx. 840 mm × approx. 680 mm × approx. 290 mm	6,1 kg	2,74 m
40103	0,99 m × 0,76 m	4	2 × 4	0,76 m	0,99 m	approx. 1.105 mm × approx. 760 mm × approx. 290 mm	7,8 kg	2,99 m
