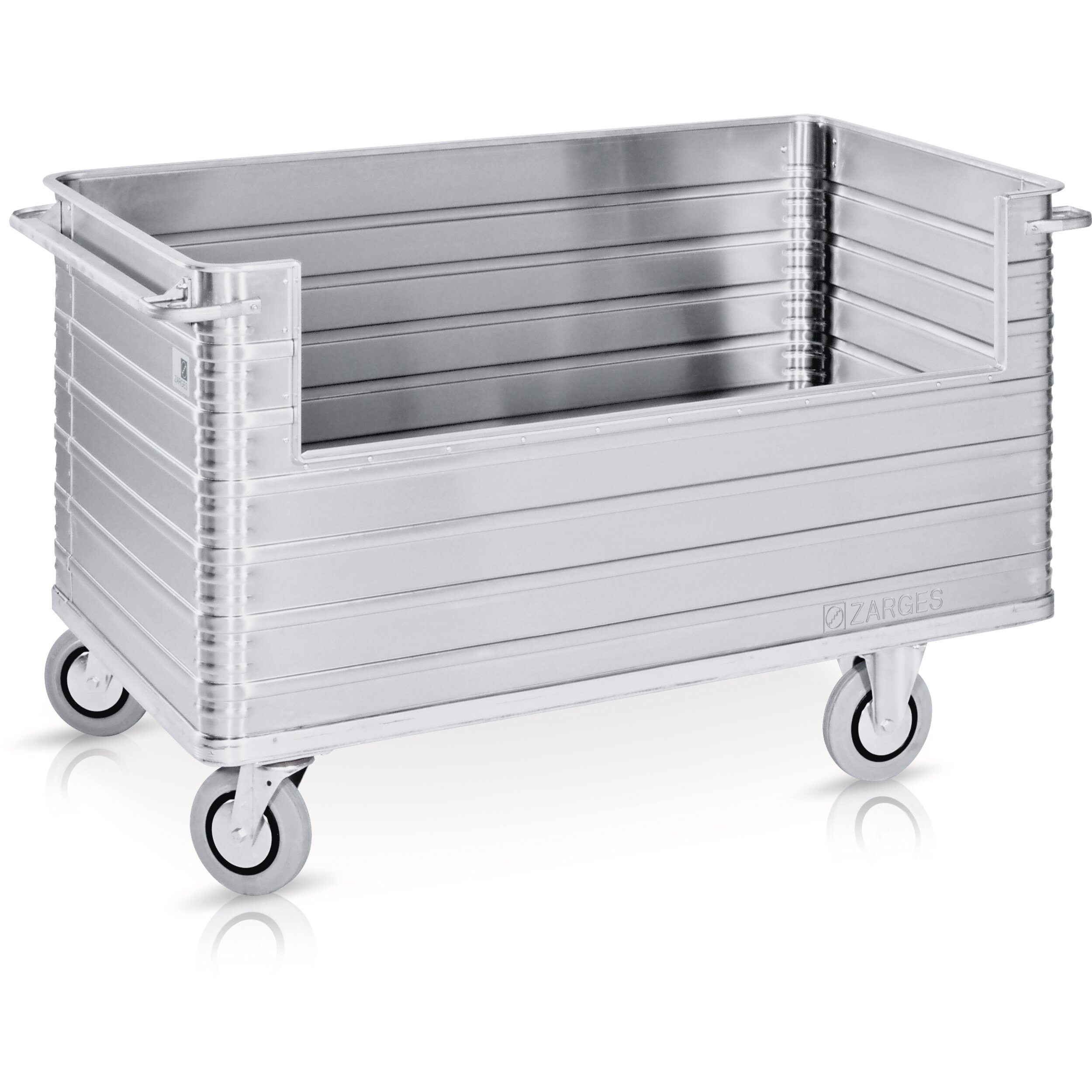

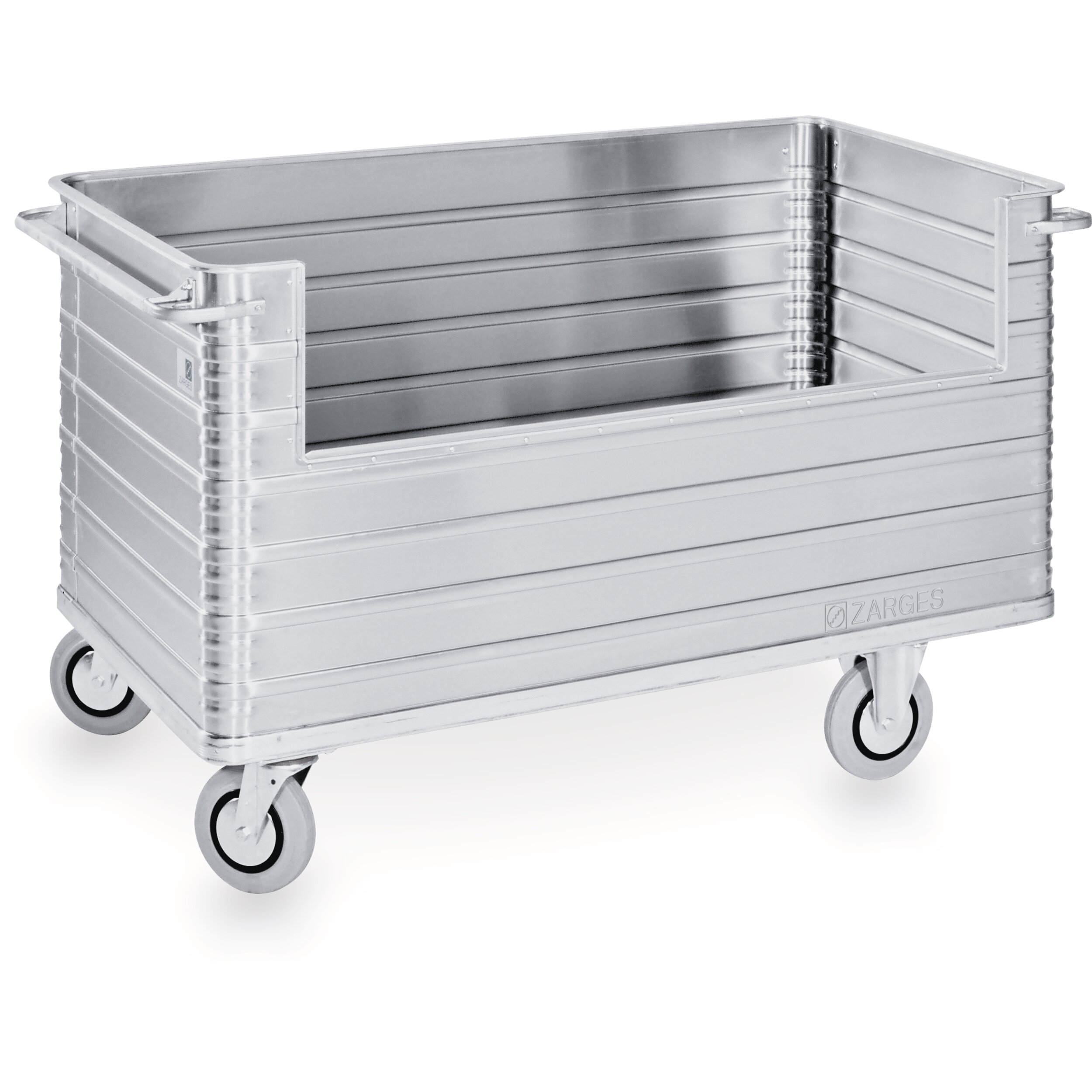

W 172 transport trolley

Details

Sturdy aluminium trolley for versatile use.

  • Sturdy aluminium trolley for a wide variety of applications.
  • Sturdy, generously dimensioned edge and base profile sections, high-strength positive locking ensures permanent bonding to side walls and base.
  • One of the long sides has a cut-out section measuring approx. 1,230 x 295 mm for convenient loading and unloading.
  • End and side walls reinforced with peripheral beading and corner beads.
  • One ergonomic handle at either end.
  • Sturdy, generously dimensioned edge and base profile sections, high-strength positive locking ensures permanent bonding to jacket and base metal.
  • One long side with cutout section, approx. 1,230 x 295 mm.
  • Container cutout with profile-section surround; profile-section joints continuously welded.
  • Chassis: 2 swivel and 2 fixed castors, corner-mounted, ∅ 200 mm, 40 mm wide; easy-running, non-marking rubber wheels with roller bearings and thread guards.

More Information

More Information
Corner beading
Formation Chassis 2 swivel and 2 fixed castors mounted at the corners
Material aluminium
Chassis arrangement can be changed
Wheel diameter 200 mm
Peripheral beads and corner beads

Variants

Order number Formation Chassis Internal dimensions L x W x H Material Outside dimensions L x W x H Peripheral beading Volume Weight Wheel diameter
40634 2 swivel and 2 fixed castors mounted at the corners 1.500 mm × 900 mm × 700 mm aluminium 1.650 mm × 950 mm × 980 mm Yes 945 l 37 kg 200 mm
