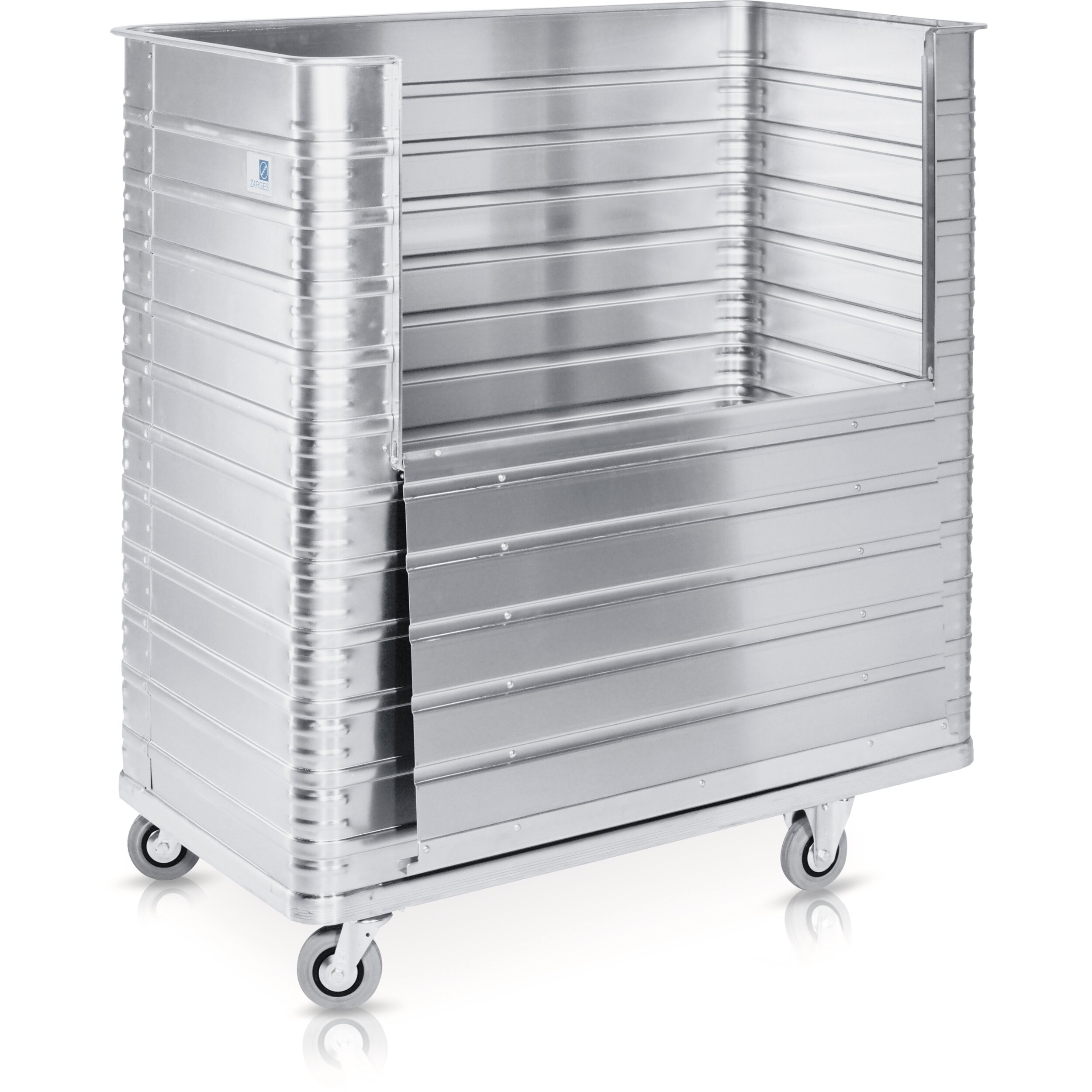

W 171 transport trolley with fold-down section and beading

Details

Sturdy transport solution with large flap for easy and ergonomic access to the contents of the trolley.

  • Sturdy transport solution with large flap for easy and ergonomic access to the contents of the trolley.
  • End and side walls reinforced with peripheral beading and corner beads.
  • Sturdy, generously dimensioned edge and base profile sections, high-strength positive locking ensures permanent bonding to jacket and base metal.
  • One long side folds down half-way for more convenient loading and unloading.
  • Container cutout with profile-section surround; profile-section joints continuously welded.
  • Flap with bolt retainer and moving holding hinges.
  • Chassis: 2 swivel and 2 fixed castors, corner-mounted, ∅ 125 mm; easy-running, non-marking rubber wheels with roller bearings and thread guards.

More Information

More Information
Corner beading
Formation Chassis 2 swivel and 2 fixed castors mounted at the corners
Material aluminium
Chassis arrangement can be changed
Wheel diameter 125 mm
Peripheral beads and corner beads

Variants

Order number Internal dimensions L x W x H Outside dimensions L x W x H Volume Weight
40633 900 mm × 500 mm × 780 mm 950 mm × 550 mm × 980 mm 350 l 18,5 kg
40674 1.250 mm × 700 mm × 1.200 mm 1.300 mm × 750 mm × 1.400 mm 1050 l 33 kg
