Spreader without lock, right

SKU: 800412

help-icon Help with option selection

How do I find the right spare part?

To select the right spare part, you need the exact length of the part you require for your ladder. This guide shows you how to measure the length of your spare part in order to select the right one.

  1. The length of the horizontal stabiliser bar is determined by the length of the horizontal stabiliser bar including the correctly mounted ladder end caps.
  2. Use a ruler, for example, to measure the total length of the horizontal stabiliser bar, including the correctly mounted ladder end caps.

  3. If you do not find a horizontal stabiliser bar with the right length in the ZARGES range, select the next longer horizontal stabiliser bar. As long as all other dimensions (e.g. distance between holes, drill diameter, outer dimension of stile, etc.) fit exactly, a longer horizontal stabiliser bar will also fit. Make sure that you do not select a shorter horizontal stabiliser bar, as this will impair the stability of your ladder.
  1. Die Länge der Spreizsicherung ergibt sich aus dem Abstand zwischen den Bohrungen bzw dem äußeren Ende der Laschen.
  2. Messen sie z.B. mit einem Zollstock den Abstand zwischen den Mittelpunkten der Bohrungen bzw. den Laschen an den beiden Enden der Spreizsicherung
  3. Wähen sie die passende Größe der Spreizsicherung aus
  1. The length of the horizontal stabiliser bar is determined by the length of the horizontal stabiliser bar including the correctly mounted ladder end caps.
  2. Use a ruler, for example, to measure the total length of the horizontal stabiliser bar, including the correctly mounted ladder end caps.

  3. If you do not find a horizontal stabiliser bar with the right length in the ZARGES range, select the next longer horizontal stabiliser bar. As long as all other dimensions (e.g. distance between holes, drill diameter, outer dimension of stile, etc.) fit exactly, a longer horizontal stabiliser bar will also fit. Make sure that you do not select a shorter horizontal stabiliser bar, as this will impair the stability of your ladder.

Do you need help with your selection?

Contact our spare parts experts in customer service!

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents

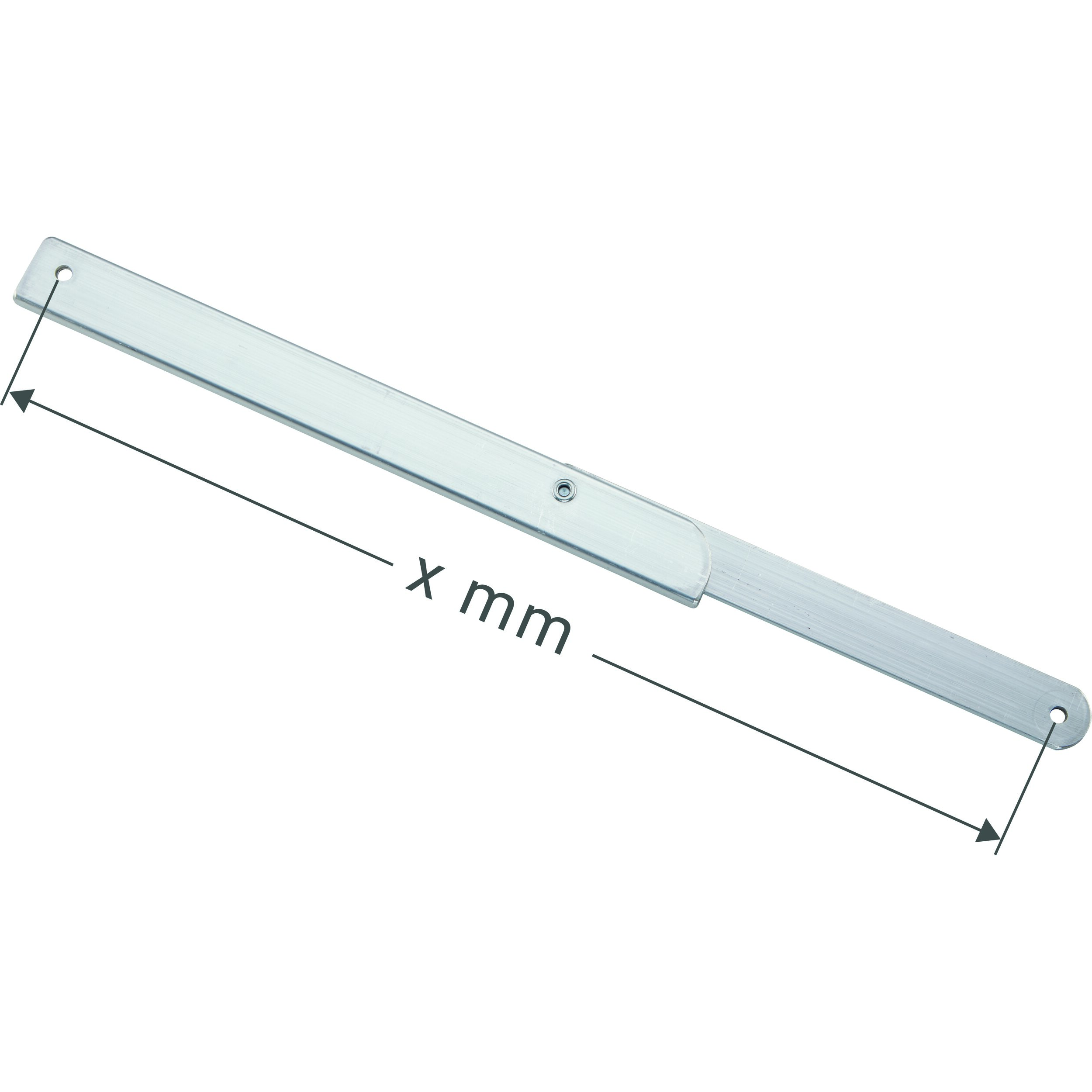

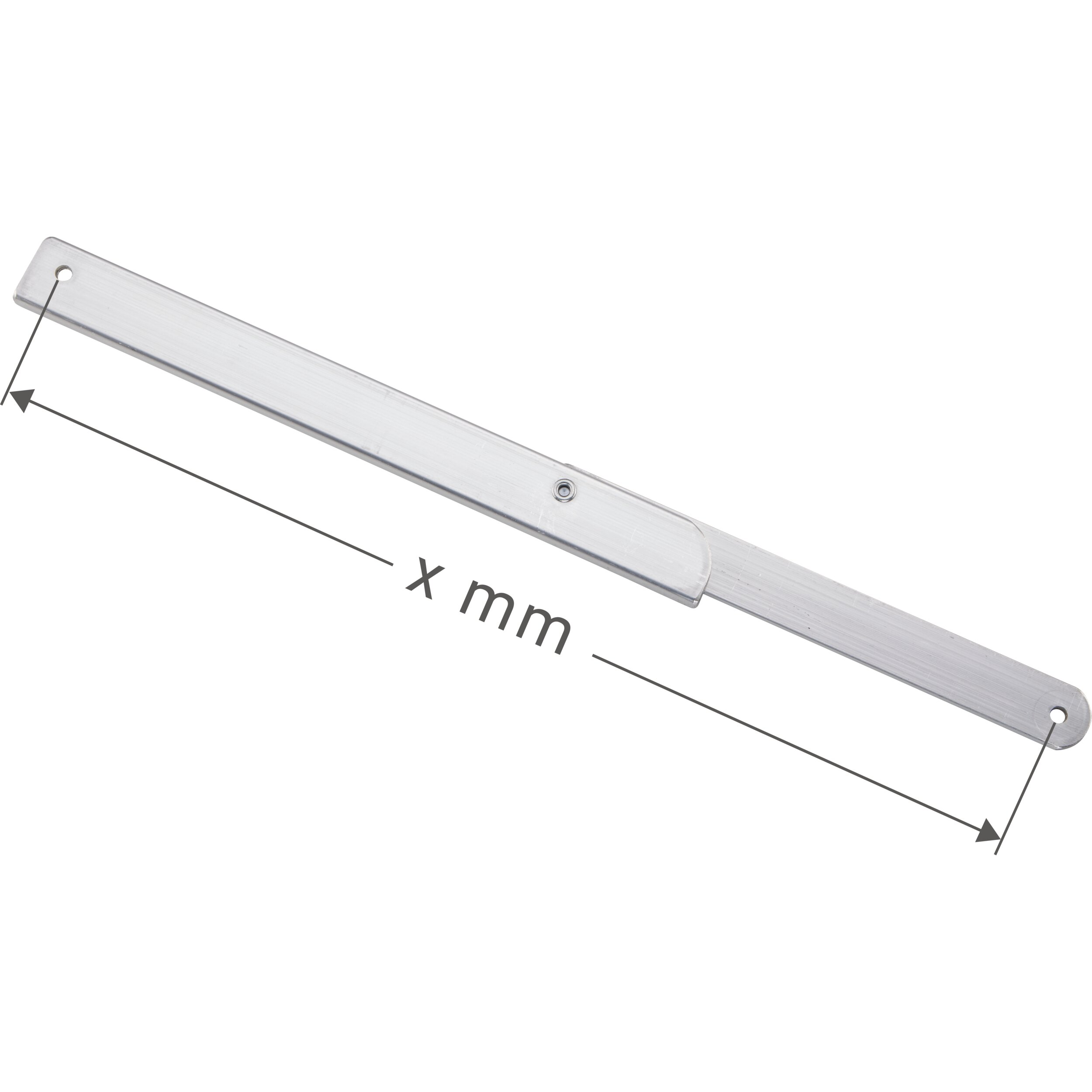

main product photo

Details

  • For Seventec stepladders and step stools.

More Information

More Information
Warranty Missing translation
Length 520 mm
Order number 800412

Variants

Order number Length
800401 422 mm
800476 439 mm
800412 520 mm
800405 559 mm
800407 717 mm
800409 854 mm
800397 874 mm
