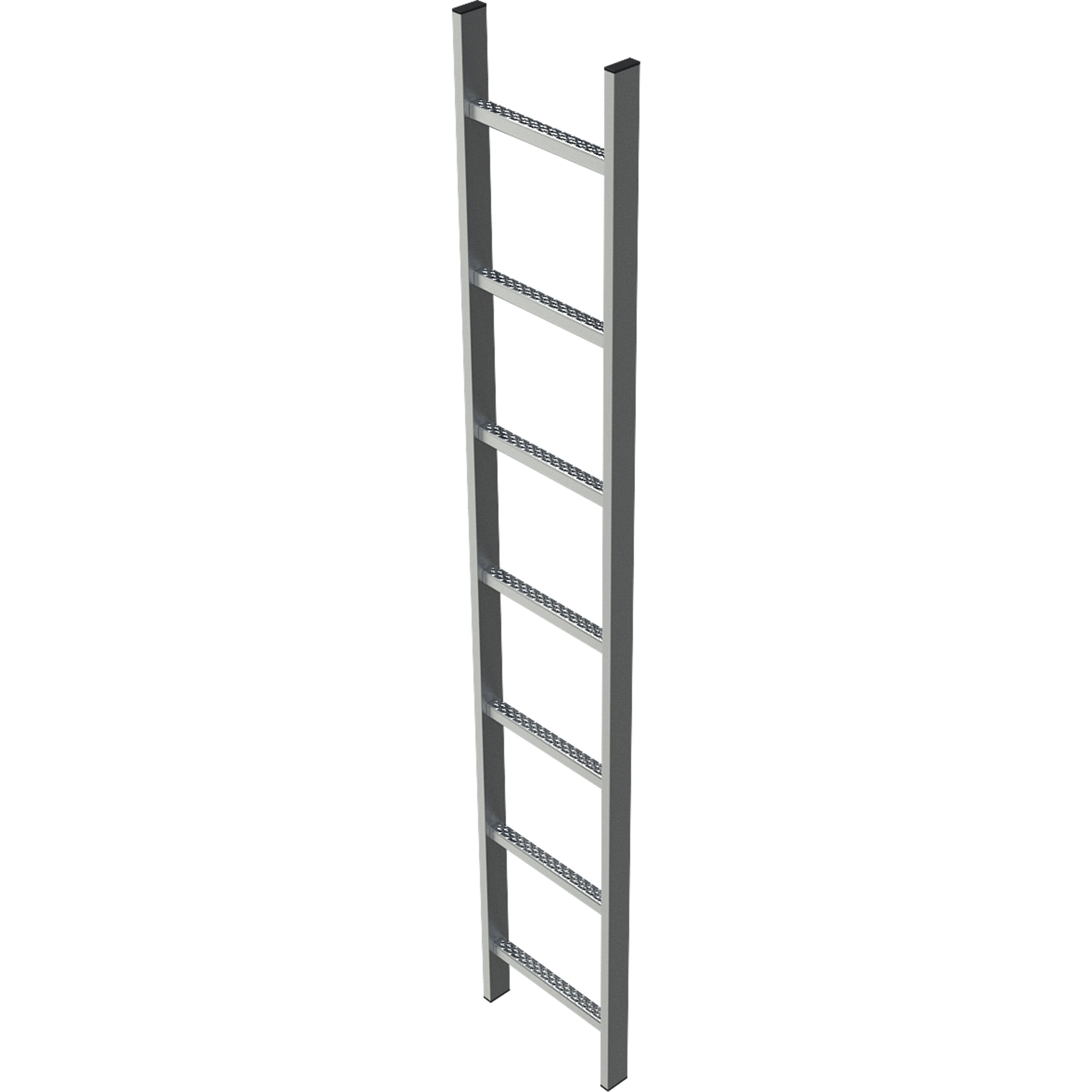

Shaft ladder, steel, internal width 300 mm

• Inside width of ladder: 300 mm.
• Outer width of ladder: 340 mm.
• Rung spacing: 280 mm.
• Stile dimensions: 50 × 20 mm.
• Dimensions of perforated rung: 29 x 29 mm.
• Material: hot-dip galvanised steel.

Hints and special features

• A fall arrester device is mandatory in the case of possible falling heights in excess of 5.00 m. From an internal width of 300 mm upwards, it is attached to the stile. From an internal width of 400 mm upwards, it is attached in centred position on the rungs.
• assembly combination for further lengths on request.
