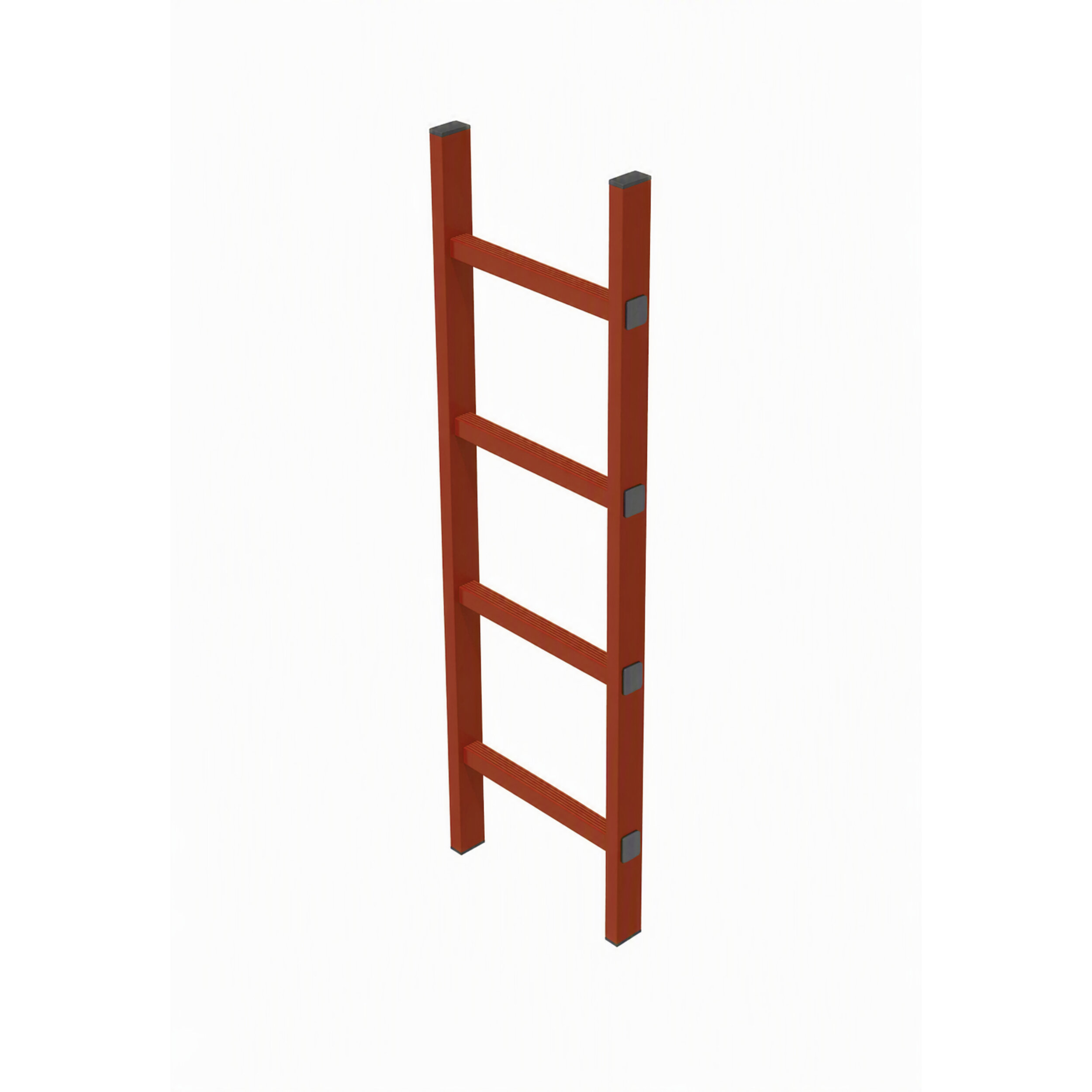

Shaft ladder, GRP, internal width 300 mm

SKU: 47361

Details

  • Inside width of ladder: 300 mm.
  • Outer width of ladder: 340 mm.
  • Rung spacing: 280 mm.
  • Dimensions of stile: 58 x 25 mm.
  • Dimensions of non-slip GRP rung: 30 x 30 mm.
  • Material: glass-fibre-reinforced plastic (GRP).

Hints and special features

  • A fall arrester device is mandatory in the case of possible falling heights in excess of 5.00 m. From an internal width of 300 mm upwards, it is attached to the stile. From an internal width of 400 mm upwards, it is attached in centred position on the rungs.
  • assembly combination for further lengths on request.

More Information

More Information
Warranty 10 years
Length 1.12 m
Material Glass-fibre reinforced plastic
Order number 47361
Tread depth 30 mm
Number of rungs 4
Vertical distance between each rung/tread 280 mm
Weight 2.9 kg
Ladder width 350 mm
Stile depth 58 mm
Number of rungs / treads 4

Variants

Order number Length Number of rungs Weight
47361 1,12 m 4 2,9 kg
47362 1,4 m 5 3,6 kg
47363 1,68 m 6 4,3 kg
47364 1,96 m 7 5 kg
47365 2,24 m 8 5,7 kg
47366 2,52 m 9 6,4 kg
47367 2,8 m 10 7,1 kg
47368 3,08 m 11 7,8 kg
47369 3,36 m 12 8,5 kg
47663 3,64 m 13 9,2 kg
47664 3,92 m 14 9,9 kg
47665 4,2 m 15 10,6 kg
