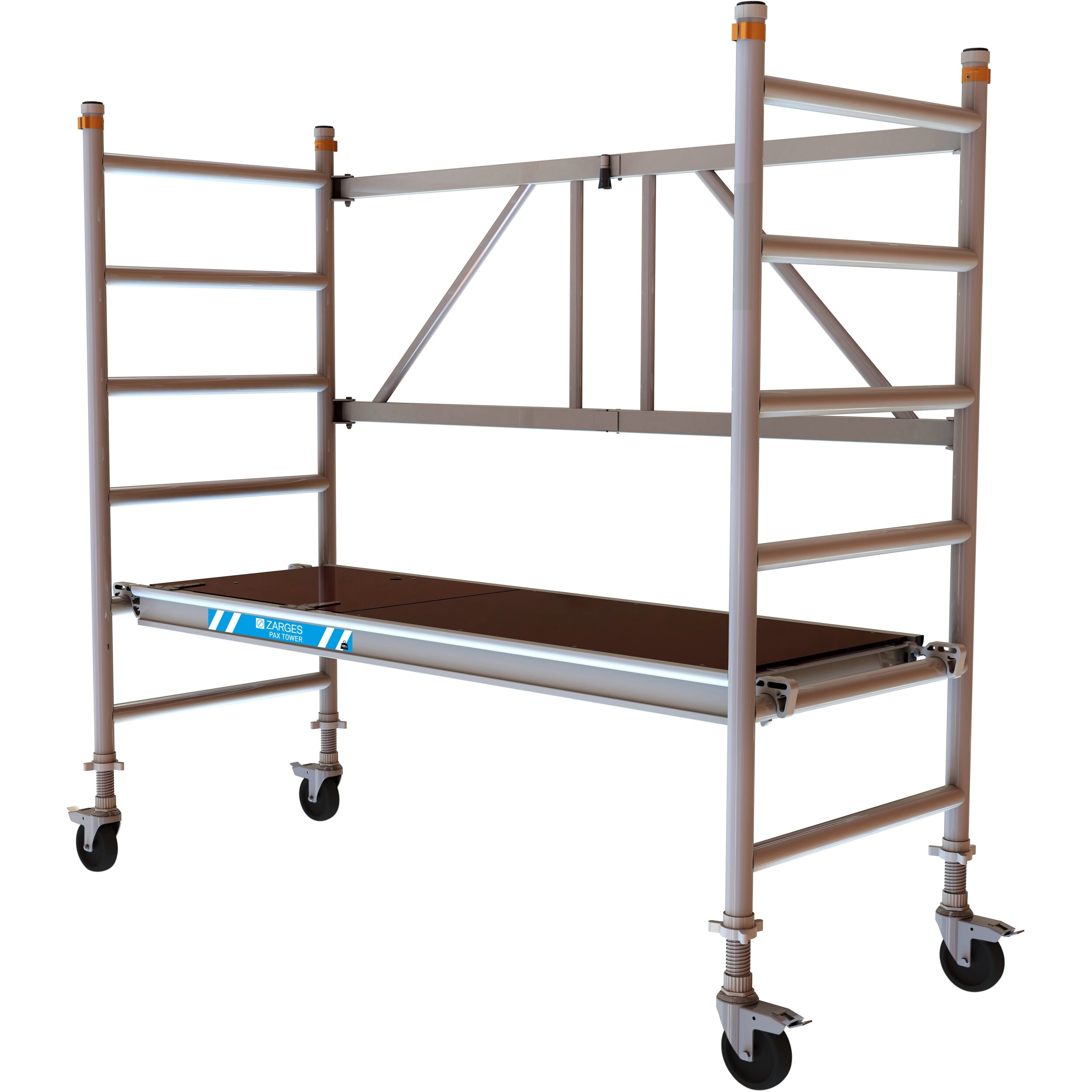

PaxTower 3T

SKU: 5535102

Details

Professional tower system available in modular packs to build the tower up to 5.6m platform height with quick and safe assembly - 2m build intervals between each tower size.This Through the Trapdoor (3T) tower fully complies to the latest EN 1004-1 safety standard.

  • Innovative toe board system with no clips – removes the need for toe board clips reducing the amount of loose components.
  • Smooth slot-in spigots to prevent tilting when the end frames join together.
  • One-piece fold out snap-frame with simple, one-handed lock and release operation, for quick and easy set up.

More Information

More Information
Warranty 10 years
Fits through doorways
Platform length 1.8 m
Platform width 0.6 m
Platform height 0.6 m
Order number 5535102
Rung diameter 45 mm
Stile diameter 45 mm
Claw type automatic
Scaffolding class 3
Wheel diameter 125 mm
Transport dimensions 1.900 mm × 750 mm × 500 mm
Overall height 1.6 m
Working height 2.6 m
Platform size 0,6m × 1,8m
Weight 29.1 kg

Variants

Order number Incl. stabilisers Incl. toeboards Overall height Platform height Transport dimensions Weight Working height
5535102 No No 1,6 m 0,6 m 1.900 mm × 750 mm × 500 mm 29,1 kg 2,6 m
5535212 Yes Yes 1,6 m 0,6 m approx. 2.200 mm × approx. 750 mm × approx. 550 mm 56,2 kg 2,6 m
5535122 Yes Yes 2,6 m 1,6 m approx. 2.200 mm × approx. 750 mm × approx. 650 mm 68,6 kg 3,6 m
5535142 Yes Yes 4,6 m 3,6 m approx. 2.200 mm × approx. 750 mm × approx. 850 mm 103 kg 5,6 m
5535162 Yes Yes 6,6 m 5,6 m approx. 2.200 mm × approx. 750 mm × approx. 1.050 mm 149 kg 7,6 m
