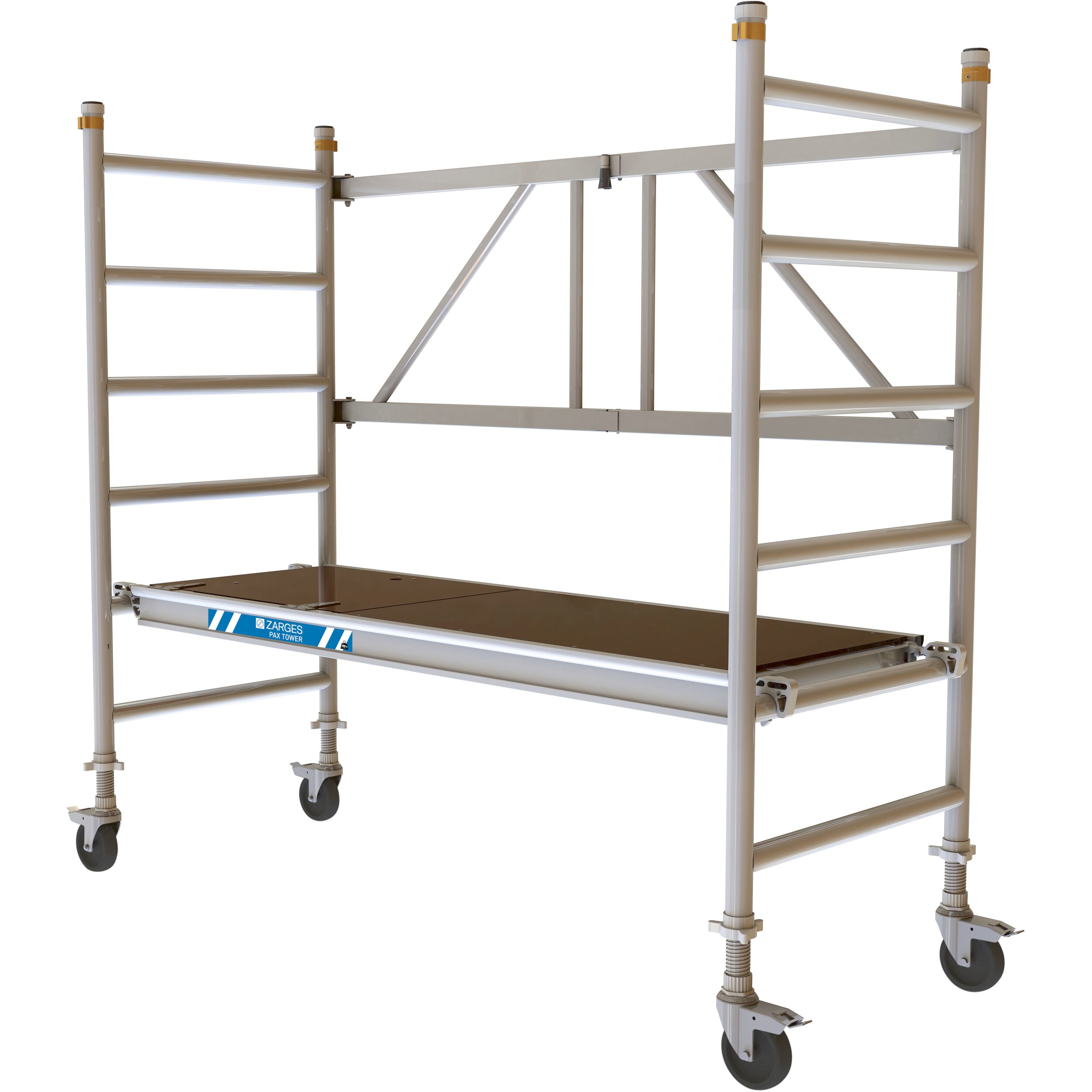

PaxTower 3T

Details

Professional tower system available in modular packs to build the tower up to 5.6m platform height with quick and safe assembly - 2m build intervals between each tower size.This Through the Trapdoor (3T) tower fully complies to the latest EN 1004-1 safety standard.

  • One-piece fold out snap-frame with simple, one-handed lock and release operation, for quick and easy set up.
  • Innovative toe board system with no clips – removes the need for toe board clips reducing the amount of loose components.

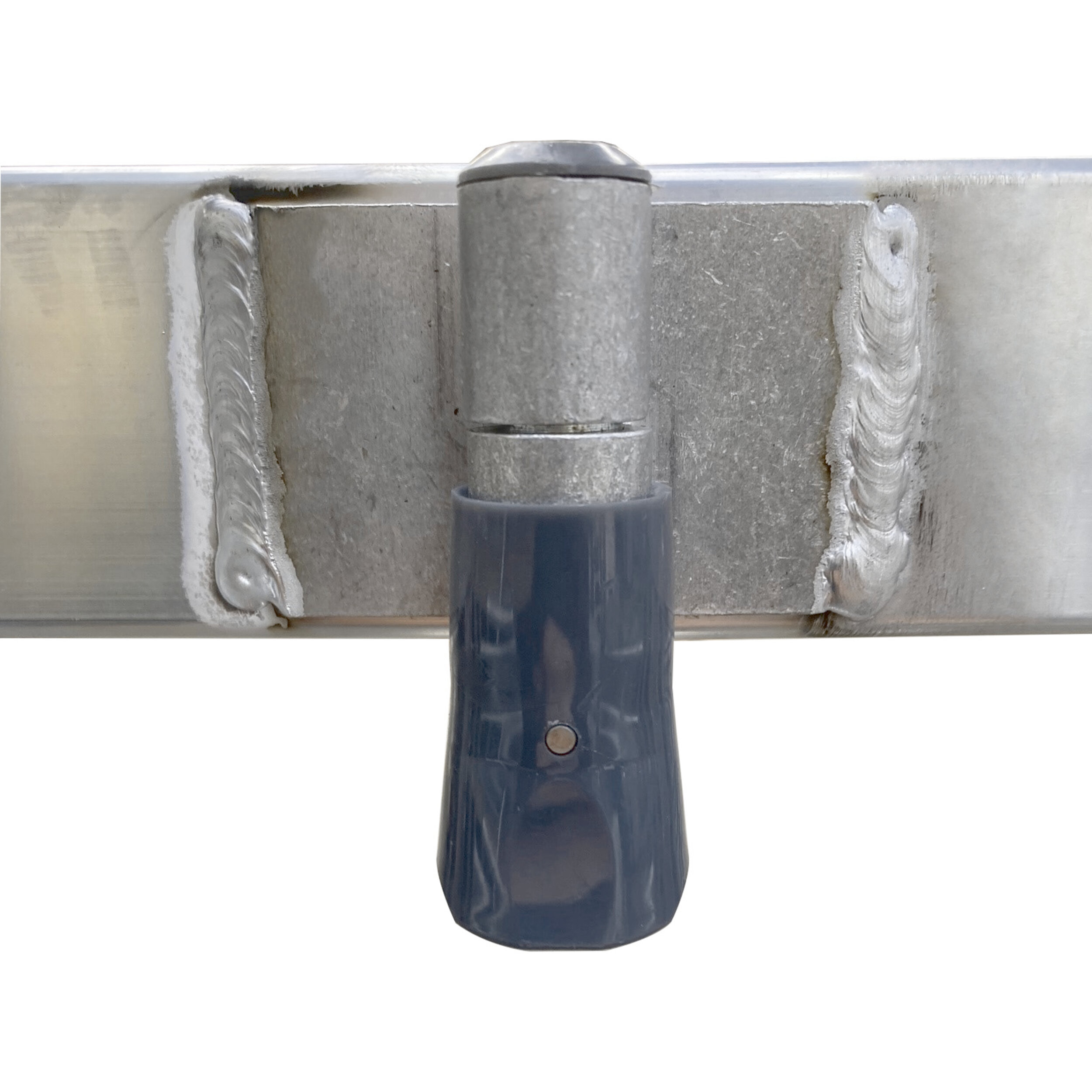

  • Smooth slot-in spigots to prevent tilting when the end frames join together.

More Information

More Information
Warranty 10 years

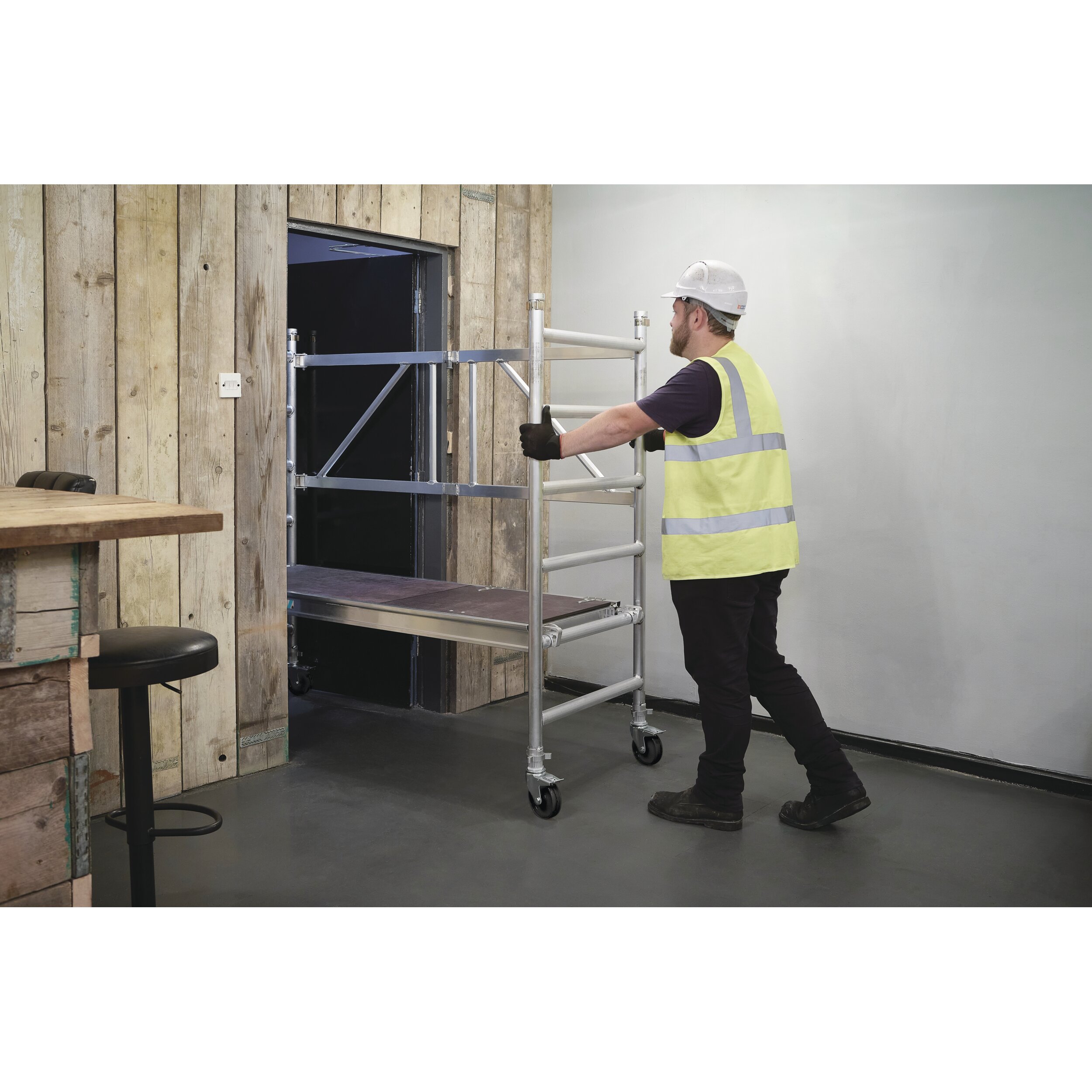

Fits through doorways
Platform length 1.8 m
Platform width 0.6 m
Rung diameter 45 mm
Stile diameter 45 mm
Claw type automatic
Platform size 0,6m1,8m

Variants

Order number Incl. stabilisers Incl. toeboards Overall height Platform height Transport dimensions Weight Working height
5535102 No No 1,6 m 0,6 m 1.900 mm × 750 mm × 500 mm 29,1 kg 2,6 m
5535212 Yes Yes 1,6 m 0,6 m approx. 2.200 mm × approx. 750 mm × approx. 550 mm 56,2 kg 2,6 m
5535122 Yes Yes 2,6 m 1,6 m approx. 2.200 mm × approx. 750 mm × approx. 650 mm 68,6 kg 3,6 m
5535142 Yes Yes 4,6 m 3,6 m approx. 2.200 mm × approx. 750 mm × approx. 850 mm 103 kg 5,6 m
5535162 Yes Yes 6,6 m 5,6 m approx. 2.200 mm × approx. 750 mm × approx. 1.050 mm 149 kg 7,6 m
