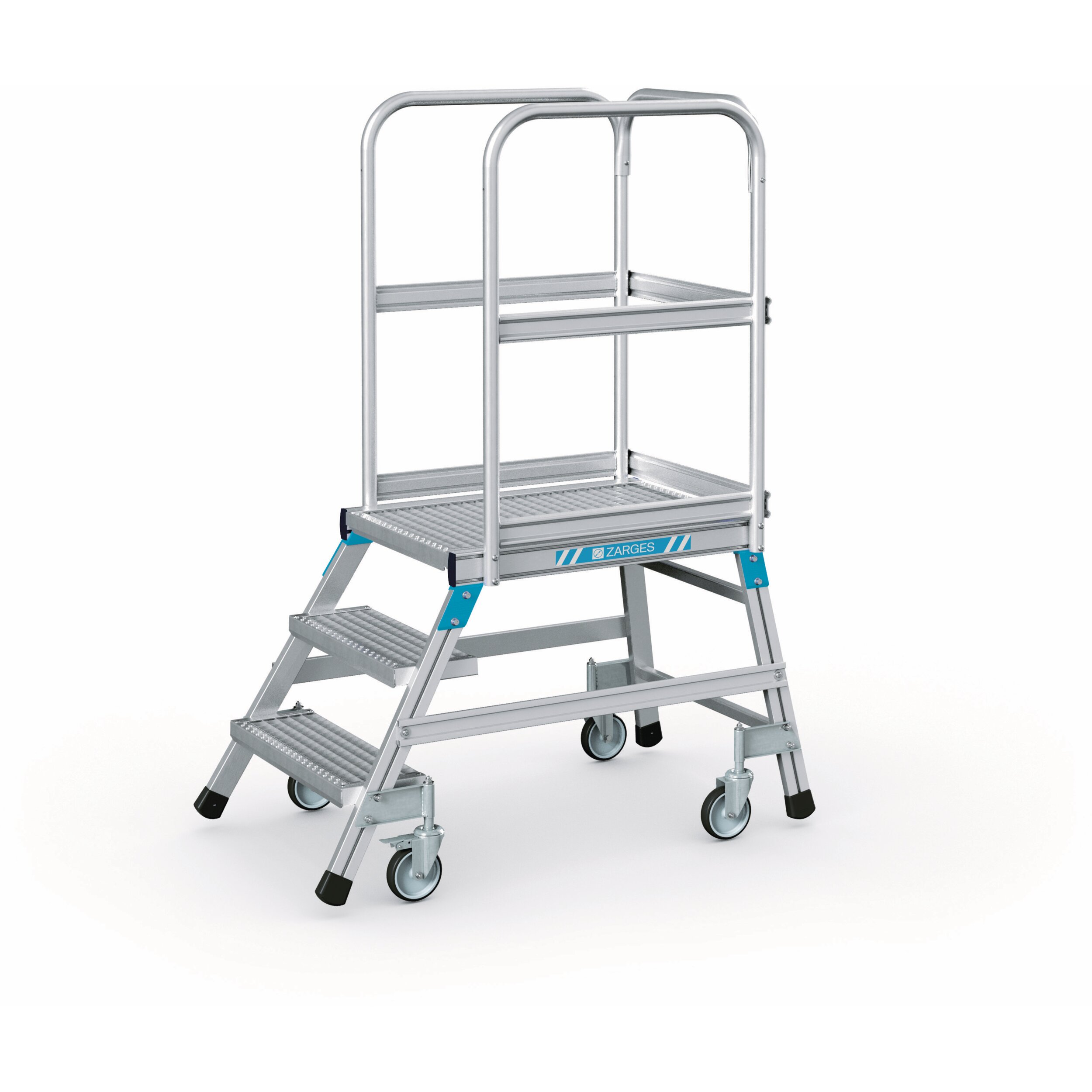

Mobile access steps with platform, single-sided access, with steel open-grid treads and platform

SKU: 41951

Details

The flexible access solution with open-grid treads for improved non-slip performance in wet-room applications.

The flexible access solution with open-grid treads for improved non-slip performance in wet-room applications.
Quick and easy assembly thanks to the new connecting elements.

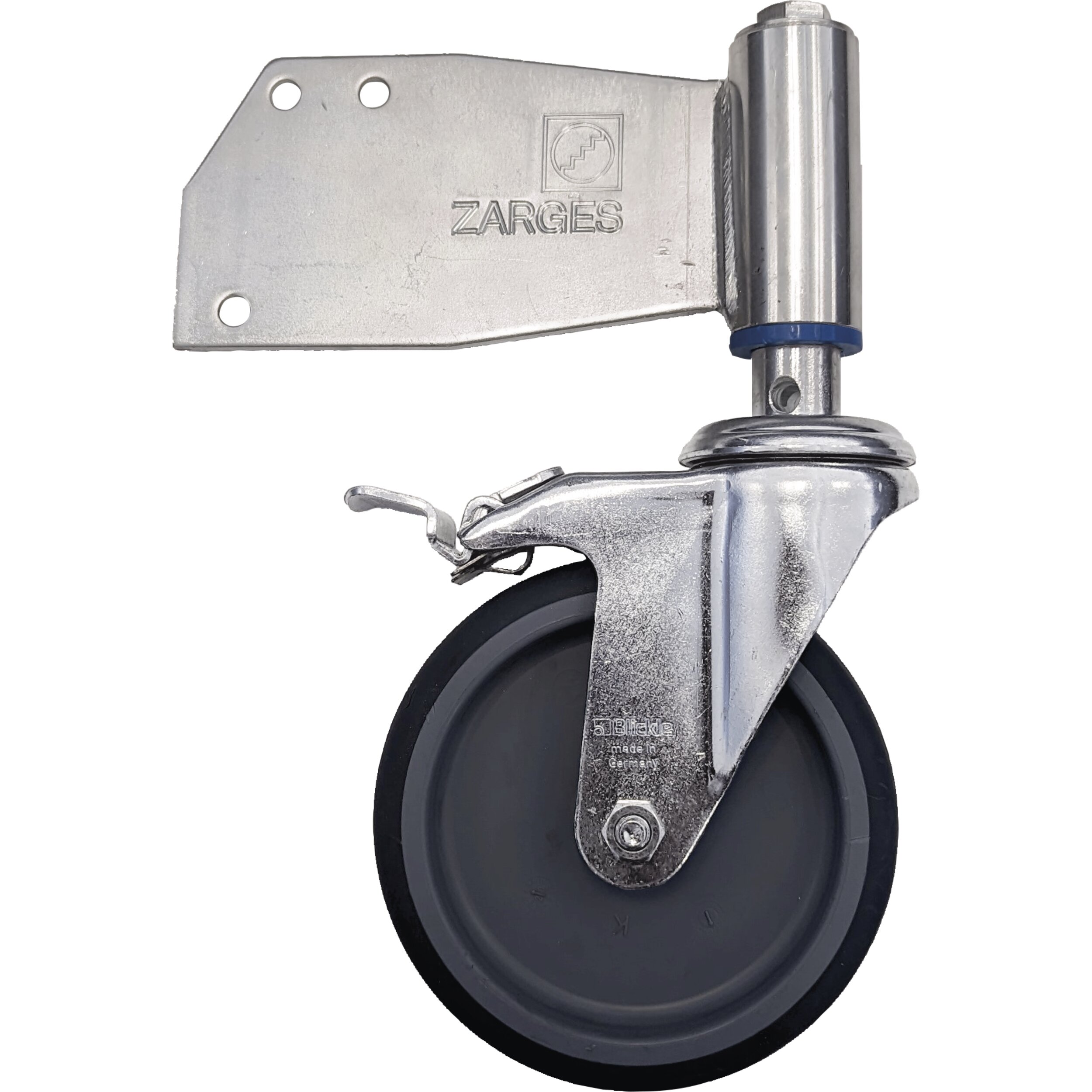

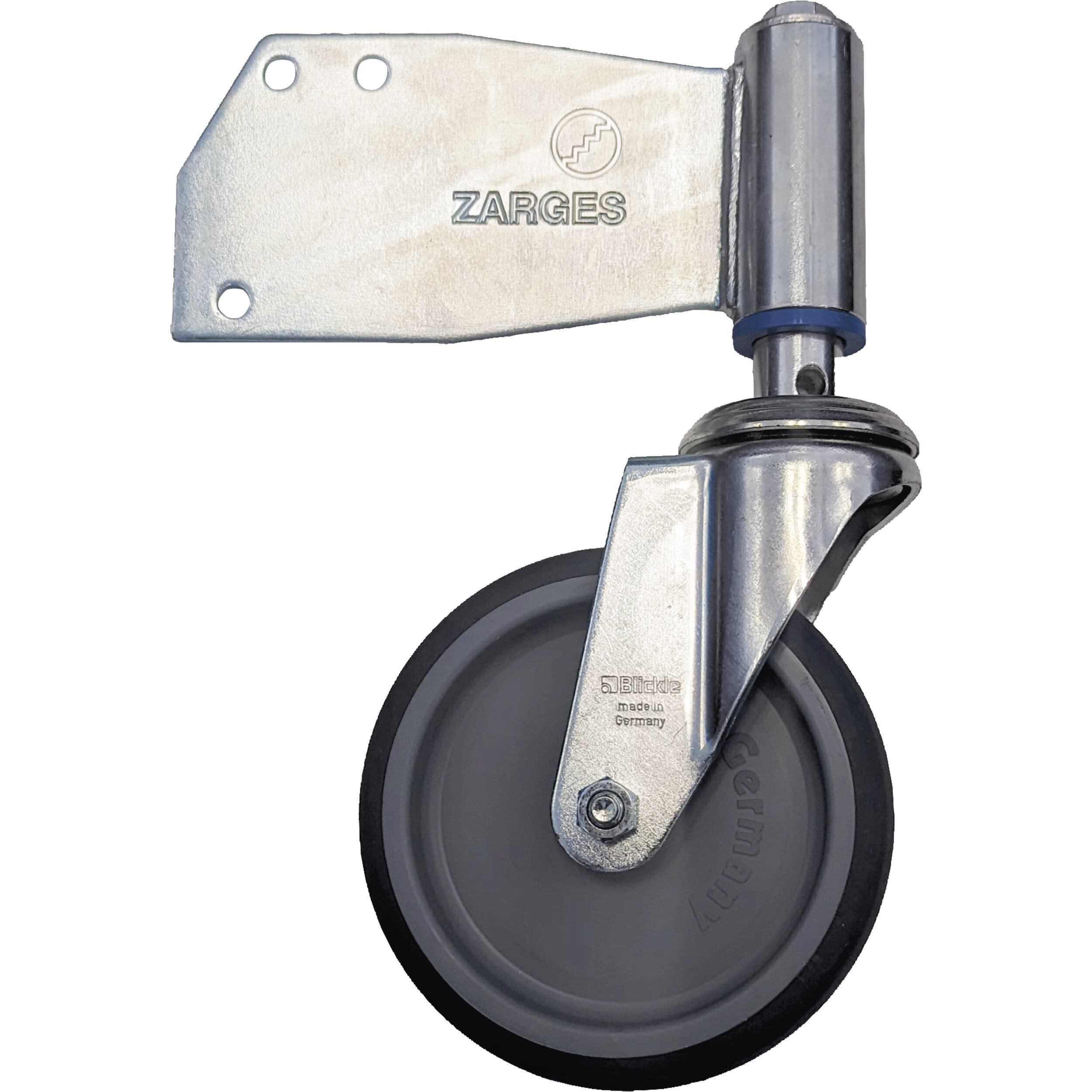

Mobile and quick to set up with four sprung swivel castors (two of which have brakes).
Maximum safety through platform guardrail at a height of 1.00 m on three sides.
Comfortable ascent thanks to 200 mm deep treads.
Large platform, 600 x 800 mm.
Maximum load 150 kg.

More Information
Platform height	0.72 m
Platform length	800 mm
Warranty	10 years
Standards	EN 131-7
Platform width	600 mm
Material	Aluminum/steel, galvanised
Load capacity	max. 150 kg
Guardrail height	1000 mm
Base	0,77 m × 1,27 m
Coating	natural
Connection between stiles and rungs/stiles	welded
Tread depth	200 mm
Transport dimensions	1.150 mm × 780 mm × 350 mm
Working height	2.7 m
Number of rungs, incl. platform	3
Vertical distance between each rung/tread	240 mm
Type of rungs/treads	Open-grid surface
Weight	41.5 kg
length-area-base-td-met	0.77 m
width-area-base-td-met	1.27 m
Number of rungs / treads	3

Variants

Order number	Base	Number of rungs, incl. platform	Platform height	Transport dimensions	Weight	Working height
41951	0,77 m × 1,27 m	3	0,72 m	1.150 mm × 780 mm × 350 mm	41,5 kg	2,7 m
41952	0,82 m × 1,45 m	4	0,96 m	1.350 mm × 830 mm × 410 mm	47,5 kg	2,95 m
41953	0,87 m × 1,63 m	5	1,2 m	1.500 mm × 890 mm × 410 mm	53,6 kg	3,2 m
41954	0,93 m × 1,81 m	6	1,44 m	1.820 mm × 930 mm × 350 mm	59,7 kg	3,45 m
41955	0,98 m × 1,99 m	7	1,68 m	1.920 mm × 990 mm × 350 mm	66 kg	3,7 m
41956	1,03 m × 2,17 m	8	1,92 m	2.220 mm × 1.130 mm × 350 mm	72,9 kg	3,9 m
