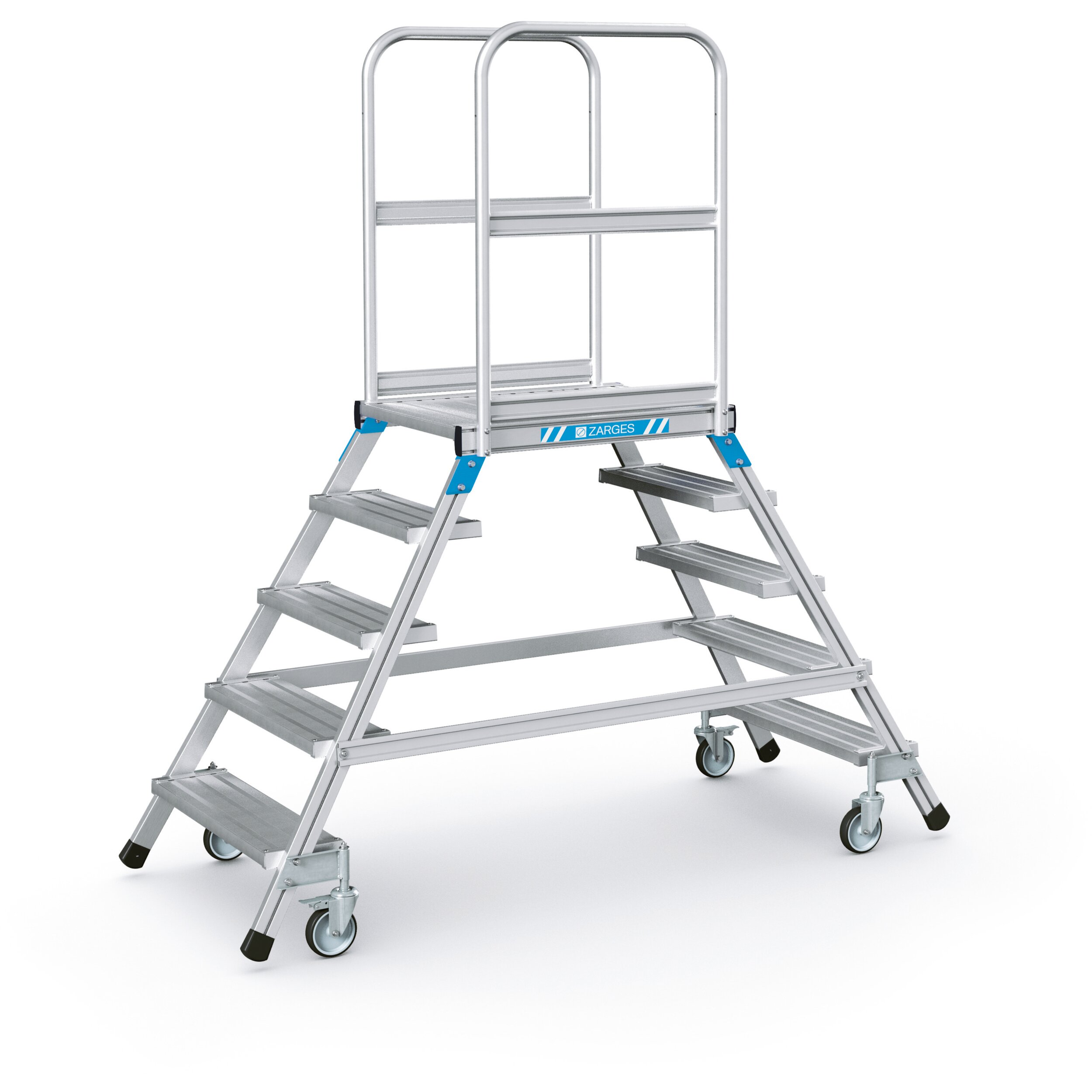

Mobile access steps with platform, double-sided access, with aluminium treads and platform

Details

Maximum flexibility while ascending and descending, larger working area on the treads and four sprung castors for a high degree of mobility and stability.

  • Maximum flexibility while ascending and descending, larger working area on the treads and four sprung castors for a high degree of mobility and stability.
  • Quick and easy assembly thanks to the new connecting elements.
  • Mobile and quick to set up with four sprung swivel castors (two of which have brakes).
  • Maximum safety through double-sided platform guardrail at a height of 1.00 m.
  • Comfortable ascent thanks to 200 mm deep treads.
  • Large platform, 600 x 800 mm.
  • Maximum load 150 kg.

Hints and special features

  • Optional double-sided handrail in compliance with DIN EN 131-7 on the steps.
  • Complies with EN 131-7

More Information

More Information
Standards EN 131-7
Warranty 10 years
Platform length 800 mm
Platform width 600 mm
Material aluminium
Load capacity max. 150 kg
Guardrail height 1000 mm
Coating natural
Connection between stiles and rungs/stiles welded
Tread depth 200 mm
Vertical distance between each rung/tread 240 mm
Type of rungs/treads serrated

Variants

Order number Base Number of rungs, incl. platform Number of treads Platform height Transport dimensions Weight Working height
41981 0,77 m × 1,51 m 2 × 3 3 0,72 m 1.300 mm × 820 mm × 470 mm 31,2 kg 2,7 m
41982 0,82 m × 1,79 m 2 × 4 4 0,96 m 1.980 mm × 880 mm × 300 mm 36 kg 2,95 m
41983 0,87 m × 2,06 m 2 × 5 5 1,2 m 1.850 mm × 940 mm × 440 mm 41 kg 3,2 m
41984 0,93 m × 2,34 m 2 × 6 6 1,44 m 2.200 mm × 1.020 mm × 410 mm 46,2 kg 3,45 m
41985 0,98 m × 2,62 m 2 × 7 7 1,68 m 2.250 mm × 1.060 mm × 410 mm 51,7 kg 3,7 m
41986 1,03 m × 2,9 m 2 × 8 8 1,92 m 2.820 mm × 1.120 mm × 410 mm 57,5 kg 3,9 m
