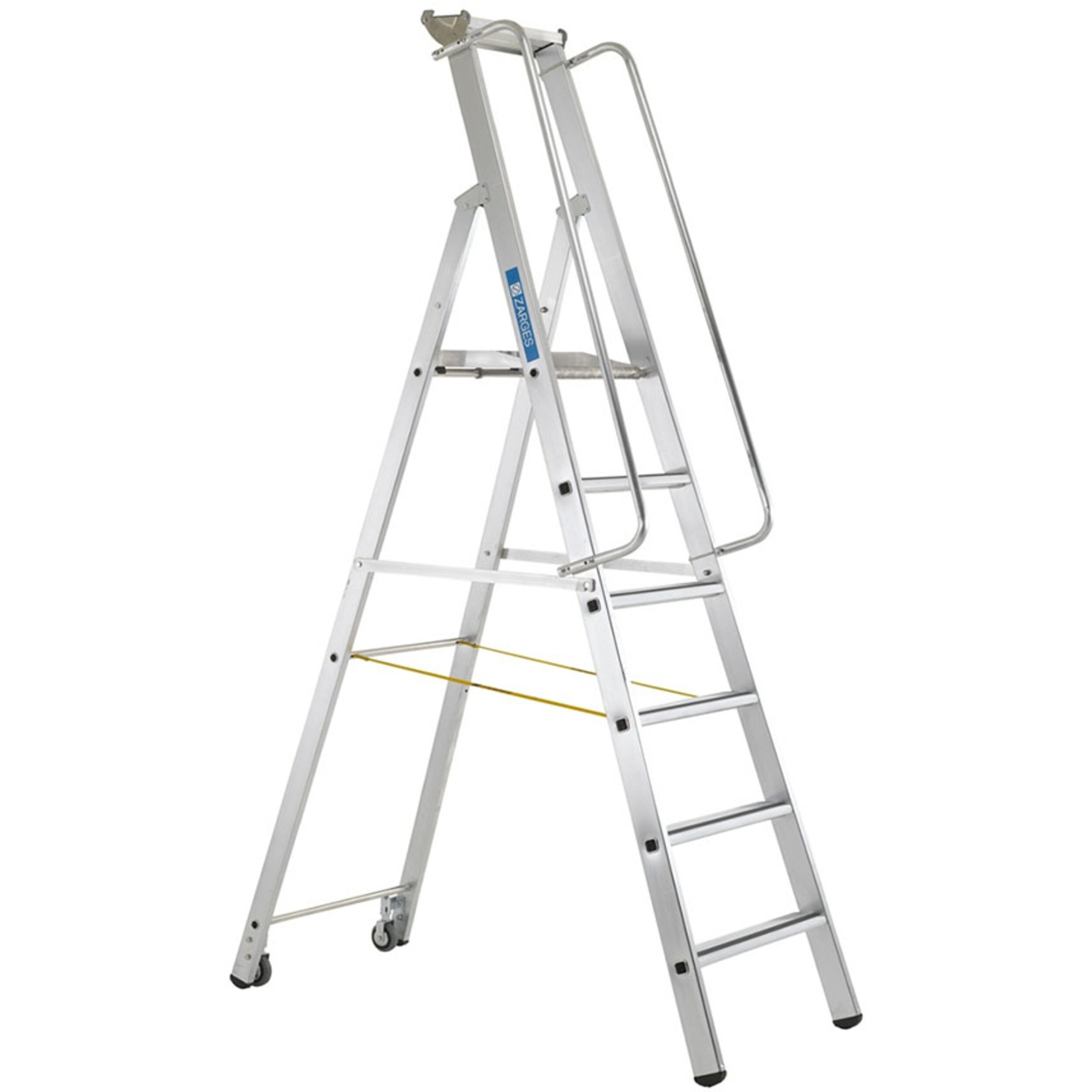

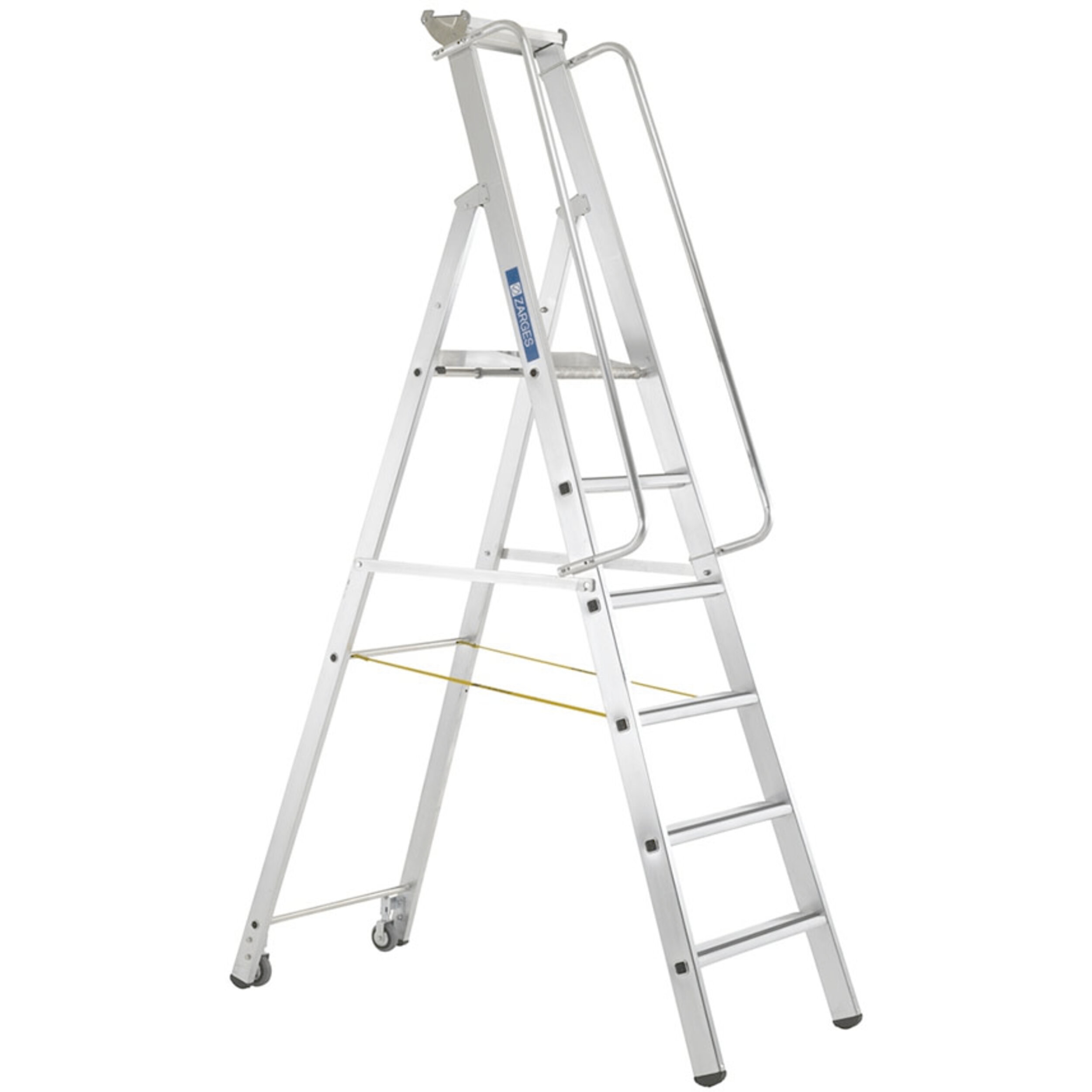

Stepladder with flanged treads, and large platform and storage tray

SKU: 340479

Details

Putting the roll into the Rolls Royce of stepladders - the ultimate in comfort and safety.

80 mm deep treads with ZARGES Safer Step Technology for fatigue-free standing.
Particularly large work platform with ribbed aluminium sheet lining (approx. 380 x 390 mm).
Practical aluminium storage tray for small items and tools.
With two handrails as standard for safe access.
High-strength Perlon straps prevent splay.
Height of the retaining bracket 1,000 mm.
Treads and stiles made from extruded aluminium sections.

More Information
Platform height	2.59 m
Platform length	250 mm
Warranty	10 years
Platform width	250 mm
Material	aluminium
Load capacity	max. 150 kg
Anti-splay mechanism	Belt strap
Base	2,11 m × 0,8 m
Coating	natural
Connection between stiles and rungs/stiles	flanged
Tread depth	80 mm
Transport dimensions	approx. 3.880 mm × 800 mm × 155 mm
Vertical ladder height	3.59 m
Stile depth steps/back stay	73mm / 58mm
Working height	4.6 m
Overall length	3.88 m
Storage tray	aluminium
Number of rungs, incl. platform	10
Vertical distance between each rung/tread	265 mm
Type of rungs/treads	Safer Step
Weight	20.3 kg
Overall base width	0.8 m
Stile depth	73 mm
Stile depth	58 mm
length-area-base-td-met	2.11 m
width-area-base-td-met	0.8 m
Number of rungs / treads	10

Order number	Base	Material	Number of rungs, incl. platform	Overall base width	Overall length	Platform height	Transport dimensions	Vertical distance between each rung/tread	Vertical ladder height	Working height
341632	0,91 m × 0,59 m		3	0,59 m	1,92 m	0,77 m	1.920 mm × 590 mm × 155 mm		1,77 m	2,8 m
341633	1,08 m × 0,62 m		4	0,62 m	2,2 m	1,03 m	2.200 mm × 620 mm × 155 mm		2,03 m	3 m
341634	1,26 m × 0,65 m		5	0,65 m	2,48 m	1,29 m	2.480 mm × 650 mm × 155 mm		2,29 m	3,3 m
340477	1,43 m × 0,68 m		6	0,68 m	2,75 m	1,55 m	2.750 mm × 680 mm × 155 mm		2,55 m	3,55 m
340478	1,76 m × 0,74 m		8	0,74 m	3,32 m	2,07 m	3.320 mm × 740 mm × 155 mm		3,07 m	4,1 m
340479	2,11 m × 0,8 m	aluminium	10	0,8 m	3,88 m	2,59 m	approx. 3.880 mm × 800 mm × 155 mm	265 mm	3,59 m	4,6 m
341635	2,46 m × 0,86 m		12	0,86 m	4,44 m	3,11 m	4.440 mm × 860 mm × 155 mm		4,11 m	5,1 m
