Meistertritt S

SKU: 40478

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents Spare parts and accessories

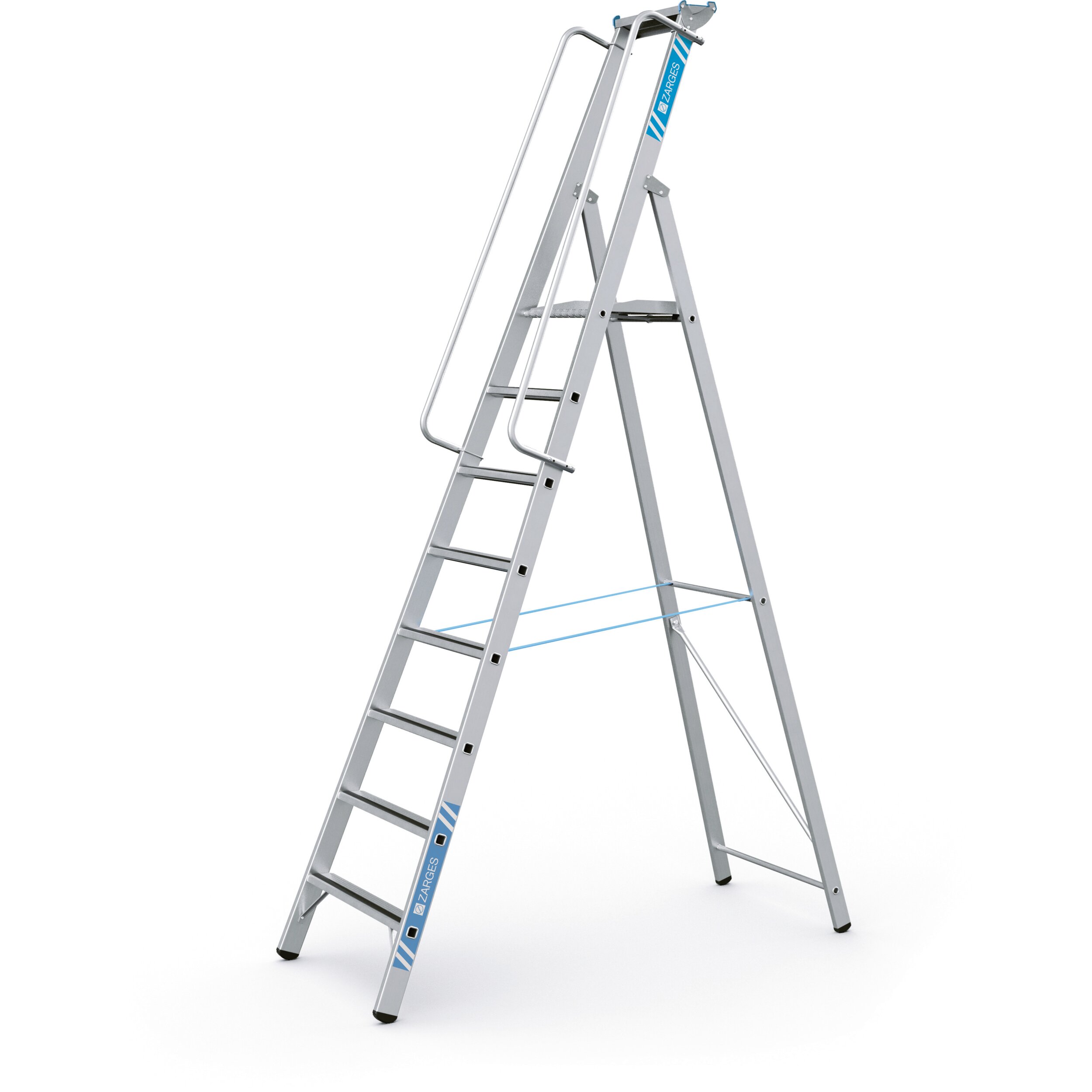

main product photo

Details

The Rolls Royce of stepladders - the ultimate in comfort and safety.

  • The Rolls Royce of stepladders - the ultimate in comfort and safety.
  • Particularly large work platform with ribbed aluminium sheet covering.
  • With two handrails as standard for safe access.
  • 80 mm deep treads with ZARGES Safer Step Technology for fatigue-free standing.
  • Particularly large work platform with ribbed aluminium sheet lining (approx. 380 x 390 mm).
  • Practical aluminium storage tray for small items and tools.

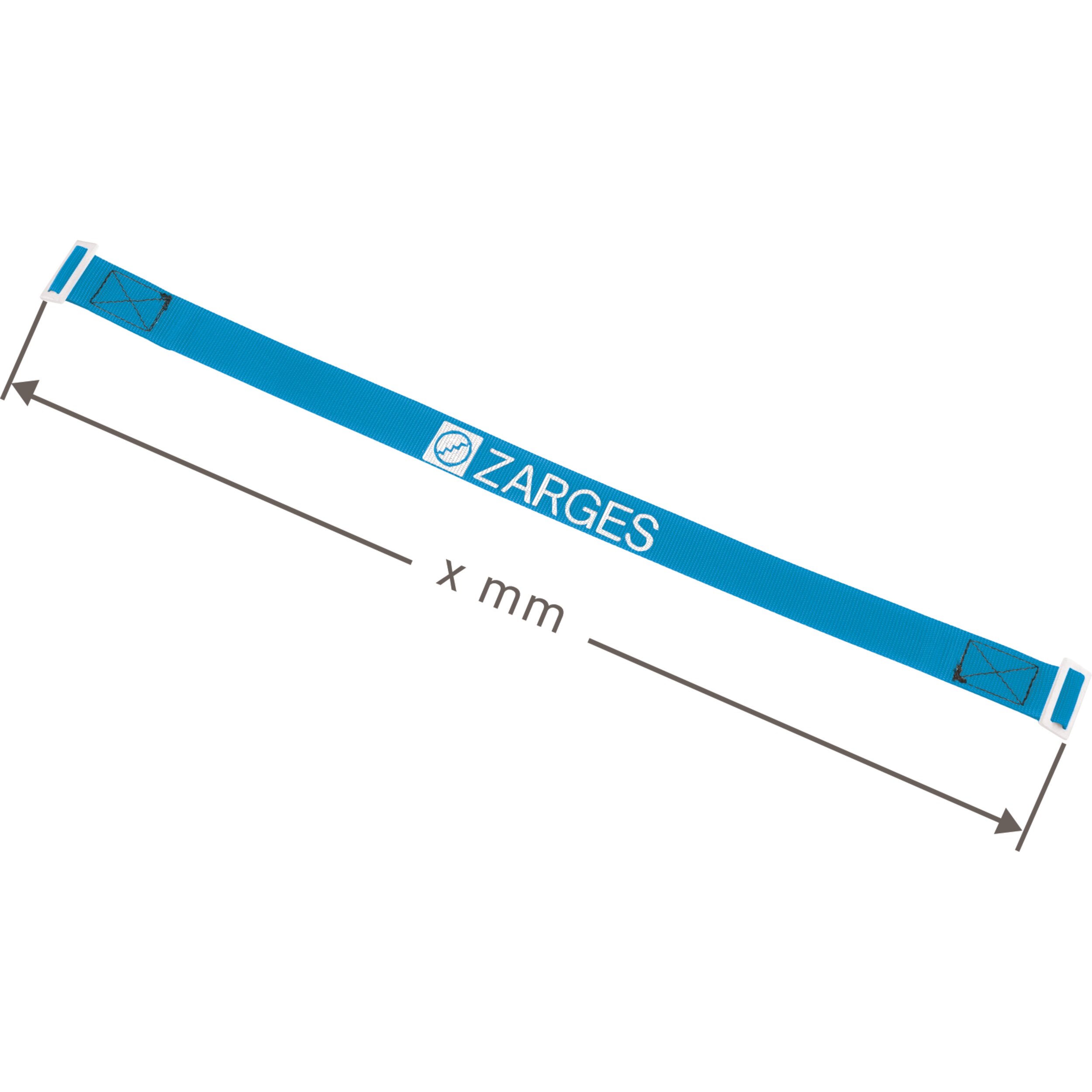

  • High-strength Perlon straps prevent splay.
  • Height of the retaining bracket 1,000 mm.
  • Treads and stiles made from extruded aluminium sections.

Hints and special features

  • Mobile version from 5 steps possible.
  • Complies with EN 131 Professional.

More Information

More Information
Platform height 2.07 m
Platform length 380 mm
Warranty 10 years
Standards EN 131 professional
Platform width 390 mm
Material aluminium
Load capacity max. 150 kg
Anti-splay mechanism Belt strap
Base 1,76 m × 0,74 m
Coating natural
Connection between stiles and rungs/stiles flanged
Tread depth 80 mm
Transport dimensions 3.320 mm × 740 mm × 155 mm
Vertical ladder height 3.07 m
Stile depth steps/back stay 73mm / 58mm
Working height 4.1 m
Overall length 3.32 m
Storage tray aluminium
Number of rungs, incl. platform 8
Vertical distance between each rung/tread 265 mm
Product type Stepladder with flanged treads
Type of rungs/treads Safer Step
Weight 16.7 kg
Overall base width 0.74 m
Stile depth 73 mm
Stile depth 58 mm
Number of rungs / treads 8

Variants

Order number Anti-splay mechanism Base Number of rungs, incl. platform Overall base width Overall length Platform height Transport dimensions Vertical ladder height Weight Working height
41632 0,91 m × 0,59 m 3 0,59 m 1,92 m 0,77 m 1.920 mm × 590 mm × 155 mm 1,77 m 9,5 kg 2,8 m
41633 1,08 m × 0,62 m 4 0,62 m 2,2 m 1,03 m 2.200 mm × 620 mm × 155 mm 2,03 m 10,7 kg 3 m
41634 Belt strap 1,26 m × 0,65 m 5 0,65 m 2,48 m 1,29 m 2.480 mm × 650 mm × 155 mm 2,29 m 12,1 kg 3,3 m
40477 Belt strap 1,43 m × 0,68 m 6 0,68 m 2,75 m 1,55 m 2.750 mm × 680 mm × 155 mm 2,55 m 13,8 kg 3,55 m
40478 Belt strap 1,76 m × 0,74 m 8 0,74 m 3,32 m 2,07 m 3.320 mm × 740 mm × 155 mm 3,07 m 16,7 kg 4,1 m
40479 Belt strap 2,11 m × 0,8 m 10 0,8 m 3,88 m 2,59 m approx. 3.880 mm × 800 mm × 155 mm 3,59 m 20,3 kg 4,6 m
41635 Belt strap 2,46 m × 0,86 m 12 0,86 m 4,44 m 3,11 m 4.440 mm × 860 mm × 155 mm 4,11 m 23,3 kg 5,1 m
