Meistertritt S

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents Spare parts and accessories

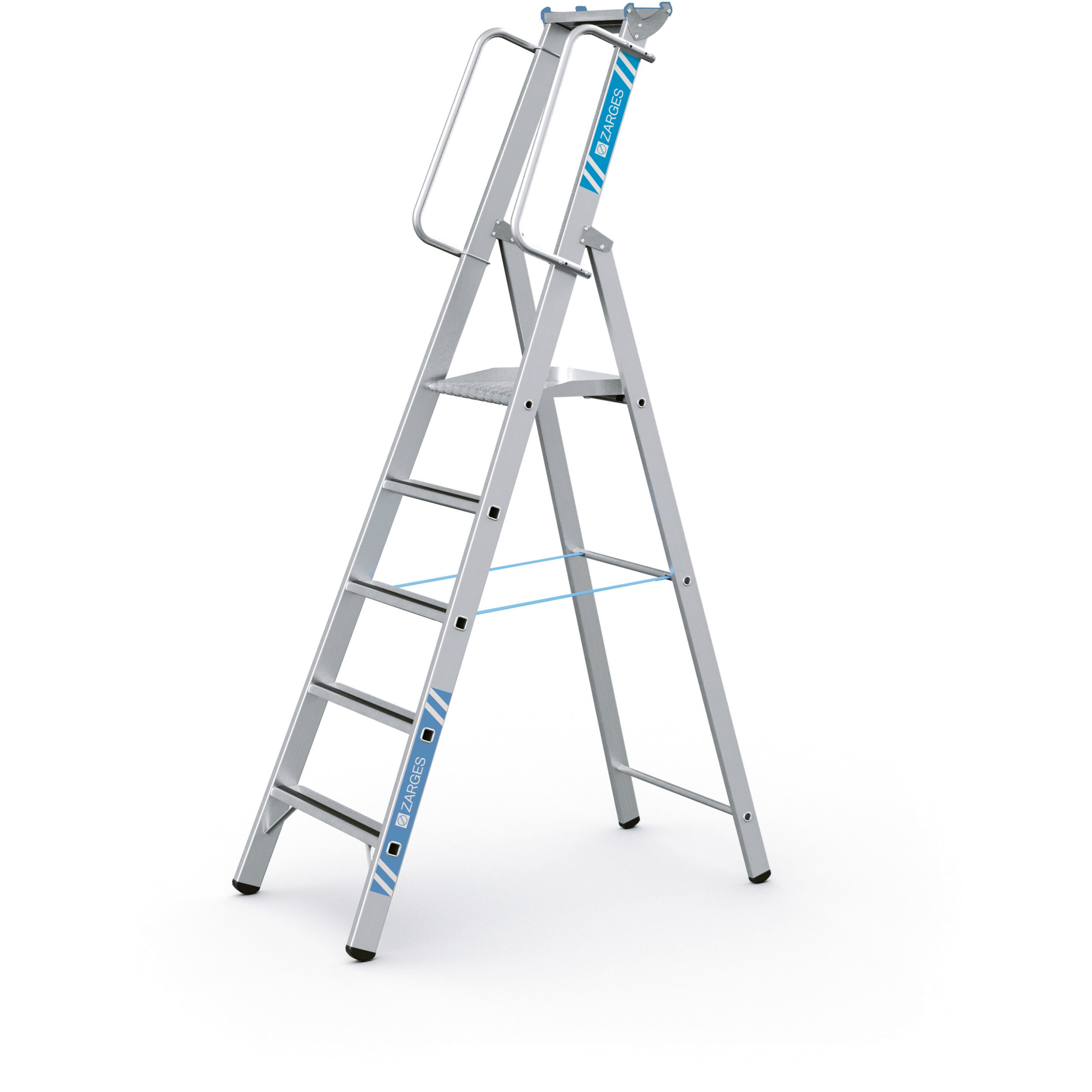

main product photo

Details

The Rolls Royce of stepladders - the ultimate in comfort and safety.

  • The Rolls Royce of stepladders - the ultimate in comfort and safety.
  • Particularly large work platform with ribbed aluminium sheet covering.
  • With two handrails as standard for safe access.
  • 80 mm deep treads with ZARGES Safer Step Technology for fatigue-free standing.
  • Particularly large work platform with ribbed aluminium sheet lining (approx. 380 x 390 mm).
  • Practical aluminium storage tray for small items and tools.
  • Optimum stability due to the use of two high-strength Perlon belts to prevent splay, from 5 treads.
  • Height of the retaining bracket 1,000 mm.
  • Treads and stiles made from extruded aluminium sections.

Hints and special features

  • Mobile version from 5 steps possible.
  • Complies with EN 131 Professional.

More Information

More Information
Platform length 380 mm
Warranty 10 years
Standards EN 131 professional
Platform width 390 mm
Material aluminium
Load capacity max. 150 kg
Anti-splay mechanism Belt strap
Coating natural
Connection between stiles and rungs/stiles flanged
Tread depth 80 mm
Storage tray aluminium
Vertical distance between each rung/tread 265 mm
Product type Stepladder with flanged treads
Type of rungs/treads Safer Step
Stile depth 73 mm
Stile depth 58 mm

Variants

Order number Anti-splay mechanism Base Number of rungs, incl. platform Overall base width Overall length Platform height Transport dimensions Vertical ladder height Weight Working height
41632 0,91 m × 0,59 m 3 0,59 m 1,92 m 0,77 m 1.920 mm × 590 mm × 155 mm 1,77 m 9,5 kg 2,8 m
41633 1,08 m × 0,62 m 4 0,62 m 2,2 m 1,03 m 2.200 mm × 620 mm × 155 mm 2,03 m 10,7 kg 3 m
41634 Belt strap 1,26 m × 0,65 m 5 0,65 m 2,48 m 1,29 m 2.480 mm × 650 mm × 155 mm 2,29 m 12,1 kg 3,3 m
40477 Belt strap 1,43 m × 0,68 m 6 0,68 m 2,75 m 1,55 m 2.750 mm × 680 mm × 155 mm 2,55 m 13,8 kg 3,55 m
40478 Belt strap 1,76 m × 0,74 m 8 0,74 m 3,32 m 2,07 m 3.320 mm × 740 mm × 155 mm 3,07 m 16,7 kg 4,1 m
40479 Belt strap 2,11 m × 0,8 m 10 0,8 m 3,88 m 2,59 m approx. 3.880 mm × 800 mm × 155 mm 3,59 m 20,3 kg 4,6 m
41635 Belt strap 2,46 m × 0,86 m 12 0,86 m 4,44 m 3,11 m 4.440 mm × 860 mm × 155 mm 4,11 m 23,3 kg 5,1 m
