Megastep S

SKU: 41147

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents Spare parts and accessories

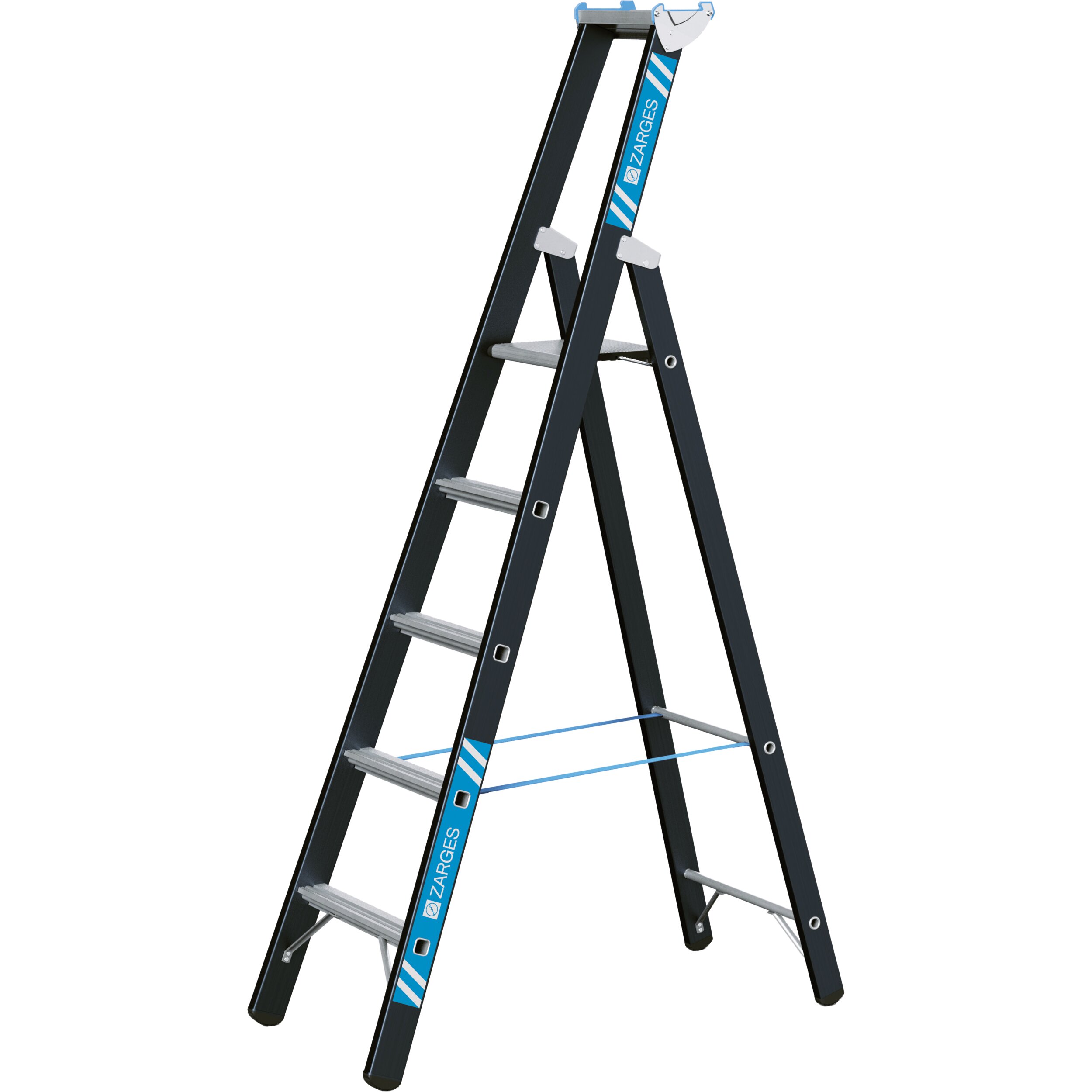

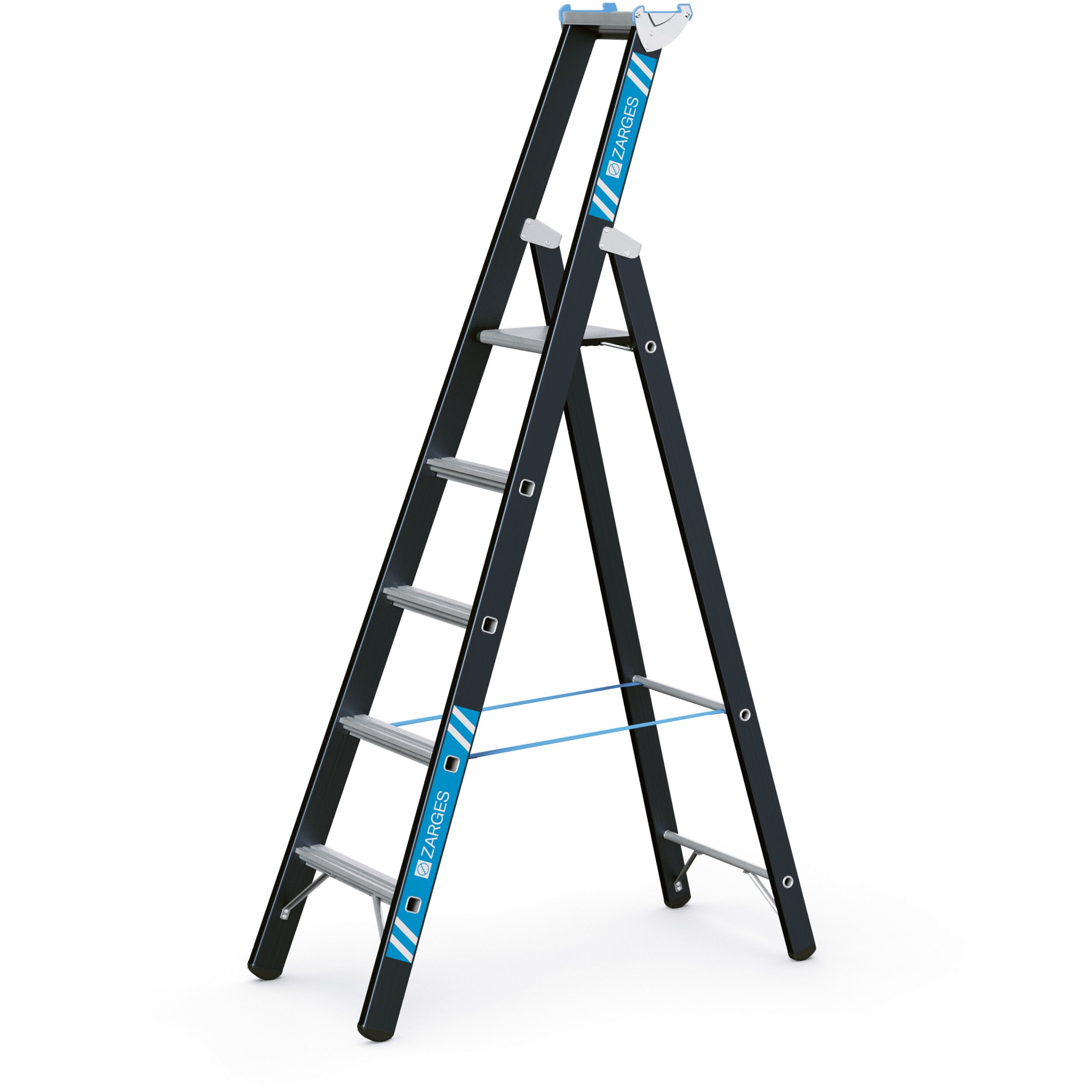

main product photo

Details

The strongest of all our ladders: high load capacity and modern design for the most exacting requirements.

  • The strongest of all our ladders: high load capacity and modern design for the most exacting requirements.
  • Platform that allows personnel to stand safely and comfortably even when working for extended periods.
  • Practical storage tray with plenty of space for tools and small parts.
  • Max. load 250 kg.
  • Wide aluminium alloy rungs, 60 mm deep, with non-slip ribbing.
  • Black, wear-resistant anodised stiles.
  • Platform made from aluminium extrusion (250 x 250 mm) for safe and comfortable standing even when working for longer periods of time.
  • Practical aluminium storage tray for small items and tools.
  • High-strength Perlon straps prevent splay.
  • Replaceable two-component plastic end caps that attach securely to the stile and prevent the ladder from slipping.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Standards EN 131 professional
Warranty 10 years
Platform length 250 mm
Platform width 250 mm
Load capacity max. 250 kg
Platform height 1.33 m
Material aluminium
Anti-splay mechanism Belt strap
Base 1,1 m × 0,5 m
Coating anodised
Connection between stiles and rungs/stiles flanged
Tread depth 60 mm
Transport dimensions 2.155 mm × 505 mm × 150 mm
Stile depth steps/back stay 73mm / 58mm
Working height 3.35 m
Overall length 2.15 m
Storage tray aluminium
No. of rungs incl. platform 5
Vertical distance between each rung/tread 265 mm
Product type Flanged stepladder with rungs
Type of rungs/treads SL Step
Weight 8 kg
Overall base width 0.5 m
Stile depth 73 mm
Stile depth 58 mm
Number of rungs / treads 5

Variants

Order number Anti-splay mechanism Base No. of rungs incl. platform Overall base width Overall length Platform height Transport dimensions Weight Working height
41145 0,76 m × 0,44 m 3 0,44 m 1,59 m 0,8 m 1.595 mm × 445 mm × 150 mm 6,2 kg 2,8 m
41146 0,93 m × 0,47 m 4 0,47 m 1,87 m 1,06 m 1.875 mm × 475 mm × 150 mm 7,3 kg 3,1 m
41147 Belt strap 1,1 m × 0,5 m 5 0,5 m 2,15 m 1,33 m 2.155 mm × 505 mm × 150 mm 8 kg 3,35 m
41148 Belt strap 1,27 m × 0,53 m 6 0,53 m 2,43 m 1,59 m 2.435 mm × 535 mm × 150 mm 8,6 kg 3,6 m
41149 Belt strap 1,61 m × 0,59 m 8 0,59 m 2,99 m 2,12 m 2.995 mm × 595 mm × 150 mm 9,6 kg 4,15 m
