K 470 universal container

SKU: 40835

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents Spare parts and accessories

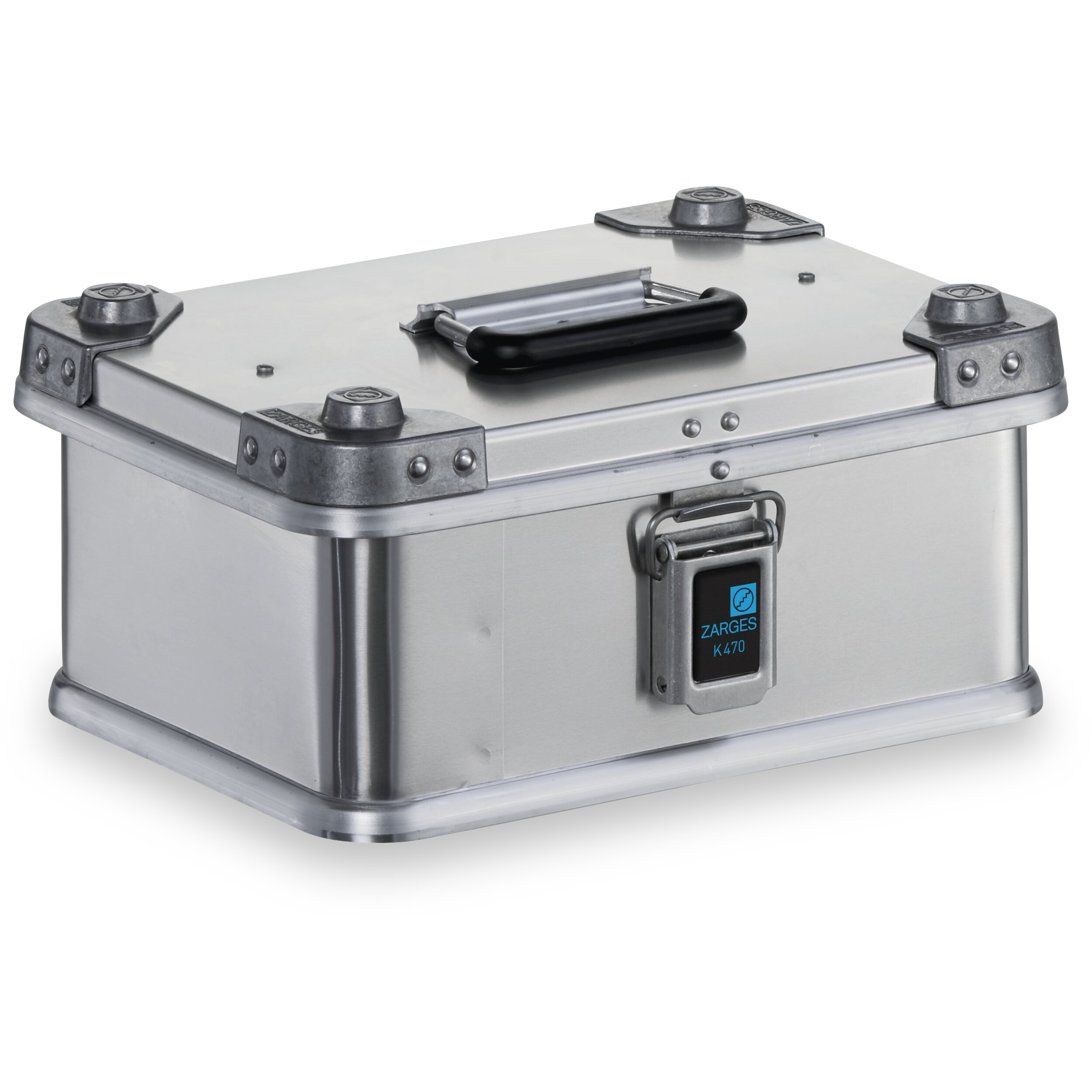

main product photo

Details

The K 470 product range offers an exceptional selection of 25 standard sizes. Their capacity ranges from 13 to 829 litres. Customised sizes are also available by request.

  • Compact and secure storage and transport thanks to stacking corners made of cast aluminium.
  • Large, ergonomic handles and closures facilitate handling, even when the user is wearing gloves.
  • A whole host of quality features ensure a long service life, including fully welded profiles, stainless-steel hinges, beading and solid rivets. All K 470 models with base dimensions of 750 x 550 mm and above are made of extra-thick 1.5 mm sheet metal to provide added stability.
  • 25 standard sizes, customised sizes on request.
  • Lid fitted with stainless-steel hinge strip, two lid straps and peripheral foamed seal.
  • Stacking corners made of cast aluminium ensure secure stacking.
  • High stability thanks to 3 fully welded aluminium profile frames.
  • UN approval for the transportation of hazardous goods possible at additional charge.
  • ZARGES Comfort handles for ergonomic handling and loads of up to 50 kg.
  • Depending on the size, all-round beading and corner beads are added for extra dimensional stability.
  • Snap fasteners: can be secured with a plug lock, lead seals, spring anti-opening feature or a padlock (max. shackle thickness 6 mm).
  • Ergonomic and durable Comfort fasteners that can last at least 20,000 use cycles.
  • Extra-thick aluminium sheets (1.5 mm) are used on all K 470 containers with base dimensions 750 x 550 mm and above.

Hints and special features

  • Clearance dimensions approx. 30 mm less than inside dimensions (length and width). Special sizes on request.
  • IP 65 rating available at add charge.
  • Embossing available at additional cost.

More Information

More Information
Warranty 10 years
Volume 13 l
Internal dimensions L x W x H 350 mm × 250 mm × 150 mm
Outside dimensions L x W x H 400 mm × 300 mm × 180 mm
Material aluminium
Colour of the stacking corners Natural aluminium
Handles Sprung drop handles
Seal foamed lid seal
Fasteners Comfort fasteners
Material of the stacking corners aluminium
Matching foam lining 43860
Max. gross weight dangerous goods permission 26 kg
Weight 2.6 kg
Stacking corners ✔

Variants

Order number Corner beading Internal dimensions L x W x H Matching foam lining Max. gross weight dangerous goods permission Outside dimensions max. L x W x H Peripheral beading Volume Weight
40835 No 350 mm × 250 mm × 150 mm 43860 26 kg 400 mm × 300 mm × 180 mm No 13 l 2,6 kg
40677 Yes 350 mm × 250 mm × 310 mm 43861 45 kg 400 mm × 300 mm × 340 mm No 27 l 3,1 kg
40810 No 550 mm × 350 mm × 150 mm 43862 60 kg 600 mm × 400 mm × 180 mm No 29 l 4,2 kg
40568 Yes 550 mm × 350 mm × 220 mm 43863 65 kg 600 mm × 400 mm × 250 mm No 42 l 4,8 kg

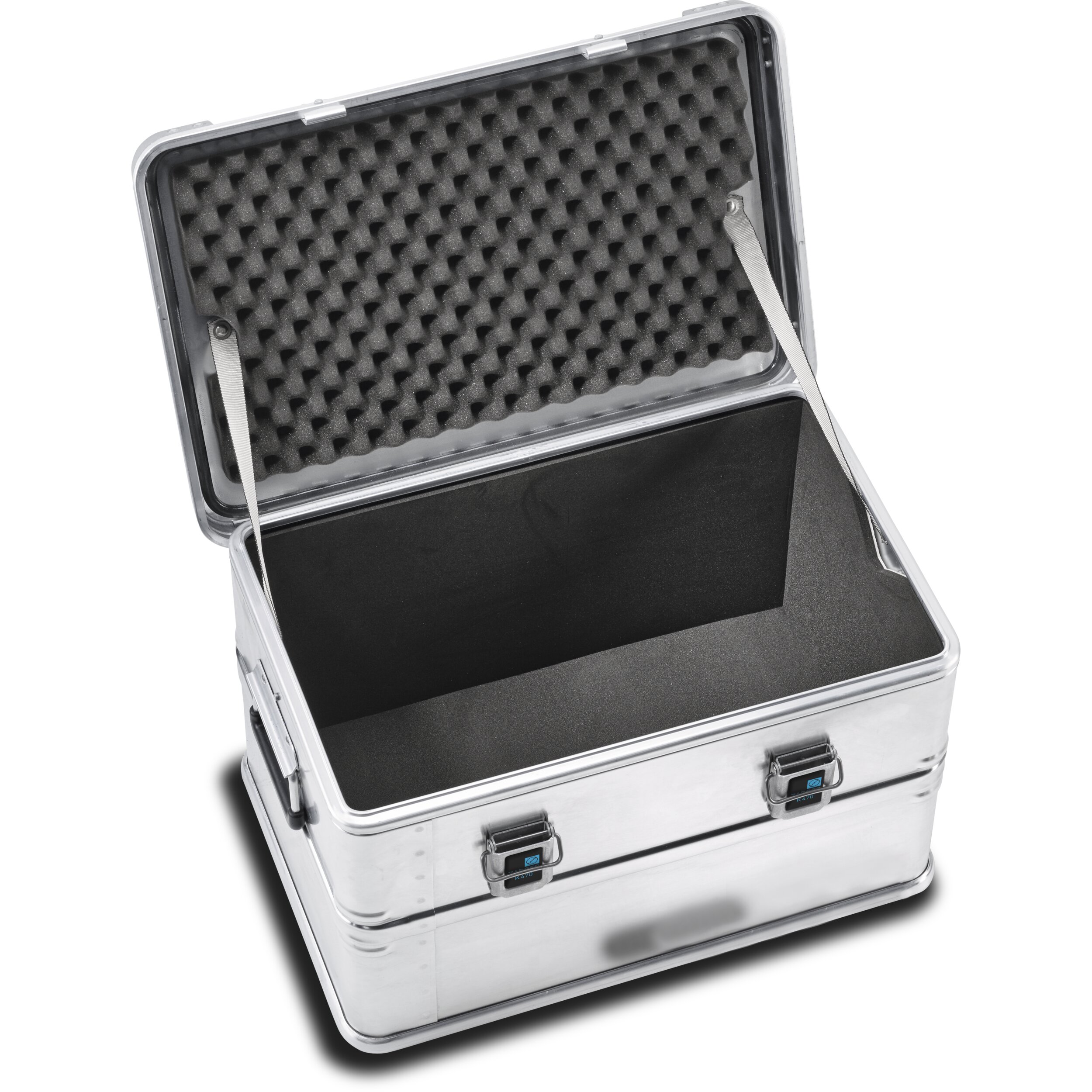

40678 Yes 550 mm × 350 mm × 310 mm 43864 70 kg 600 mm × 400 mm × 340 mm Yes 60 l 5 kg
40564 Yes 550 mm × 350 mm × 380 mm 43865 75 kg 600 mm × 400 mm × 410 mm Yes 73 l 5,3 kg
40849 Yes 550 mm × 550 mm × 220 mm 43866 65 kg 600 mm × 600 mm × 250 mm No 66 l 5,6 kg
40859 Yes 550 mm × 550 mm × 380 mm 43867 75 kg 600 mm × 600 mm × 410 mm Yes 115 l 6,6 kg
40836 Yes 550 mm × 550 mm × 580 mm 43868 94 kg 600 mm × 600 mm × 610 mm Yes 175 l 7,8 kg
40837 Yes 600 mm × 430 mm × 450 mm 43869 70 kg 650 mm × 480 mm × 480 mm Yes 116 l 6,5 kg
40839 Yes 600 mm × 560 mm × 440 mm 43871 83 kg 650 mm × 610 mm × 470 mm Yes 148 l 7,4 kg
40841 Yes 690 mm × 460 mm × 380 mm 43873 71 kg 740 mm × 510 mm × 410 mm Yes 121 l 6,9 kg
40842 Yes 690 mm × 640 mm × 340 mm 43874 84 kg 740 mm × 690 mm × 370 mm Yes 150 l 8 kg
40843 Yes 690 mm × 640 mm × 430 mm 43875 100 kg 740 mm × 690 mm × 460 mm Yes 190 l 8,6 kg
40565 Yes 750 mm × 550 mm × 380 mm 43877 102 kg 800 mm × 600 mm × 410 mm Yes 157 l 10 kg
40566 Yes 750 mm × 550 mm × 580 mm 43878 126 kg 800 mm × 600 mm × 610 mm Yes 239 l 12 kg
40844 Yes 780 mm × 480 mm × 520 mm 43879 103 kg 830 mm × 530 mm × 550 mm Yes 195 l 11,1 kg
40845 Yes 900 mm × 480 mm × 400 mm 43880 93 kg 950 mm × 530 mm × 430 mm Yes 173 l 11 kg
40846 Yes 900 mm × 640 mm × 450 mm 43881 115 kg 950 mm × 690 mm × 480 mm Yes 259 l 13,4 kg
40567 Yes 950 mm × 450 mm × 380 mm 43882 65 kg 1.000 mm × 500 mm × 410 mm Yes 162 l 10,9 kg
40847 No 1.150 mm × 350 mm × 150 mm 43887 50 kg 1.200 mm × 400 mm × 180 mm No 60 l 7,5 kg
40580 Yes 1.150 mm × 750 mm × 480 mm 43884 183 kg 1.200 mm × 800 mm × 510 mm Yes 414 l 20 kg
40848 Yes 1.350 mm × 400 mm × 220 mm 43888 65 kg 1.400 mm × 450 mm × 250 mm No 119 l 9,5 kg
40875 Yes 1.550 mm × 550 mm × 465 mm 43885 150 kg 1.600 mm × 600 mm × 495 mm Yes 396 l 23,5 kg
40876 Yes 1.650 mm × 750 mm × 670 mm 43886 200 kg 1.700 mm × 800 mm × 700 mm Yes 829 l 30 kg
