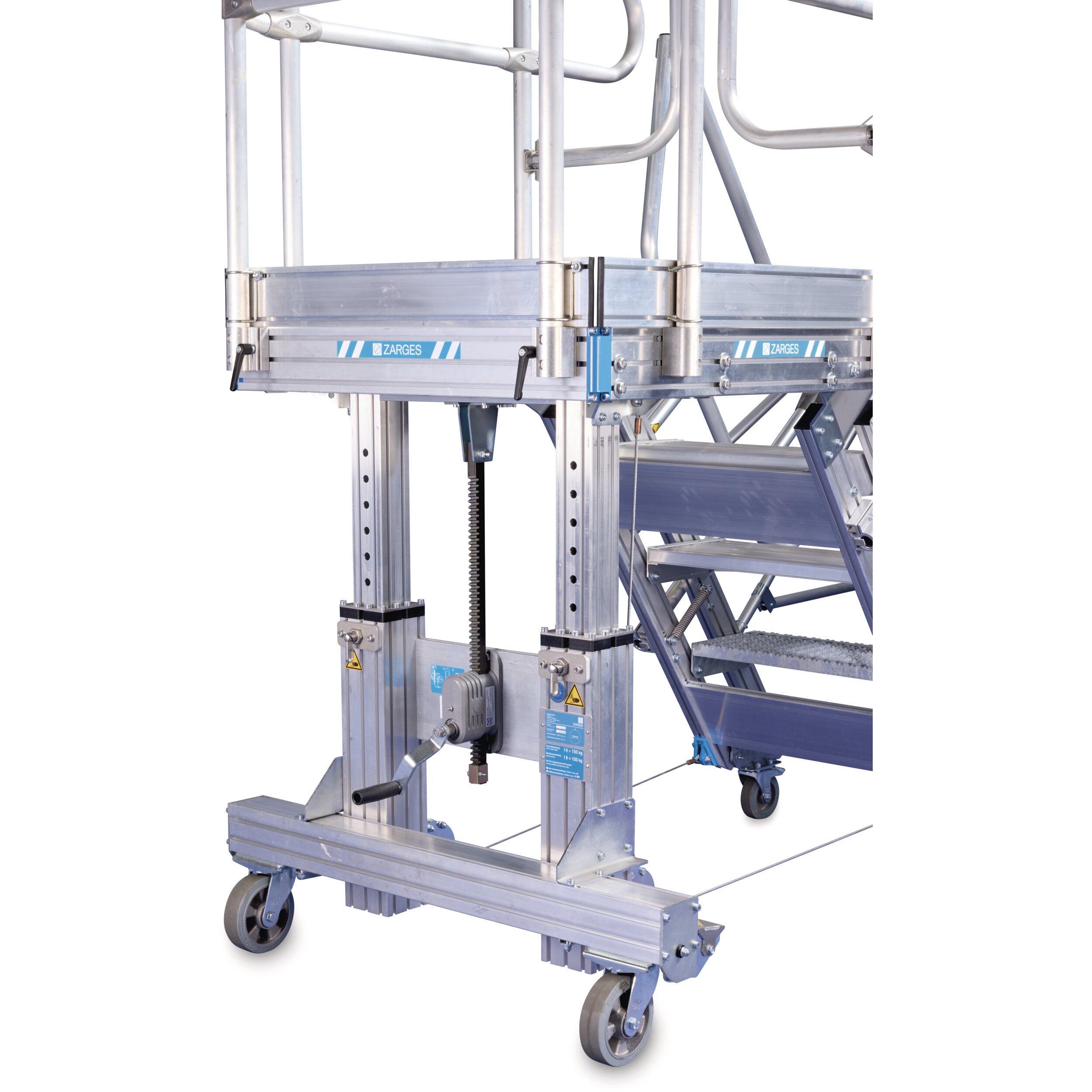

Height-adjustable mobile access steps with platform

Details

Always the ideal height.

  • Flexibility: Working at different heights.
  • Easy to use: Operable by one person.
  • Safety: Thanks to wide, comfortable access stairs with adjustable height and angle.
  • Safety: Work safely on a large platform.
  • Ergonomics: Adjustable to the ideal working height for any task.
  • Ergonomics: Adjustable to the ideal working height, even for employees of different heights.

Hints and special features

  • If the existing modular system does not meet your requirements, we can also offer you customised solutions tailored to your needs.
  • Standards used: Machinery Directive 2006/42/EC, EN ISO 14122-3, EN 131-7.

More Information

More Information
Warranty 10 years
Load capacity max. 150 kg

Variants

Order number Overall span Platform height Platform width Tread width Version Weight
40060049 2191 mm 900mm - 1.300mm 800 mm 600 mm Indoor. 152,6 g
40060041 3739 mm 1.900mm - 2.900mm 1000 mm 800 mm Indoor. 239 kg
40060042 3739 mm 1.900mm - 2.900mm 800 mm 600 mm Indoor. 225,8 kg
40060043 2967 mm 1.400mm - 2.100mm 1000 mm 800 mm Indoor. 196 kg
40060044 2967 mm 1.400mm - 2.100mm 800 mm 600 mm Indoor. 185,2 kg
40060045 3745 mm 1.900mm - 2.900mm 1000 mm 800 mm Indoor and outdoor. 379 kg
40060046 3745 mm 1.900mm - 2.900mm 800 mm 600 mm Indoor and outdoor. 349,8 kg
40060047 2972 mm 1.400mm - 2.100mm 1000 mm 800 mm Indoor and outdoor. 320,8 kg
40060048 2972 mm 1.400mm - 2.100mm 800 mm 600 mm Indoor and outdoor. 297,7 kg
