GRP platform ladder

SKU: 300808

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents

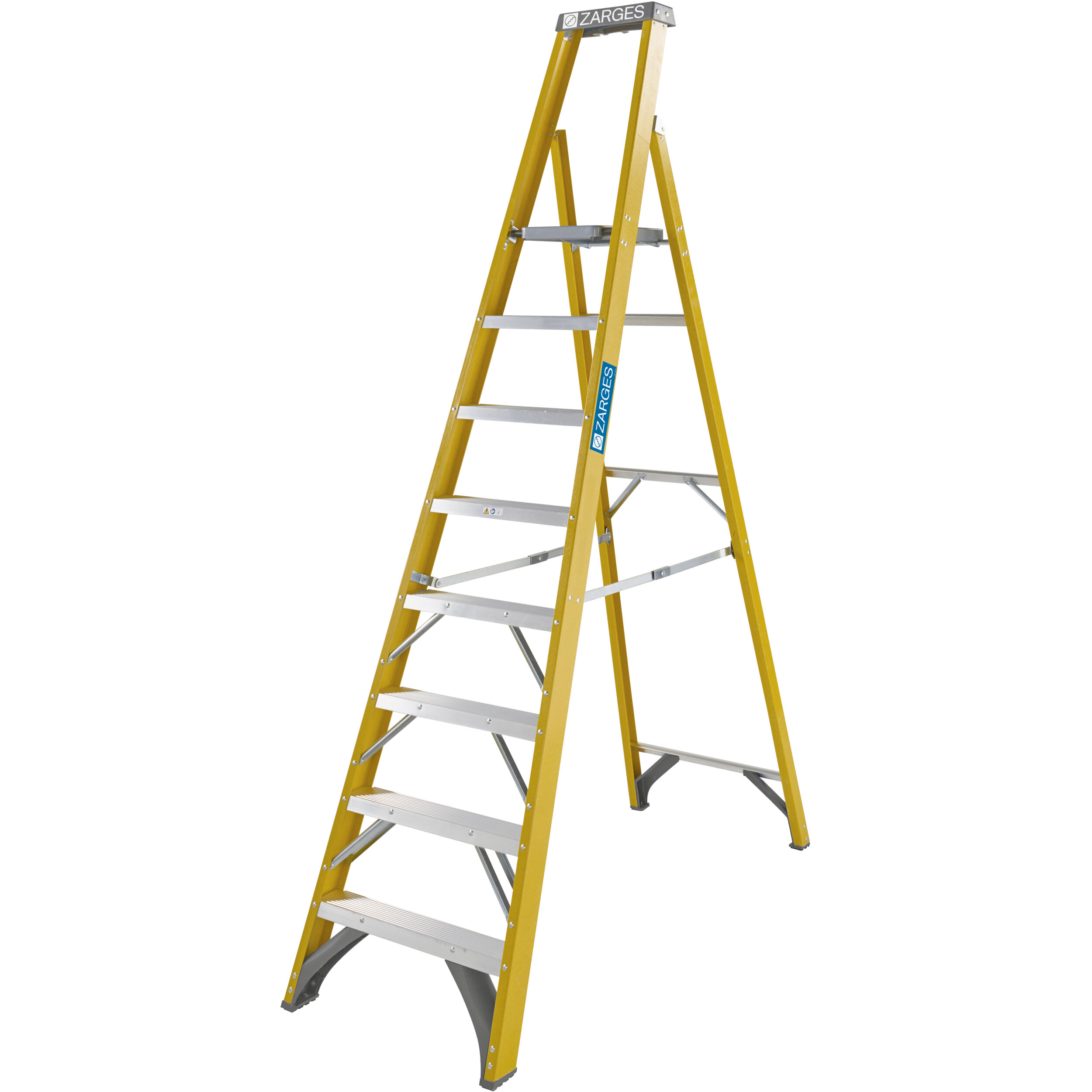

main product photo

Details

Ideal for use near electrical hazards.

  • High level of protection provided for working on electrical installations thanks to insulated stiles made from glass-fire-reinforced plastic.
  • Double-riveted connection between rung and stile.
  • Rigid locking bar on both sides.
  • Non-slip plastic end caps.

More Information

More Information
Warranty 10 years
Load capacity max. 150 kg
Platform height 1.88 m
Material Aluminium / plastic
Anti-splay mechanism Rigid locking bar
Connection between stiles and rungs/stiles riveted
Stile depth steps/back stay /
Working height 3.9 m
Overall length 2.74 m
Storage tray Plastic
Number of rungs, incl. platform 8
Type of rungs/treads serrated
Weight 14.6 kg
Overall base width 0.71 m

Variants

Order number Number of rungs, incl. platform Overall base width Overall length Platform height Working height
300803 3 0,52 m 1,48 m 0,71 m 2,7 m
300804 4 0,56 m 1,74 m 0,94 m 2,95 m
300805 5 0,59 m 1,99 m 1,18 m 3,2 m
300806 6 0,63 m 2,24 m 1,41 m 3,4 m
300807 7 0,69 m 2,49 m 1,65 m 3,65 m
300808 8 0,71 m 2,74 m 1,88 m 3,9 m
300809 9 0,75 m 2,99 m 2,11 m 4,1 m
300810 10 0,78 m 3,24 m 2,35 m 4,35 m
