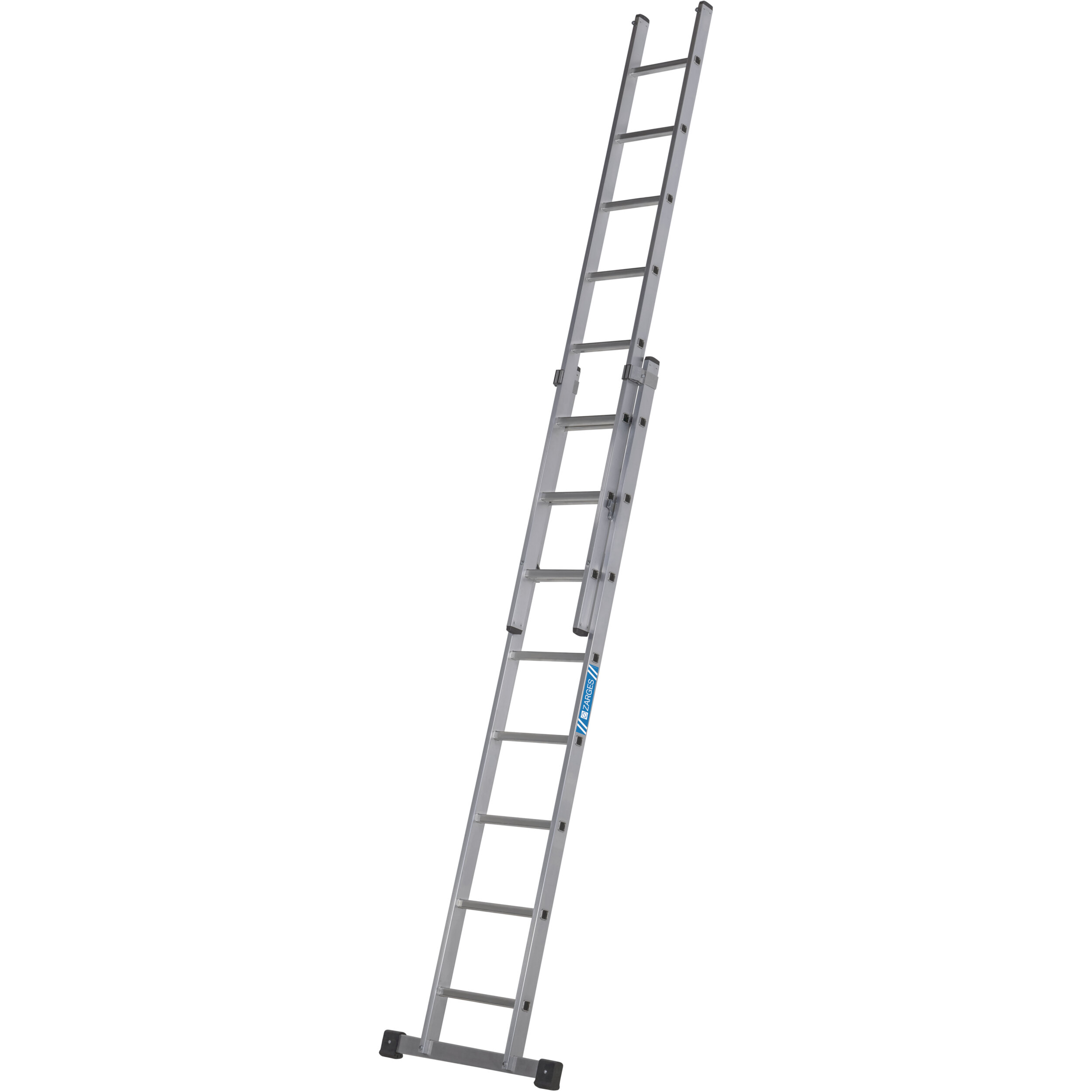

Everest 2E

Details

The convenient solution for working at great heights with maximum ladder width for comfortable climbing and safe standing.

The convenient solution for working at great heights with maximum ladder width for comfortable climbing and safe standing.
From a ladder length of 8.30 m, the upper ladder is equipped with abrasion resistant wall wheels.
Convenient and precise rung-by-rung height adjustment in increments of 280 mm.
Both parts of the ladder can also be used separately as single ladders for Order Nos. 40245-40247
High level of stability thanks to extra-wide lower ladder (490 mm).

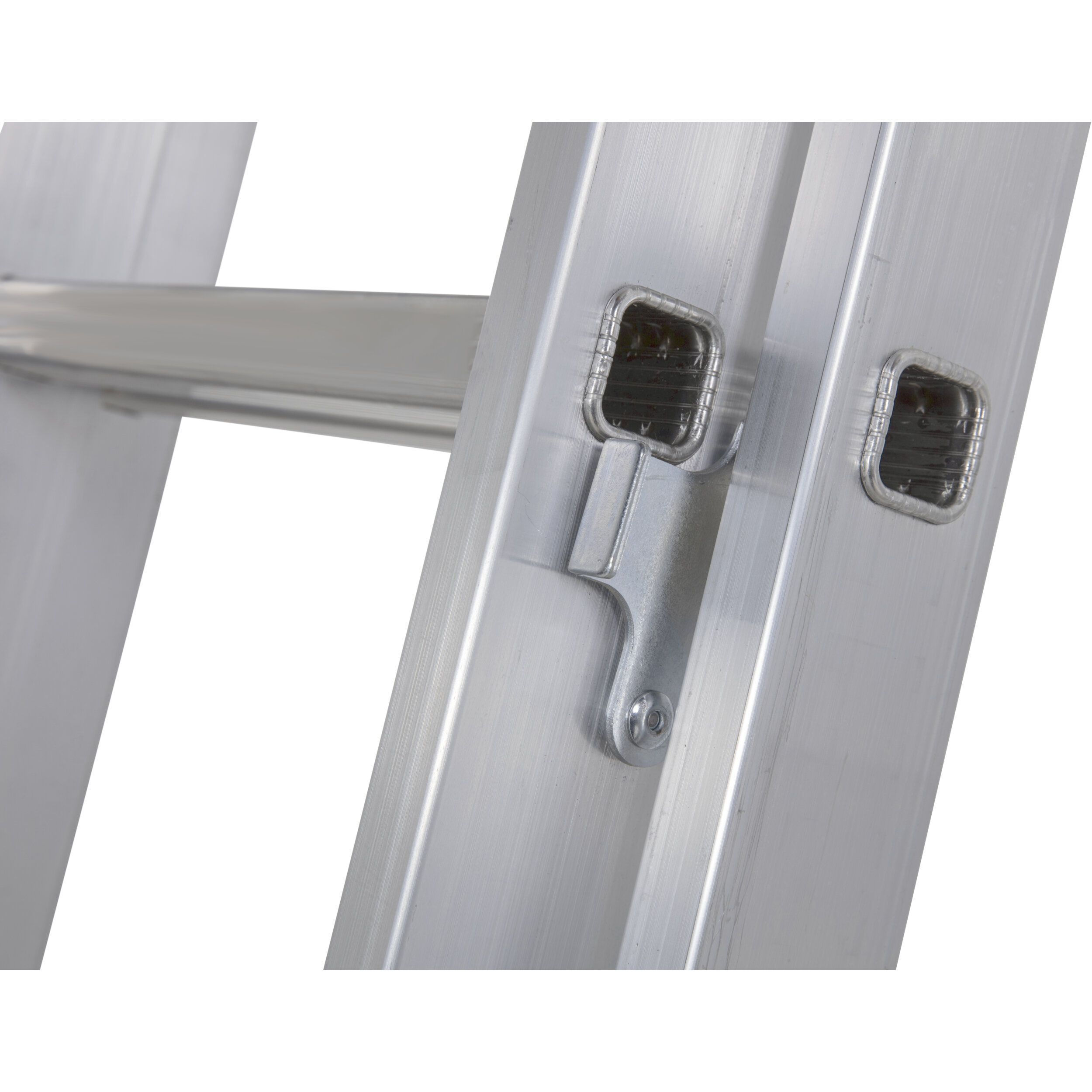

Plastic anti-friction insert with lift-off retainer.

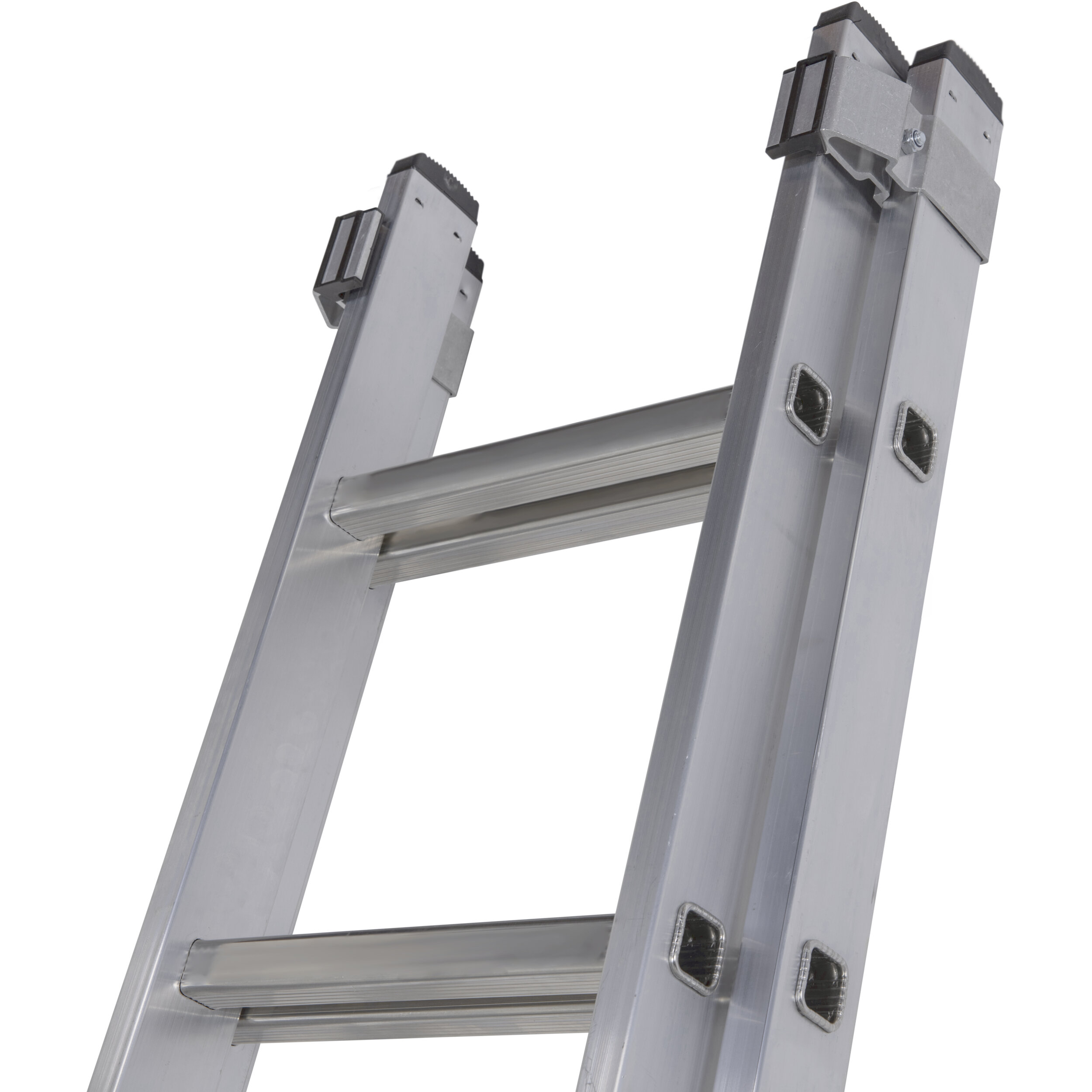

Replaceable 2-component plastic end caps ensure positioning without risk of slipping.

More Information
Material	aluminium
Standards	EN 131 professional
Warranty	10 years
Load capacity	max. 150 kg
Coating	natural
Connection between stiles and rungs/stiles	flanged
Tread depth	30 mm
Castors	Rubber
Vertical distance between each rung/tread	270 mm
Product type	Flanged push-up ladder with rungs, 2 sections
Type of rungs/treads	serrated
External width of lower ladder	490 mm

Order number	Number of rungs	Number of rungs	Overall length, extended	Overall length, retracted	Stile depth	Transport dimensions	Weight	Wide crosspiece	Working height
40245	6	2 × 6	2,95 m	1,83 m	58 mm	1.830 mm × 500 mm × 130 mm	7,6 kg		3,8 m
40246	8	2 × 8	4,07 m	2,39 m	68 mm	2.390 mm × 500 mm × 130 mm	9,8 kg	0,9 m	4,85 m
40247	10	2 × 10	4,96 m	3 m	68 mm	3.000 mm × 500 mm × 140 mm	13,5 kg	1 m	5,75 m
40248	12	2 × 12	6,09 m	3,56 m	73 mm	3.570 mm × 500 mm × 160 mm	18 kg	1,1 m	6,8 m
40249	14	2 × 14	7,21 m	4,07 m	85 mm	4.130 mm × 500 mm × 160 mm	19,5 kg	1,2 m	7,9 m
40214	16	2 × 16	8,33 m	4,7 m	98 mm	4.690 mm × 500 mm × 180 mm	26,2 kg	1,2 m	9 m
40215	18	2 × 18	9,13 m	5,2 m	98 mm	5.210 mm × 500 mm × 230 mm	28,8 kg	1,2 m	9,75 m
40216	20	2 × 20	10,25 m	5,74 m	114 mm	5.770 mm × 500 mm × 230 mm	33 kg	1,2 m	10,85 m
40217	24	2 × 24	12,22 m	6,9 m	114 mm	6.900 mm × 500 mm × 230 mm	41,5 kg	1,2 m	12,75 m
