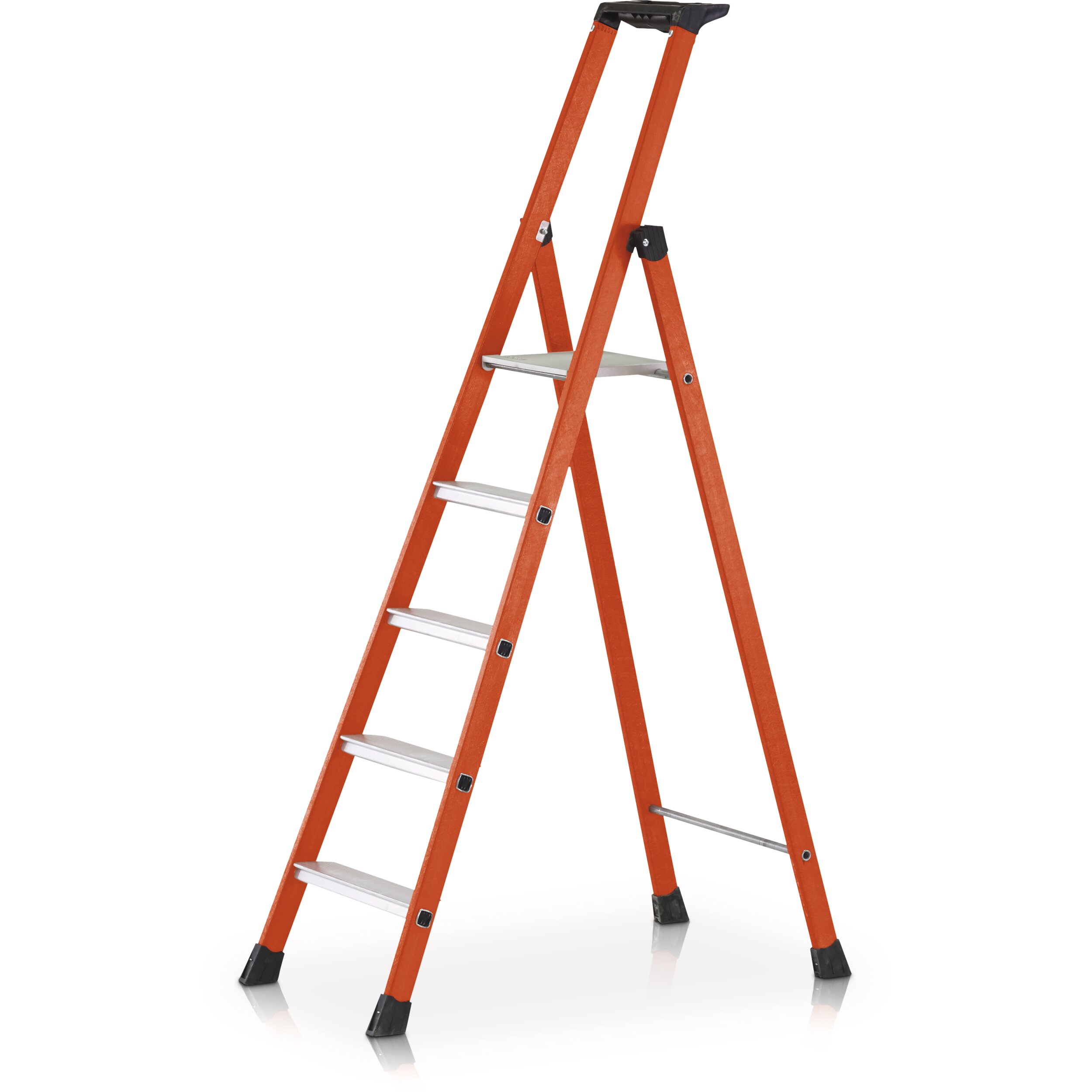

EFAmix S

SKU: 40435

Details

The solution for work in an electrical environment.

The solution for work in an electrical environment.
Suitable for working on electrical installations thanks to insulated stiles made from glass-fibre-reinforced plastic.
Meets the requirements of the high-voltage test for ladders made of insulting material in accordance with DIN EN 61 478.
Aluminium treads, 80 mm deep, with non-slip ribbing.
Safety platform (250 x 250 mm).
Safe storage of accessories and tools in plastic storage tray.
Only 88 mm wide when folded.
Treads made of aluminium extrusion.

More Information
Platform height	1.6 m
Platform length	250 mm
Warranty	10 years
Standards	EN 131 professional
Platform width	250 mm
Material	Aluminium / plastic
Load capacity	max. 150 kg
Anti-splay mechanism	Belt strap
Base	1,4 m × 0,62 m
Connection between stiles and rungs/stiles	flanged
Tread depth	80 mm
Transport dimensions	2.390 mm × approx. 620 mm × 100 mm
Stile depth steps/back stay	50mm / 50mm
Working height	3.6 m
Overall length	2.4 m
Storage tray	Plastic
Number of rungs, incl. platform	7
Vertical distance between each rung/tread	230 mm
Product type	GRP composite stepladder with treads
Type of rungs/treads	serrated
Weight	10 kg
Overall base width	0.62 m
Stile depth	50 mm
Stile depth	50 mm
length-area-base-td-met	1.4 m
width-area-base-td-met	0.62 m
Number of rungs / treads	7

Order number	Base	Number of rungs, incl. platform	Overall base width	Overall length	Platform height	Transport dimensions	Weight	Working height
40431	0,75 m × 0,52 m	3	0,52 m	1,4 m	0,68 m	1.390 mm × approx. 520 mm × 100 mm	6 kg	2,7 m
40432	0,91 m × 0,55 m	4	0,55 m	1,65 m	0,91 m	1.640 mm × approx. 550 mm × 100 mm	7 kg	2,9 m
40433	1,07 m × 0,57 m	5	0,57 m	1,9 m	1,14 m	1.890 mm × approx. 570 mm × 100 mm	8 kg	3,15 m
40434	1,24 m × 0,6 m	6	0,6 m	2,15 m	1,37 m	2.140 mm × approx. 600 mm × 100 mm	9 kg	3,35 m
40435	1,4 m × 0,62 m	7	0,62 m	2,4 m	1,6 m	2.390 mm × approx. 620 mm × 100 mm	10 kg	3,6 m
