SKU: 48982

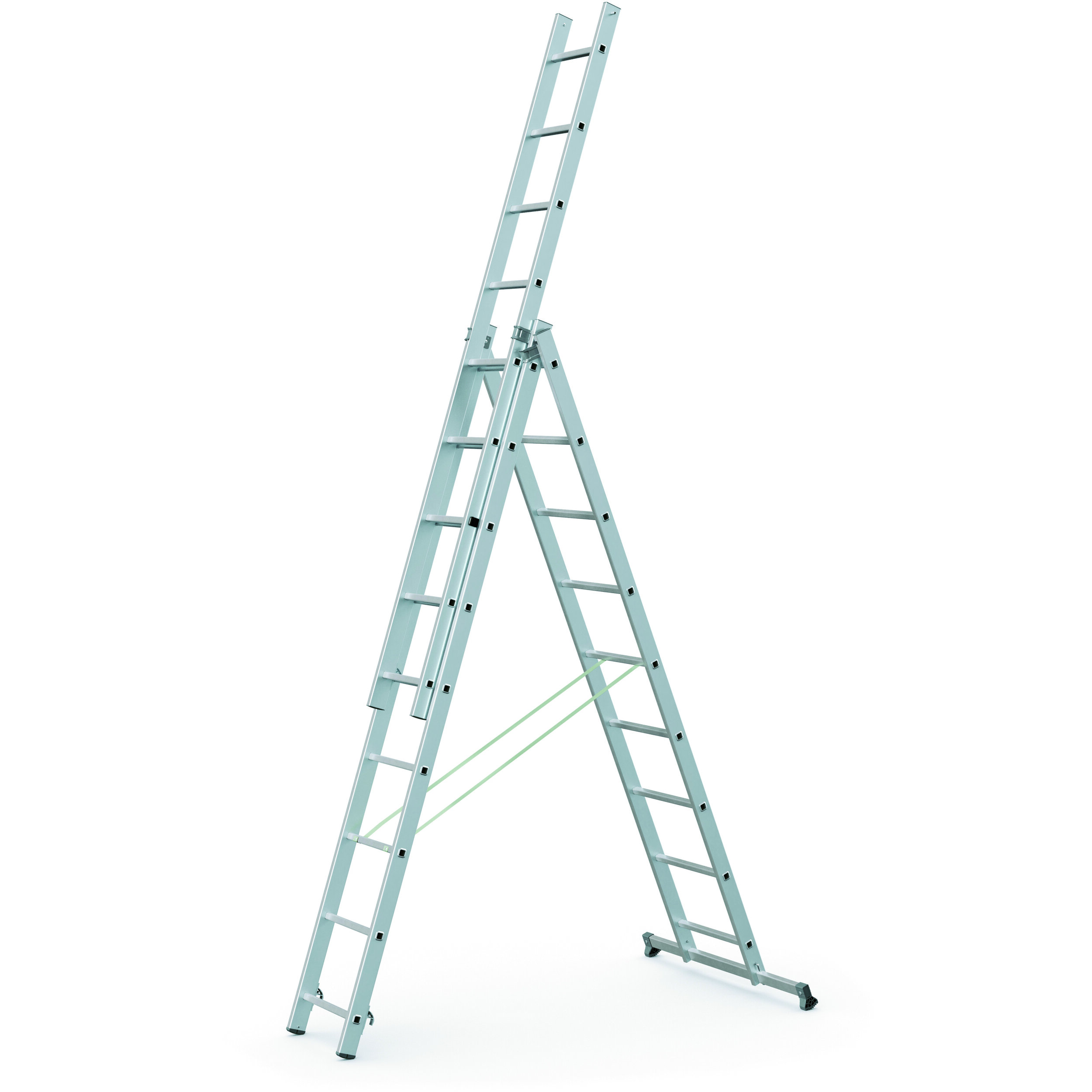

Our base model: lightweight and yet robust.
| Standards | EN 131 professional |
|---|---|
| Warranty | 10 years |
| Number of rungs | 3 × 9 |
| Load capacity | max. 150 kg |
| Material | aluminium |
| Coating | natural |
| Connection between stiles and rungs/stiles | flanged |
| Tread depth | 24 mm |
| Transport dimensions | approx. 2.598 mm × approx. 460 mm × approx. 190 mm |
| Working height as 3-part single ladder | max. approx. 6.7 m |
| Length as 2-part single ladder and as stepladder with push-on section | 3.93 m |
| Ladder length as 3-part single ladder | 5.96 m |
| Overall length, retracted | 2.6 m |
| Number of rungs | 9 |
| Vertical distance between each rung/tread | 265 mm |
| Type of rungs/treads | serrated |
| Weight | 14.9 kg |
| Wide crosspiece | 0.99 m |
| Order number | Ladder length as 3-part single ladder | Length as 2-part single ladder and as stepladder with push-on section | Number of rungs | Number of rungs | Overall length, retracted | Transport dimensions | Weight | Wide crosspiece | Working height as 3-part single ladder |
|---|---|---|---|---|---|---|---|---|---|
| 48980 | 4 m | 2,53 m | 7 | 3 × 7 | 2,04 m | approx. 2.038 mm × approx. 460 mm × approx. 135 mm | 9,9 kg | 0,74 m | max. approx. 4,8 m |
| 48981 | 5,12 m | 3,37 m | 8 | 3 × 8 | 2,32 m | approx. 2.318 mm × approx. 460 mm × approx. 180 mm | 13,3 kg | 0,88 m | max. approx. 5,9 m |
| 48982 | 5,96 m | 3,93 m | 9 | 3 × 9 | 2,6 m | approx. 2.598 mm × approx. 460 mm × approx. 190 mm | 14,9 kg | 0,99 m | max. approx. 6,7 m |
| 48983 | 6,52 m | 4,49 m | 10 | 3 × 10 | 2,88 m | approx. 2.878 mm × approx. 460 mm × approx. 200 mm | 16,9 kg | 0,99 m | max. approx. 7,2 m |
| 48984 | 6,8 m | 4,77 m | 11 | 3 × 11 | 3,16 m | approx. 3.158 mm × approx. 460 mm × approx. 220 mm | 20,1 kg | 1,2 m | max. approx. 7,5 m |
