Aluminium shaft covers with cover plate

SKU: 47021

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents

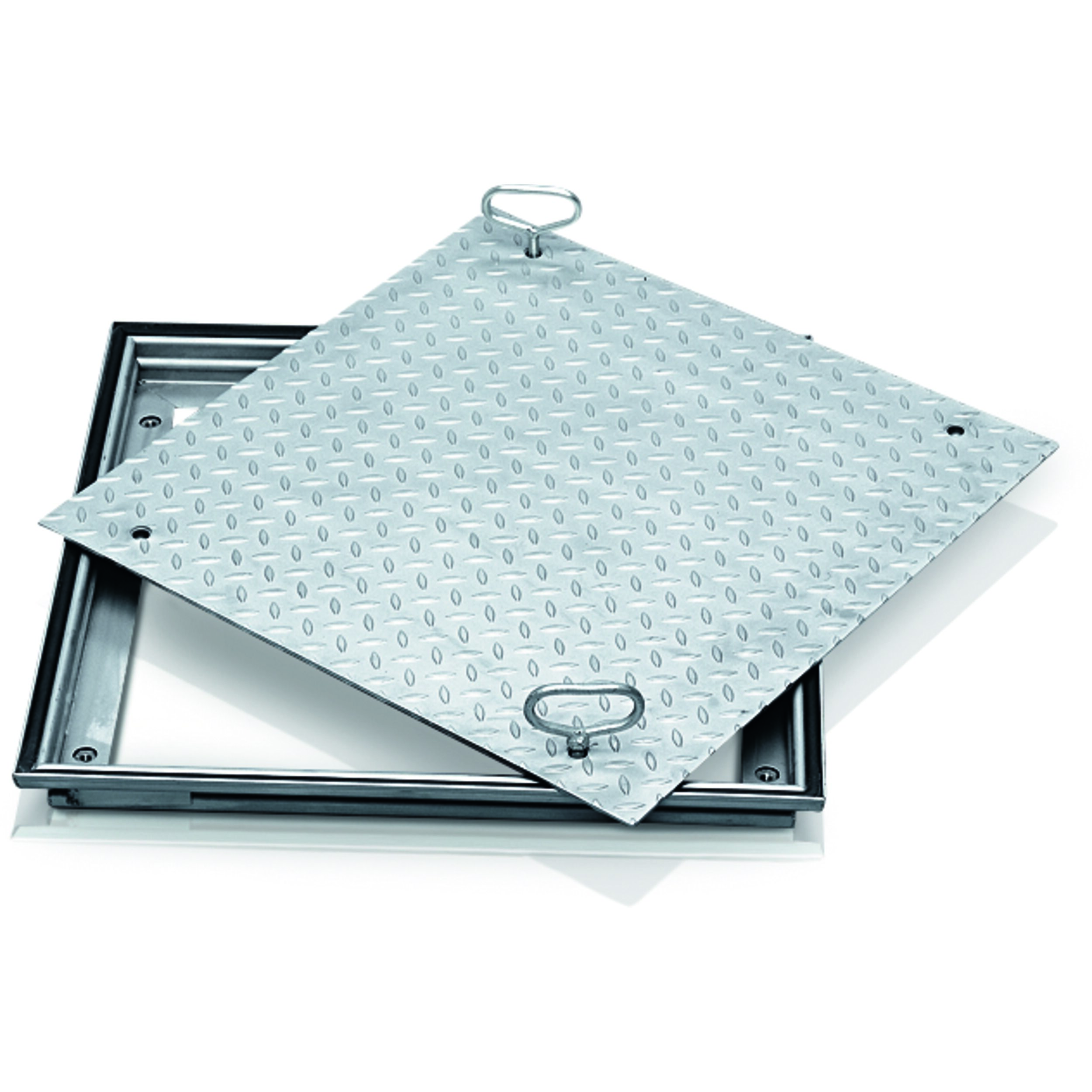

main product photo

Details

Walkable shaft covers with cover plate for indoor use.

  • Compliant with DIN EN 124 in conjunction with DIN 1229.
  • Tapered profile-section construction with multiple bolted joints.
  • Easy to open, no jamming.
  • EPDM seal (petrol-resistant seal available on request).
  • Odour-tight and impervious to surface water.
  • Load capacity of shaft cover with cover plate: test force 15 kN (= 1.5 t).
  • Incl. lift-out handles (pair) made from stainless steel, comprising one self-lifting opening handle and one lift-out handle.

More Information

More Information
Order number 47021
Outside dimensions max. L x W x H 760 mm × 760 mm
Transport dimensions 760 mm × 760 mm × 70 mm
Design height 63 mm
Inside shaft length 600 mm
Material, frame Steel, galvanised
Inside shaft size 600mm × 600mm
Inside shaft width 600 mm

Variants

Order number Inside shaft length Inside shaft size Inside shaft width Outside dimensions L x W x H Transport dimensions
47021 600 mm 600mm × 600mm 600 mm 760 mm × 760 mm 760 mm × 760 mm × 70 mm
47023 800 mm 800mm × 800mm 800 mm 960 mm × 960 mm 960 mm × 960 mm × 70 mm
47024 1000 mm 1.000mm × 1.000mm 1000 mm 1.160 mm × 1.160 mm 1.160 mm × 1.160 mm × 70 mm
