Alto L

SKU: 41547

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents Spare parts and accessories

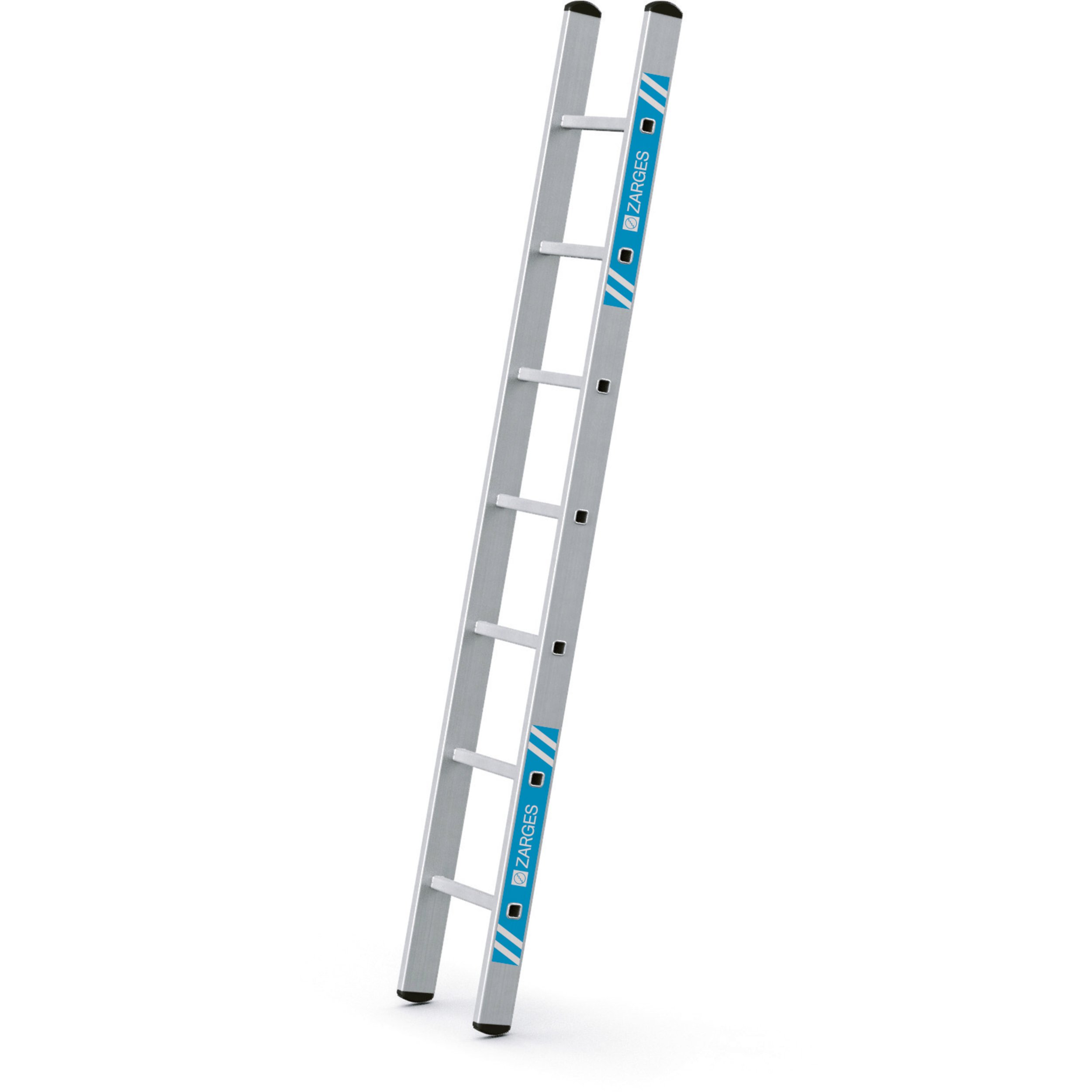

main product photo

Details

The compact alternative - with respect to size, weight and price/performance ratio.

  • The compact alternative - with respect to size, weight and price/performance ratio.
  • Very lightweight but extremely stable.
  • Rung depth 30 mm.
  • Outside width: 350 mm.
  • Replaceable 2-component plastic end caps ensure positioning without risk of slipping.
  • High strength, non-twist rung/stile connections.
  • Rungs and stiles made from aluminium extrusions.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Standards EN 131 professional
Warranty 10 years
Load capacity max. 150 kg
Material aluminium
Coating natural
Connection between stiles and rungs/stiles flanged
Tread depth 30 mm
Transport dimensions 2.210 mm × 350 mm × 60 mm
Working height 3.05 m
Overall length 2.21 m
Number of rungs 7
Vertical distance between each rung/tread 270 mm
Product type Flanged single ladder with rungs
Type of rungs/treads serrated
Weight 4 kg
Stile depth 58 mm
Number of rungs / treads 7

Variants

Order number Number of rungs Overall length Stile depth Transport dimensions Weight Wide crosspiece Working height
41547 7 2,21 m 58 mm 2.210 mm × 350 mm × 60 mm 4 kg 3,05 m
41548 8 2,49 m 58 mm 2.490 mm × 350 mm × 60 mm 4,4 kg 3,35 m
41550 10 3,05 m 58 mm 3.050 mm × 350 mm × 60 mm 6,1 kg 0,79 m 3,9 m
41552 12 3,61 m 58 mm 3.610 mm × 350 mm × 60 mm 7 kg 0,79 m 4,4 m
41554 14 4,17 m 68 mm 4.170 mm × 350 mm × 65 mm 8 kg 0,79 m 4,95 m
41556 16 4,73 m 68 mm 4.730 mm × 350 mm × 70 mm 9,2 kg 0,89 m 5,5 m
41558 18 5,29 m 73 mm 5.290 mm × 350 mm × 80 mm 10,5 kg 0,89 m 6,05 m
41560 20 5,85 m 73 mm 5.850 mm × 350 mm × 80 mm 11,5 kg 0,99 m 6,6 m
41562 22 6,41 m 85 mm 6.410 mm × 350 mm × 80 mm 13,2 kg 0,99 m 7,15 m
41564 24 6,98 m 85 mm 6.970 mm × 350 mm × 90 mm 14,4 kg 1,1 m 7,7 m

Documents
