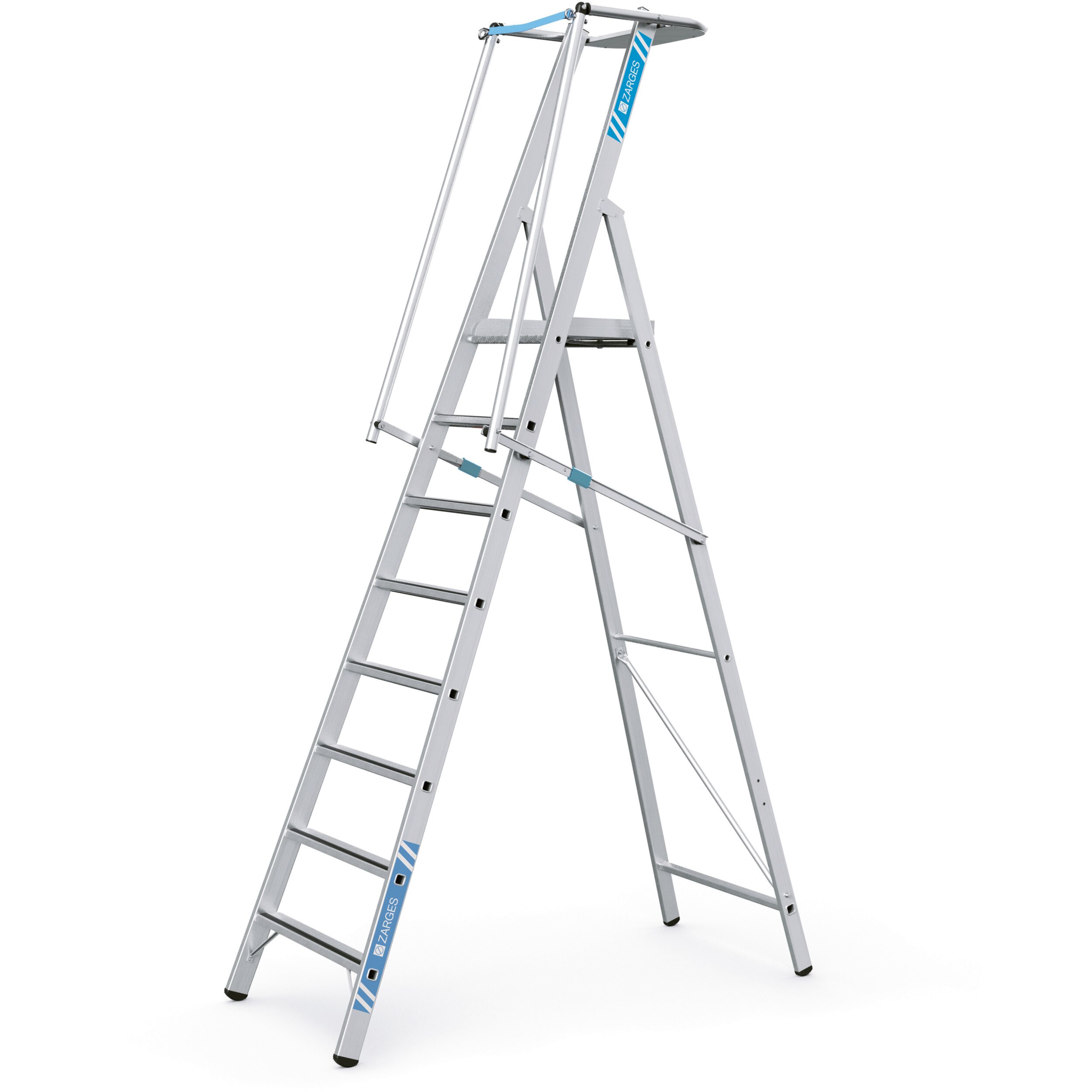

ZAP Safemaster S

SKU: 41678

Details

Safe ascent and descent due to non-slip treads and handrail, high degree of stability and compact transport dimensions.

Safe ascent and descent due to non-slip treads and handrail, high degree of stability and compact transport dimensions.
Optimum stability thanks to rigid locking bar on both sides.
Foldable anodised handrails allow it to take up less space during transport.
The handle on the platform allows the ladder to be folded up quickly and effortlessly.
Extra-large work platform (400 x 400 mm).
Anodised handrails and guardrails.
Generously sized storage tray for tools and small parts.
Treads 80 mm deep, with ZARGES Safer Step Technology.
Can be retrofitted with optional stabiliser sets to comply with EN 131, Part 7.

More Information
Standards	EN 131 professional
Warranty	10 years
Platform length	400 mm
Platform height	2.11 m
Platform width	400 mm
Load capacity	max. 150 kg
Guardrail height	1000 mm
Platform material	Aluminium ribbed plate
Anti splay	Rigid locking bar
Tread depth	80 mm
Transport dimensions	approx. 3.550 mm × 750 mm × 210 mm
Height including railing	3.13 m
Stile depth steps/back stay	73mm / 58mm
Working height	4.11 m
Overall length	3.55 m
Tray	Aluminium
Number of rungs, incl. platform	8
Producttype	Flanged platform ladder with treads
Type rung/tread	Safer Step
Weight	19.1 kg
Overall base width	0.77 m
Stile depth	73 mm
Stile depth	58 mm
Number of rungs / treads	8

Order number	Height including railing	Number of rungs, incl. platform	Overall base width	Overall length	Platform height	Transport dimensions	Weight	Working height
41672	1.53 m	2	0.59 m	1.87 m	0.53 m	approx. 1.870 mm × 620 mm × 210 mm	10.6 kg	2.53 m
41681	1.79 m	3	0.62 m	2.15 m	0.79 m	approx. 2.150 mm × 620 mm × 210 mm	11.8 kg	2.79 m
41674	2.06 m	4	0.65 m	2.43 m	1.06 m	approx. 2.430 mm × 630 mm × 210 mm	13 kg	3.06 m
41675	2.32 m	5	0.68 m	2.71 m	1.32 m	approx. 2.710 mm × 680 mm × 210 mm	14.4 kg	3.32 m
41676	2.6 m	6	0.71 m	2.99 m	1.58 m	approx. 2.990 mm × 700 mm × 210 mm	16.1 kg	3.58 m
41677	2.87 m	7	0.74 m	3.27 m	1.85 m	approx. 3.270 mm × 720 mm × 210 mm	17.4 kg	3.85 m
41678	3.13 m	8	0.77 m	3.55 m	2.11 m	approx. 3.550 mm × 750 mm × 210 mm	19.1 kg	4.11 m
41679	3.4 m	9	0.8 m	3.83 m	2.34 m	approx. 3.830 mm × 773 mm × 210 mm	20.4 kg	4.34 m
