ZAP Safemaster S

SKU: 41677

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents Spare parts and accessories

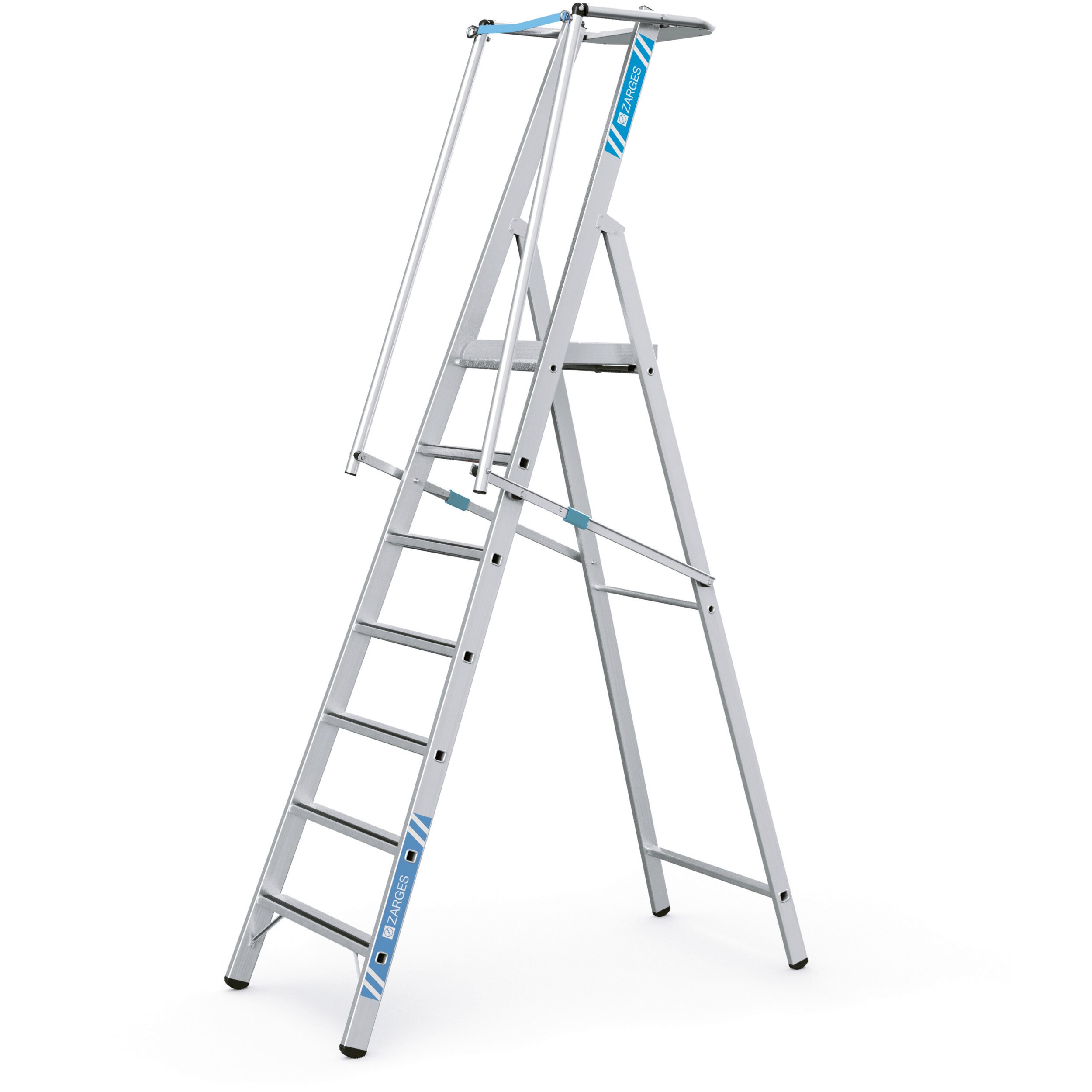

main product photo

Details

Safe ascent and descent due to non-slip treads and handrail, high degree of stability and compact transport dimensions.

  • Safe ascent and descent due to non-slip treads and handrail, high degree of stability and compact transport dimensions.
  • Optimum stability thanks to rigid locking bar on both sides.
  • Foldable anodised handrails allow it to take up less space during transport.
  • The handle on the platform allows the ladder to be folded up quickly and effortlessly.
  • Extra-large work platform (400 x 400 mm).
  • Anodised handrails and guardrails.
  • Generously sized storage tray for tools and small parts.
  • Treads 80 mm deep, with ZARGES Safer Step Technology.
  • Can be retrofitted with optional stabiliser sets to comply with EN 131, Part 7.

More Information

More Information
Platform height 1.85 m
Platform length 400 mm
Warranty 10 years
Standards EN 131 professional
Platform width 400 mm
Load capacity max. 150 kg
Guardrail height 1000 mm
Platform material Aluminium ribbed plate
Anti splay Rigid locking bar
Tread depth 80 mm
Transport dimensions approx. 3.270 mm × 720 mm × 210 mm
Height including railing 2.87 m
Stile depth steps/back stay 73mm / 58mm
Working height 3.85 m
Overall length 3.27 m
Tray Aluminium
Number of rungs, incl. platform 7
Producttype Flanged platform ladder with treads
Type rung/tread Safer Step
Weight 17.4 kg
Overall base width 0.74 m
Stile depth 73 mm
Stile depth 58 mm
Number of rungs / treads 7

Variants

Order number Height including railing Number of rungs, incl. platform Overall base width Overall length Platform height Transport dimensions Weight Working height
41672 1.53 m 2 0.59 m 1.87 m 0.53 m approx. 1.870 mm × 620 mm × 210 mm 10.6 kg 2.53 m
41681 1.79 m 3 0.62 m 2.15 m 0.79 m approx. 2.150 mm × 620 mm × 210 mm 11.8 kg 2.79 m
41674 2.06 m 4 0.65 m 2.43 m 1.06 m approx. 2.430 mm × 630 mm × 210 mm 13 kg 3.06 m
41675 2.32 m 5 0.68 m 2.71 m 1.32 m approx. 2.710 mm × 680 mm × 210 mm 14.4 kg 3.32 m
41676 2.6 m 6 0.71 m 2.99 m 1.58 m approx. 2.990 mm × 700 mm × 210 mm 16.1 kg 3.58 m
41677 2.87 m 7 0.74 m 3.27 m 1.85 m approx. 3.270 mm × 720 mm × 210 mm 17.4 kg 3.85 m
41678 3.13 m 8 0.77 m 3.55 m 2.11 m approx. 3.550 mm × 750 mm × 210 mm 19.1 kg 4.11 m
41679 3.4 m 9 0.8 m 3.83 m 2.34 m approx. 3.830 mm × 773 mm × 210 mm 20.4 kg 4.34 m
