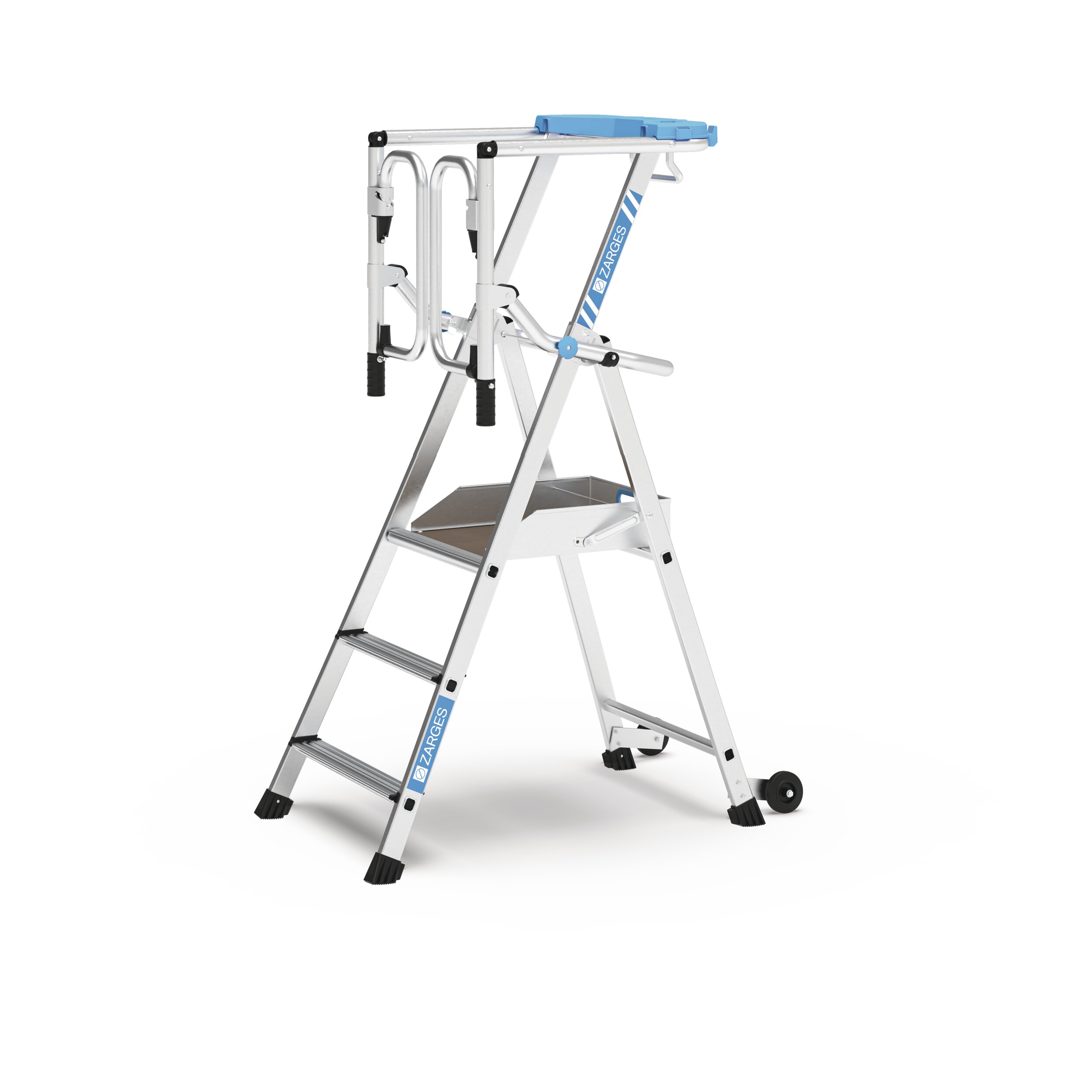

ZAP Safemaster Max S

SKU: 41440

Details

The large platform with sturdy, all-round guardrail and automatic safety saloon door ensures optimal safety and allows users to work 360° at various heights with both hands free for the actual task.
Comfortable and safe access on 60 mm wide treads.
Perfect work organisation with large, well-designed tool tray
Large off-road wheels allow the product to be easily shifted even when fully assembled.
Available in 5 sizes with a maximum working height of 3.70 m.

More Information
Load capacity	150 kg
Order number	41440
Platform height	0.7 m
Platform length	550 mm
Standards	EN 131-7
Platform width	400 mm
Guardrail height	1 m
Platform material	glued plywood panel
Transport dimensions	approx. 250 mm × approx. 690 mm × approx. 2.060 mm
Height including railing	max. 1.72 m
Stile depth steps/back stay	/
Working height	2.7 m
Overall length	2.06 m
Tray	Plastic
Number of rungs, incl. platform	3
Producttype	Flanged platform ladder with treads
Weight	16 kg
Overall base width	0.69 m

Order number	Height including railing	Number of rungs, incl. platform	Overall base width	Overall length	Platform height	Transport dimensions	Weight	Working height
41440	max. 1.72 m	3	0.69 m	2.06 m	0.7 m	approx. 250 mm × approx. 690 mm × approx. 2.060 mm	16 kg	2.7 m
41441	max. 1.97 m	4	0.78 m	2.34 m	0.95 m	approx. 250 mm × approx. 780 mm × approx. 2.340 mm	16.6 kg	2.95 m
41442	max. 2.23 m	5	0.67 m	2.62 m	1.2 m	approx. 320 mm × approx. 670 mm × approx. 2.620 mm	24.9 kg	3.2 m
41443	max. 2.48 m	6	0.67 m	2.91 m	1.45 m	approx. 320 mm × approx. 670 mm × approx. 2.910 mm	26.1 kg	3.45 m
41444	max. 2.74 m	7	0.67 m	3.18 m	1.7 m	approx. 320 mm × approx. 670 mm × approx. 3.180 mm	27.4 kg	3.7 m
