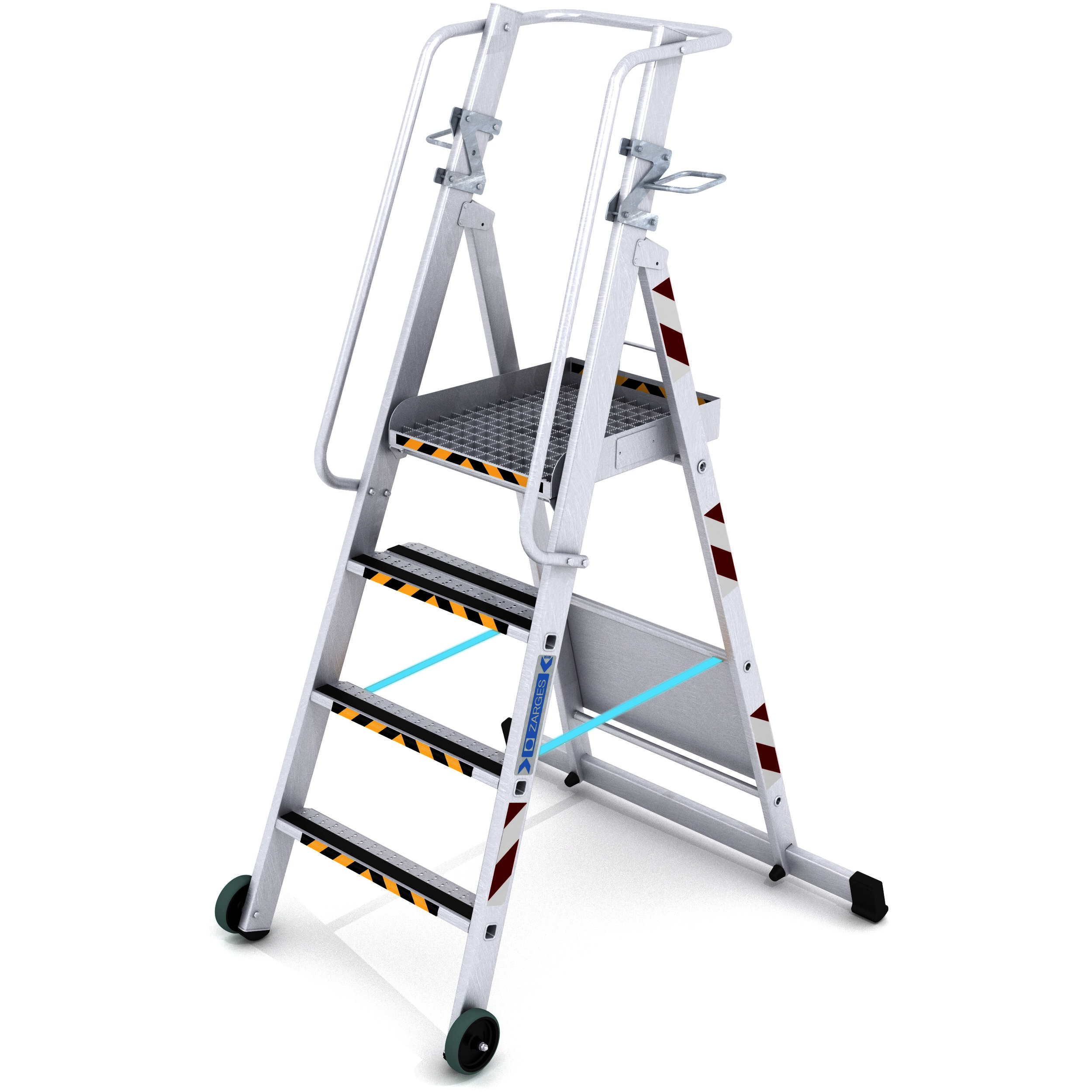

Fuelling ladder with 6 treads

SKU: 40051

Details

The universal platform ladder for all kinds of demanding applications. You can also use this ladder as a refuelling ladder to help you get work done quickly and safely.

  • The universal platform ladder for all kinds of demanding applications. You can also use this ladder as a refuelling ladder to help you get work done quickly and safely.
  • Our ladder is equipped with two removable mounts for securely holding underwing refuelling nozzles on the ladder's access section.
  • A stabiliser on the ladder’s support section ensures safe standing. Also available in other widths.
  • The spacious platform (500x450mm) made of steel grating ensures maximum secure footing thanks to its R13 slip-resistance rating and design that allows liquids to drain off.
  • Two wheels on the access section ensure easy ladder operation. The wheels can also be attached to the support section.
  • Increased safety even with oily substances or ice during outdoor applications.
  • Large, serrated-surface standing platform for safe and comfortable working.
  • Easily collapsible for transport and storage.
  • 80 mm deep treads with R13 surface and perforations to drain fast.
  • All-round railings.
  • Wide horizontal stabiliser bar.

More Information

More Information
Standards EN 131-7
Warranty 10 years
Platform length 500 mm
Platform width 450 mm
Load capacity max. 150 kg
Platform height 1.6 m
Material Natural aluminium
non-static-td
Anti splay Belt strap
Coating natural
Connection Stile-Rung flanged
Tread depth 80 mm
Transport dimensions 2.550 mm × 1.450 mm × 400 mm
Working height 3.6 m
Number of rungs, incl. platform 6
Number of treads 6
Pitch rung/tread 265 mm
Producttype Flanged mobile platform ladder
Type rung/tread R13 tread
Weight 20 kg
Overall base width 1400 mm
Wide crosspiece 1.4 m
Stile depth 73 mm
Number of rungs / treads 6

Variants

Order number Number of rungs, incl. platform Overall base width Platform height Transport dimensions Weight Wide crosspiece Working height
40097 3 1000 mm 0.8 m 1.800 mm × 1.050 mm × 400 mm 15 kg 1 m 2.8 m
40098 4 1100 mm 1.07 m 2.050 mm × 1.200 mm × 400 mm 17 kg 1.1 m 3 m
40099 5 1200 mm 1.35 m 2.350 mm × 1.250 mm × 400 mm 18 kg 1.2 m 3.35 m
40051 6 1400 mm 1.6 m 2.550 mm × 1.450 mm × 400 mm 20 kg 1.4 m 3.6 m
