ZAP Neo S

SKU: 42443

Details

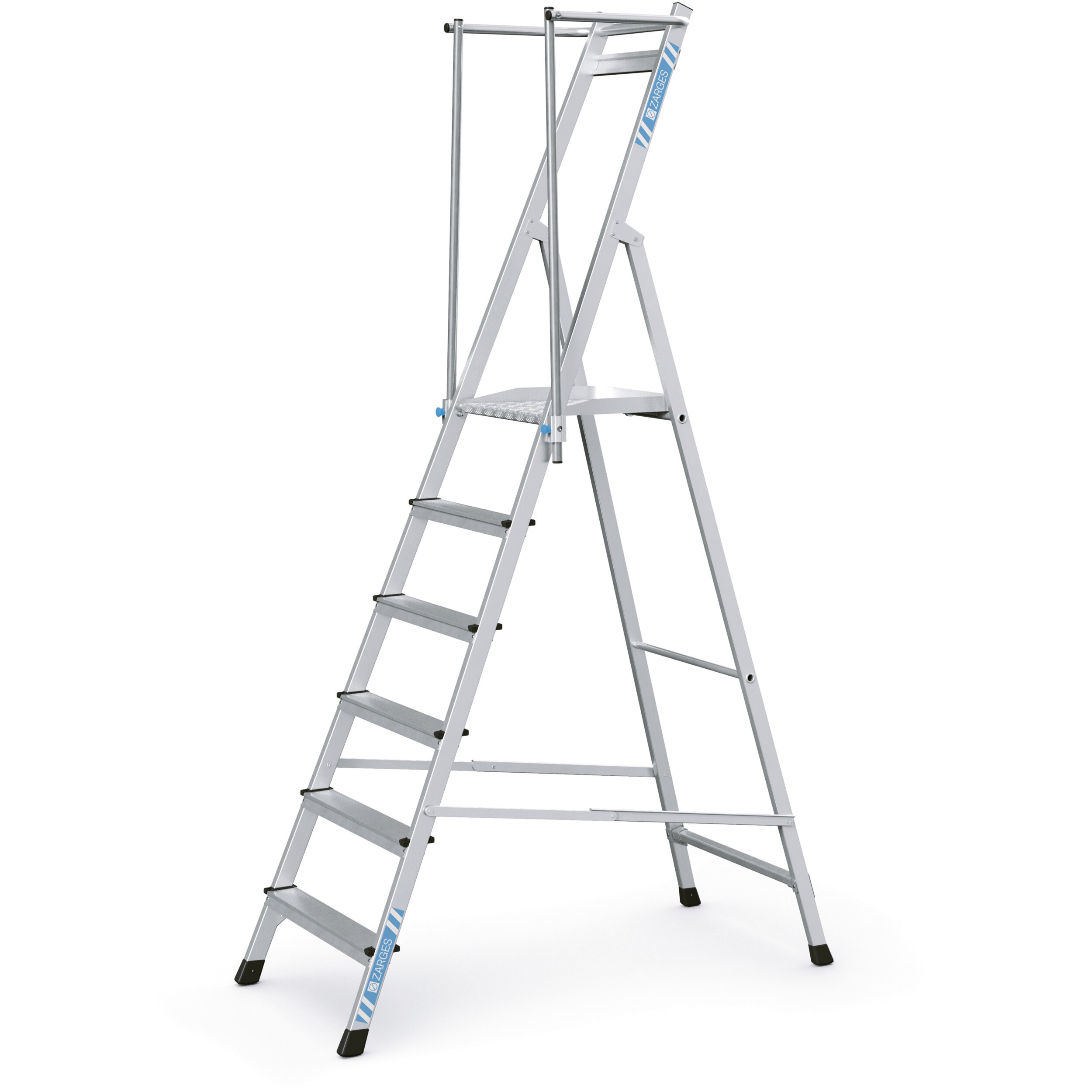

The ultralight platform ladder: Lightweight, wieldy thanks to the foldable handrails, and comfortable owing to the large platform.

  • The ultralight platform ladder: Lightweight, wieldy thanks to the foldable handrails, and comfortable owing to the large platform.
  • Foldable handrail for space-saving during transport.
  • Anodised handrails.
  • Extra-large work platform (400 x 400 mm).
  • 3-sided peripheral guardrail for maximum work safety.
  • Guardrail height 1,000 mm.
  • Stand comfortably, safely and without tiring on 80 mm deep serrated steps.
  • Complies with EN 131 Professional.
  • Triple-riveted joint between tread and stile.

More Information

More Information
Standards EN 131 professional
Warranty 10 years
Platform length 400 mm
Platform height 1.49 m
Platform width 400 mm
Order number 42443
Load capacity max. 150 kg
Guardrail height 1 m
Platform material Aluminium ribbed plate
Anti splay Rigid locking bar
Base 1,43 m × 0,7 m
Coating anodised
Tread depth 80 mm
Transport dimensions 2.720 mm × 700 mm × 150 mm
Height including railing 2.49 m
Stile depth steps/back stay 48mm /
Working height 3.49 m
Overall length 2.74 m
Number of rungs, incl. platform 6
Producttype Riveted platform ladder with treads
Weight 12.5 kg
Overall base width 0.7 m
Stile depth 48 mm
Length base area 1.43 m
Width base area 0.7 m
Number of rungs / treads 6

Variants

Order number Base Height including railing Number of rungs, incl. platform Overall base width Overall length Platform height Transport dimensions Weight Working height
42440 0,92 m × 0,61 m 1.74 m 3 0.62 m 1.93 m 0.74 m 1.910 mm × 610 mm × 150 mm 9.3 kg 2.74 m
42441 1,09 m × 0,64 m 1.99 m 4 0.64 m 2.2 m 0.99 m 2.180 mm × 640 mm × 150 mm 10.4 kg 2.99 m
42442 1,26 m × 0,67 m 2.24 m 5 0.67 m 2.47 m 1.24 m 2.450 mm × 670 mm × 150 mm 11.3 kg 3.24 m
42443 1,43 m × 0,7 m 2.49 m 6 0.7 m 2.74 m 1.49 m 2.720 mm × 700 mm × 150 mm 12.5 kg 3.49 m
42444 1,6 m × 0,73 m 2.74 m 7 0.73 m 3.01 m 1.74 m 2.990 mm × 730 mm × 150 mm 13.8 kg 3.74 m
42445 1,77 m × 0,75 m 2.99 m 8 0.75 m 3.28 m 1.99 m 3.260 mm × 750 mm × 150 mm 15 kg 3.99 m
