ZAP Neo S

Details

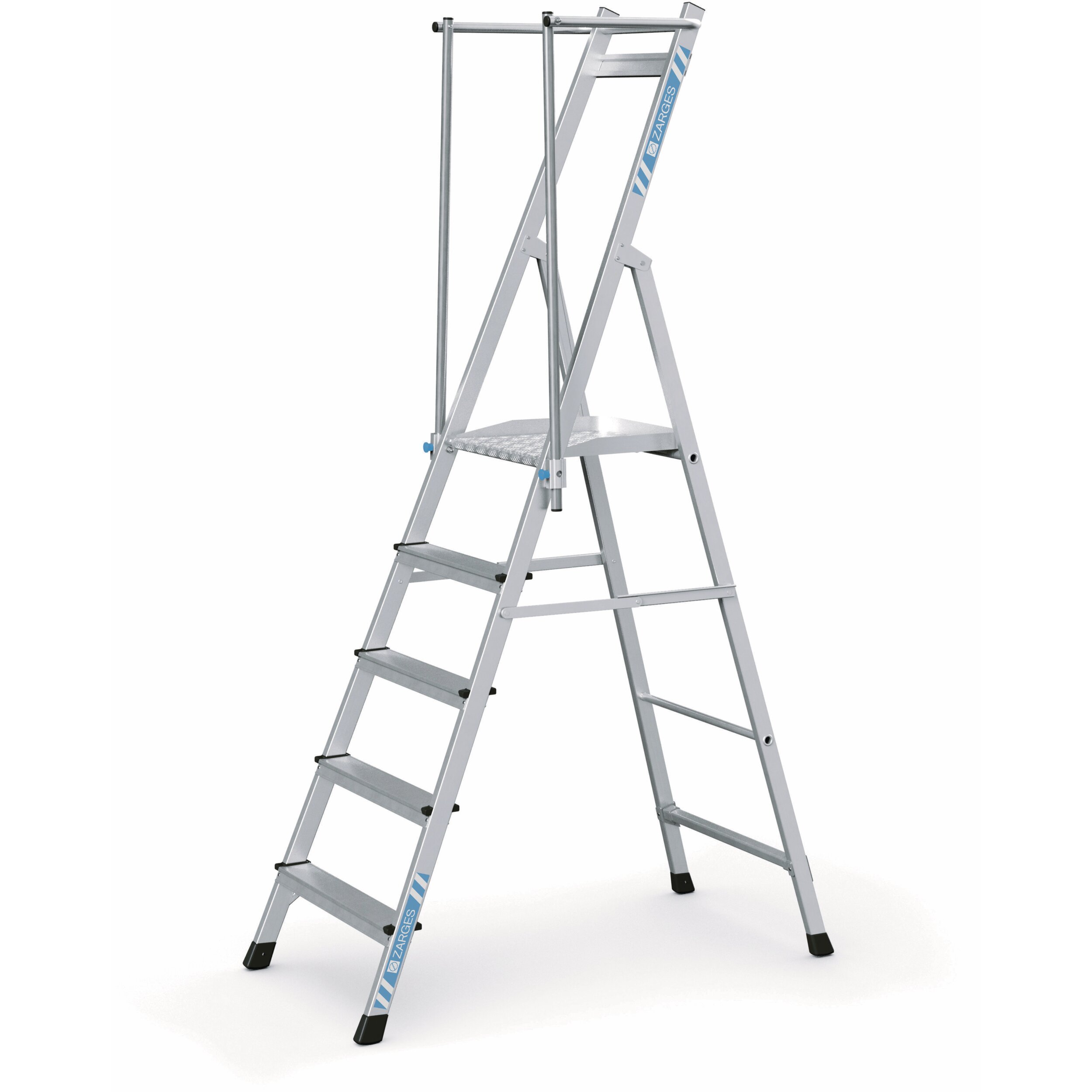

The ultralight platform ladder: Lightweight, wieldy thanks to the foldable handrails, and comfortable owing to the large platform.

  • The ultralight platform ladder: Lightweight, wieldy thanks to the foldable handrails, and comfortable owing to the large platform.
  • Foldable handrail for space-saving during transport.
  • Anodised handrails.
  • Extra-large work platform (400 x 400 mm).
  • 3-sided peripheral guardrail for maximum work safety.
  • Guardrail height 1,000 mm.
  • Stand comfortably, safely and without tiring on 80 mm deep serrated steps.
  • Complies with EN 131 Professional.
  • Triple-riveted joint between tread and stile.

More Information

More Information
Platform length 400 mm
Warranty 10 years
Standards EN 131 professional
Platform width 400 mm
Load capacity max. 150 kg
Guardrail height 1 m
Platform material Aluminium ribbed plate
Anti splay Rigid locking bar
Coating anodised
Tread depth 80 mm
Producttype Riveted platform ladder with treads

Variants

Order number Base Height including railing Number of rungs, incl. platform Overall base width Overall length Platform height Transport dimensions Weight Working height
42440 0,92 m × 0,61 m 1.74 m 3 0.62 m 1.93 m 0.74 m 1.910 mm × 610 mm × 150 mm 9.3 kg 2.74 m
42441 1,09 m × 0,64 m 1.99 m 4 0.64 m 2.2 m 0.99 m 2.180 mm × 640 mm × 150 mm 10.4 kg 2.99 m
42442 1,26 m × 0,67 m 2.24 m 5 0.67 m 2.47 m 1.24 m 2.450 mm × 670 mm × 150 mm 11.3 kg 3.24 m
42443 1,43 m × 0,7 m 2.49 m 6 0.7 m 2.74 m 1.49 m 2.720 mm × 700 mm × 150 mm 12.5 kg 3.49 m
42444 1,6 m × 0,73 m 2.74 m 7 0.73 m 3.01 m 1.74 m 2.990 mm × 730 mm × 150 mm 13.8 kg 3.74 m
42445 1,77 m × 0,75 m 2.99 m 8 0.75 m 3.28 m 1.99 m 3.260 mm × 750 mm × 150 mm 15 kg 3.99 m
