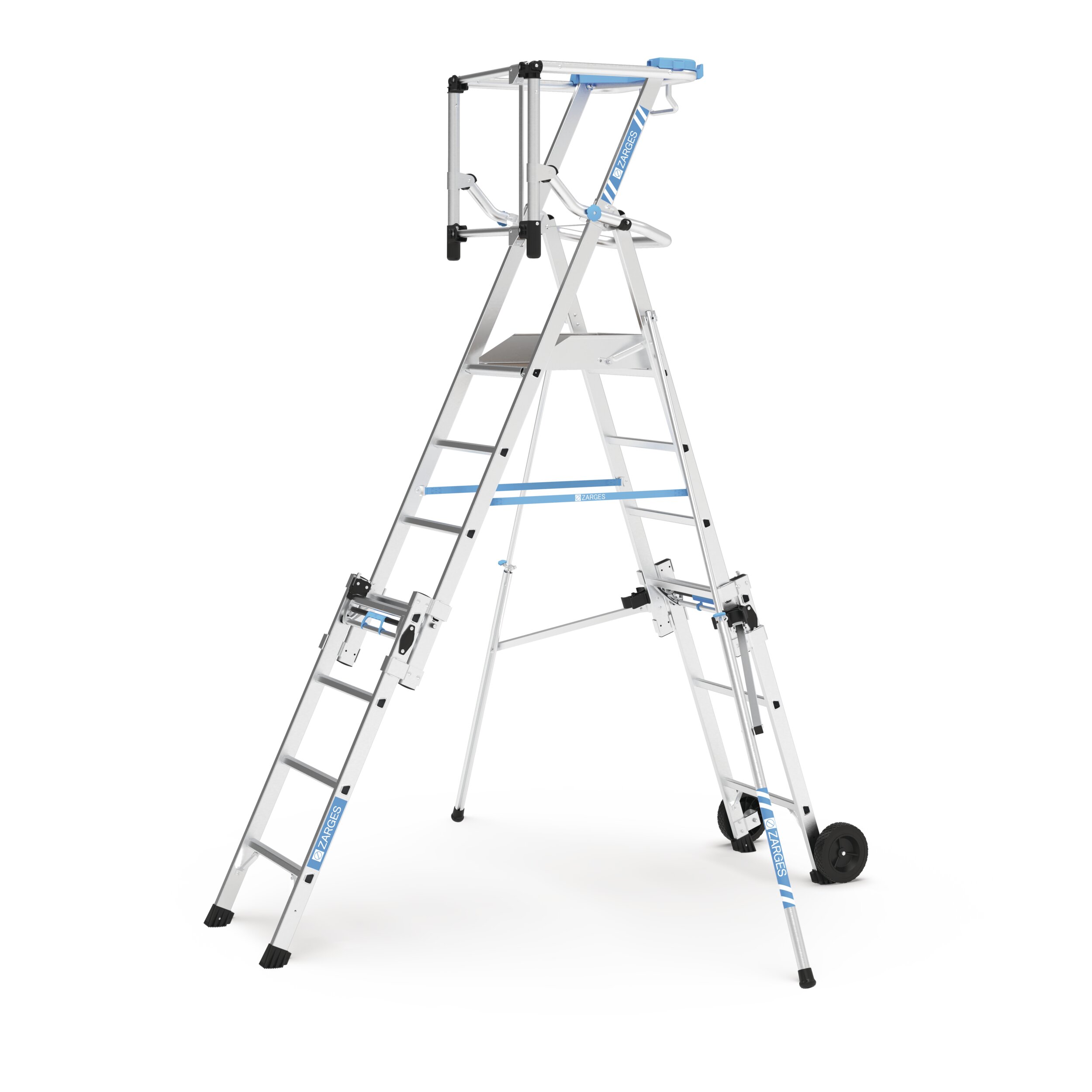

ZAP Masterflex S

Details

The large platform with solid, all-round guardrail and safety barrier door ensures optimal safety and allows users to work 360° at various heights with both hands free for the actual task.
Perfect work organisation with large, well-designed tool tray
Working heights of up to 4.30 m
Large off-road wheels allow the product to be easily shifted even when fully assembled.
High stability thanks to intelligent stabilisers.

More Information
Load capacity	150 kg
Platform length	500 mm
Standards	EN 131-7
Platform width	400 mm
Guardrail height	1 m
Platform material	glued plywood panel
Tread depth	30 mm
Tray	Plastic
Producttype	Flanged telescopic platform ladder

Order number	Footpoint, stabiliser rod extended L x W	Height including railing	No. of rungs incl. platform	Platform height	Transport dimensions	Weight	Width extended	Working height	extended length
41218	2,17m × 2,39 m	max. 2.82 m	7	1,05m / 1,3m / 1,6m / 1,8m	420 mm × 670 mm × 2.470 mm	32.4 kg	2.39 m	max. approx. 3.8 m	2.17 m
41219	2,58m × 3,27 m	max. 3.33 m	9	1,55m / 1,8m / 2,05m / 2,3m	420 mm × 670 mm × approx. 3.020 mm	38.9 kg	3.27 m	max. approx. 4.3 m	2.58 m
