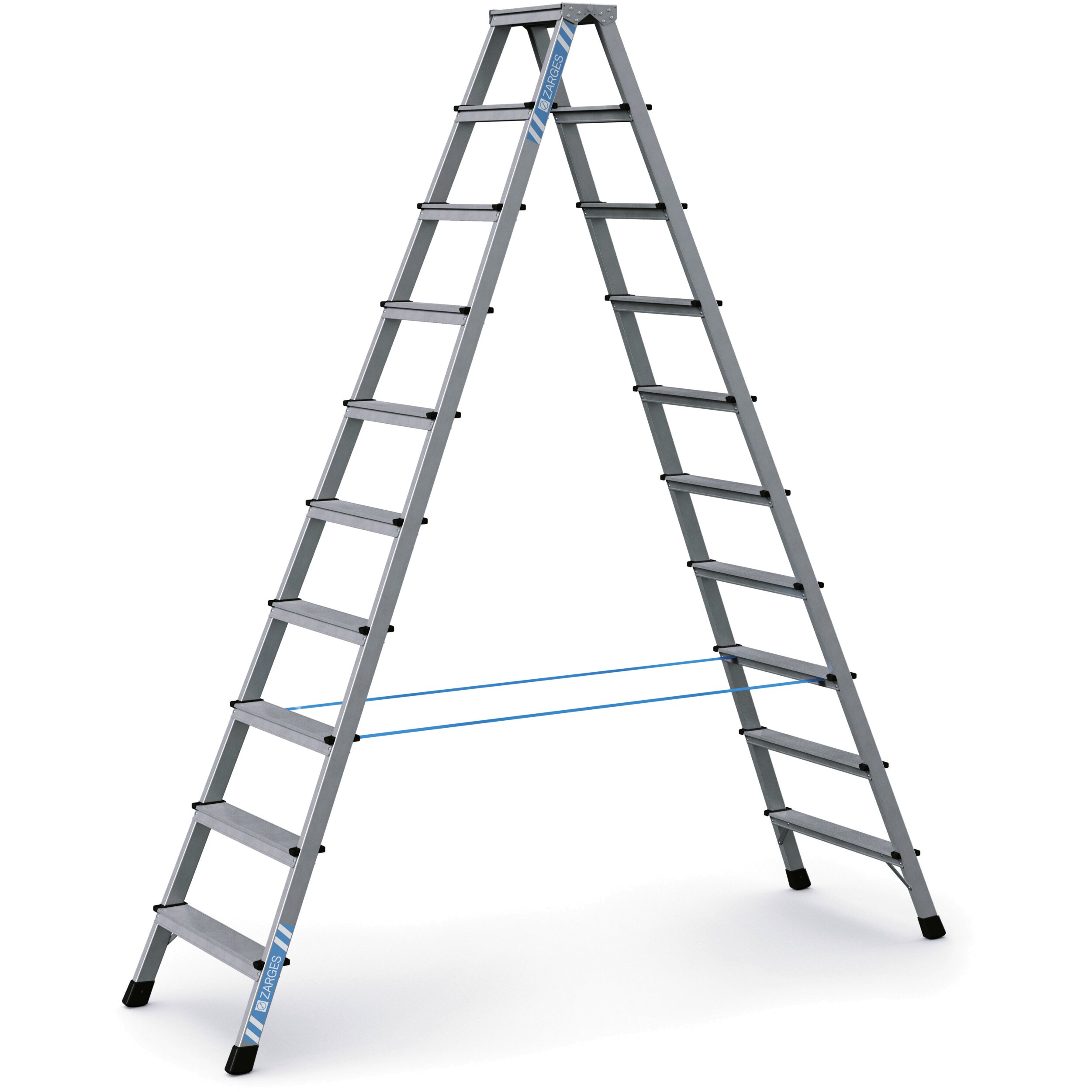

XLstep B

SKU: 41270

Details

Low weight and optimum price/performance ratio without compromising on comfort or equipment.

Low weight and optimum price/performance ratio without compromising on comfort or equipment.
Stand without fatigue on deep treads.
Treads with a depth of 80 mm for fatigue-free standing.
Abrasion-resistant, anodised stiles.
High-strength perlon belts prevent splay.
Triple-riveted connection between treads and stiles.
Treads and stiles made from extruded aluminium sections.

More Information
Warranty	10 years
Standards	EN 131 professional
Material	Aluminium
Load capacity	max. 150 kg
Anti splay	Belt strap
Base	2,15 m × 0,64 m
Coating	anodised
Connection Stile-Rung	riveted
Tread depth	80 mm
Transport dimensions	2.710 mm × 640 mm × 170 mm
Vertical ladder height	2.49 m
Working height	4 m
Overall length	2.71 m
Number ladderparts	2
Number of treads	10
Number of treads	2 × 10
Pitch rung/tread	250 mm
Producttype	Riveted stepladder with treads
Type rung/tread	serrated
Weight	15.8 kg
Overall base width	0.64 m
Stile depth	48 mm
Length base area	2.15 m
Width base area	0.64 m
Number of rungs / treads	2 × 10

Order number	Base	Number of treads	Number of treads	Overall base width	Overall length	Stile depth	Transport dimensions	Vertical ladder height	Weight	Working height
41263	0,72 m × 0,44 m	3	2 × 3	0.44 m	0.82 m	42 mm	820 mm × 440 mm × 170 mm	0.74 m	2.6 kg	2.25 m
41264	0,92 m × 0,47 m	4	2 × 4	0.47 m	1.09 m	42 mm	1.090 mm × 470 mm × 170 mm	0.99 m	3.4 kg	2.5 m
41265	1,12 m × 0,5 m	5	2 × 5	0.5 m	1.36 m	42 mm	1.360 mm × 500 mm × 170 mm	1.24 m	4.5 kg	2.75 m
41266	1,32 m × 0,53 m	6	2 × 6	0.53 m	1.63 m	42 mm	1.630 mm × 530 mm × 170 mm	1.49 m	6.1 kg	3 m
41267	1,54 m × 0,56 m	7	2 × 7	0.56 m	1.9 m	48 mm	1.900 mm × 560 mm × 170 mm	1.74 m	8.3 kg	3.25 m
41268	1,74 m × 0,59 m	8	2 × 8	0.59 m	2.17 m	48 mm	2.170 mm × 590 mm × 170 mm	1.99 m	11.3 kg	3.5 m
41270	2,15 m × 0,64 m	10	2 × 10	0.64 m	2.71 m	48 mm	2.710 mm × 640 mm × 170 mm	2.49 m	15.8 kg	4 m
