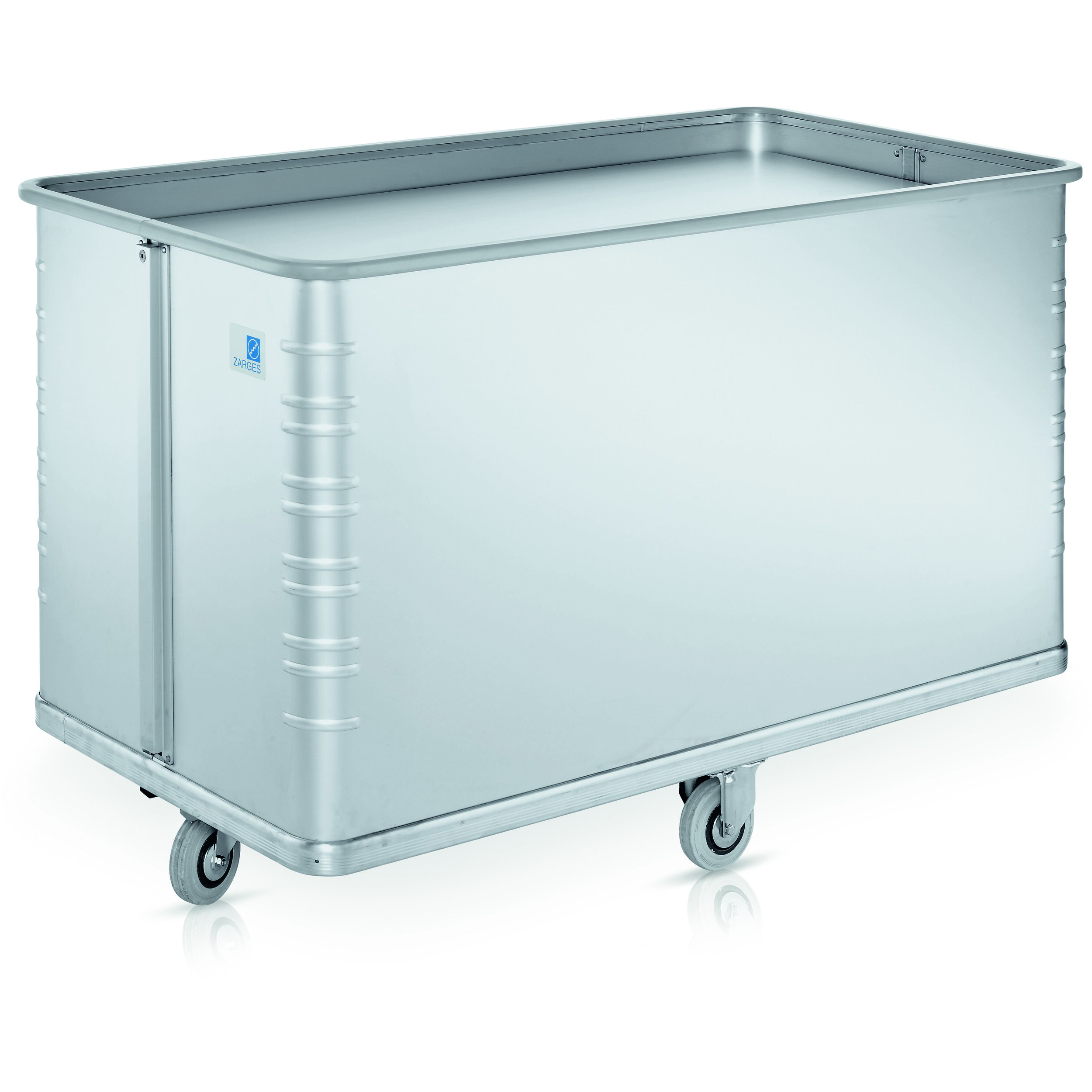

W 161 Spring Loaded Trolleys

SKU: 40756

Details

No more bending: easy access to the contents of the trolley for ergonomic working, for example in libraries, laundries or in the catering trade.

  • The base can move vertically to keep the contents at a constant height for easy access and work ergonomics.
  • Depending on the type of trolley, the load capability can be varied from 30 to 195 kg in increments of 15 kg by means of replaceable lifting elements.
  • The moveable base does not tilt, even when loaded on only one side.
  • Sturdy, generously dimensioned edge and base profile sections, high-strength positive locking ensures permanent bonding to side walls and base.
  • Beading for increased stability.
  • Effortless to manoeuvre due to easy-running, non-marking rubber wheels that are mounted on roller bearings and equipped with thread guards.
  • Trolley with vertically moveable base which keeps the load at constant height for easy access.
  • Anodised, edge profile reinforced with abrasion-resistant plastic padding.
  • Running gear: 2 swivel and 2 fixed castors, ∅ 125 mm, 40 mm wide, easy running, rubber wheels, “non-marking”, roller bearings, thread guards.
  • Castors arranged centrally for easy manoeuvring, even in the most confined spaces.
  • Corner-mounted running gear available on request.

More Information

More Information
Corner beading
Formation Chassis 2 swivel and 2 fixed castors in center arrangement
Spring force 150 kg
Volume 570 l
Internal dimensions L x W x H 1.410 mm × 700 mm × 580 mm
Outside dimensions L x W x H 1.460 mm × 750 mm × 920 mm
Material Anodised aluminium
Order number 40756
Chassis arrangement can be changed
Wheel diameter 40 mm
Wheel diameter 125 mm
Weight 31.5 kg

Variants

Order number Internal dimensions L x W x H Outside dimensions L x W x H Spring force Volume Weight
40644 1.000 mm × 650 mm × 485 mm 1.060 mm × 710 mm × 820 mm 90 kg 315 l 24.5 kg
40756 1.410 mm × 700 mm × 580 mm 1.460 mm × 750 mm × 920 mm 150 kg 570 l 31.5 kg
