- System-conform element of the ZARGES modular system for efficient logistics workflows.
- Aluminium cupboard trolley, anodised, for a wide variety of applications.
- Shelf insert for ZARGES ISO-standard modules.
- Fixed insert rails, ABS support rails ensure that the modules slide easily.
- Ergonomically shaped handle of anodised aluminium section on the swivel-castor side.
- Chassis: 2 swivel and 2 fixed castors, corner-mounted, 160 mm Ø., easy running, “non-marking,” with thread guards.
- Swivel castors with wheel brakes.
- Also suitable for container washdown facilities if appropriate special running-gear castors are used.

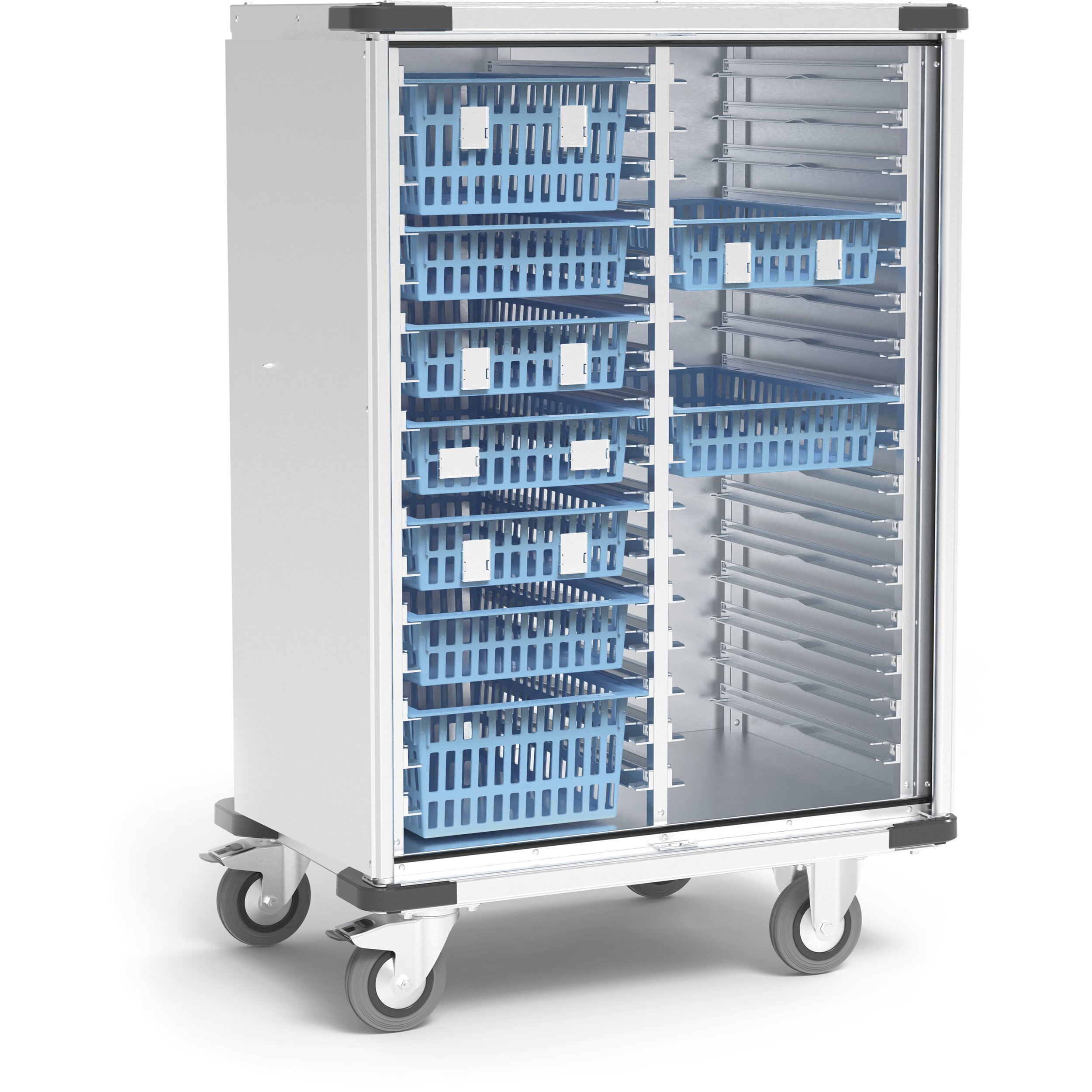

W 105 N modular cupboard trolley
SKU: 46609
Details
More Information
| No. drawers | 3 × 8 |
|---|---|
| Volume | 1055 l |
| Internal dimensions L x W x H | 1.363 mm × 620 mm × 1.253 mm |
| Outside dimensions L x W x H | 1.479 mm × 692 mm × 1.540 mm |
| Number Rows | 3 |
| No. drawers | 8 |
| Weight | 75 kg |
Variants
| Order number | Internal dimensions L x W x H | No. drawers | No. drawers | Number Rows | Outside dimensions L x W x H | Volume | Weight |
|---|---|---|---|---|---|---|---|
| 46607 | 477 mm × 620 mm × 1.253 mm | 8 | 1 × 8 | 1 | 593 mm × 692 mm × 1.540 mm | 370 l | 43 kg |
| 46608 | 920 mm × 620 mm × 1.253 mm | 16 | 2 × 16 | 2 | 1.036 mm × 692 mm × 1.540 mm | 710 l | 64 kg |
| 46609 | 1.363 mm × 620 mm × 1.253 mm | 8 | 3 × 8 | 3 | 1.479 mm × 692 mm × 1.540 mm | 1055 l | 75 kg |
