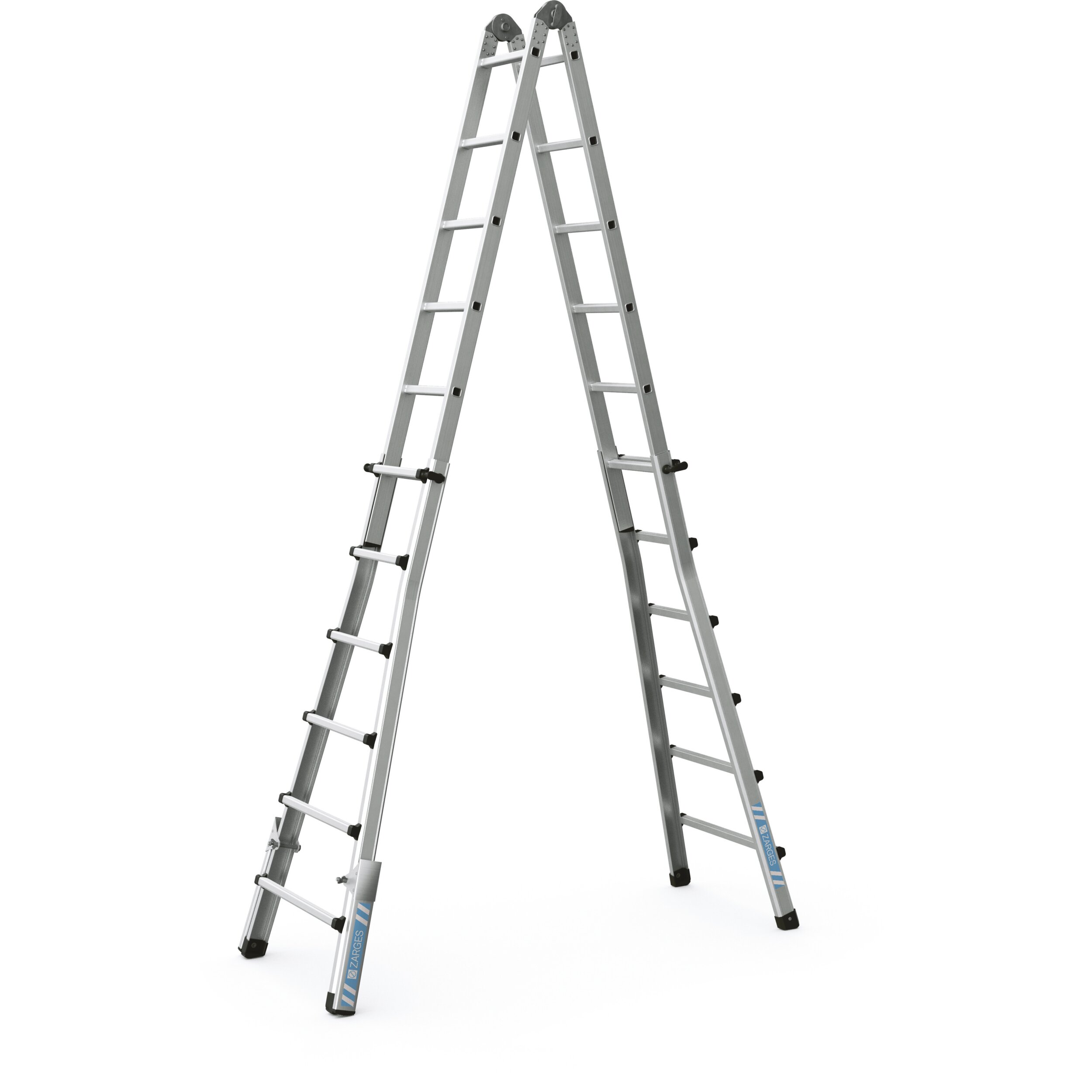

Variotec V

SKU: 42439

Details

Multifunctional, extendible ladder suitable for use on stairs, with compact transport dimensions and in sturdy, durable design.

Multifunctional, extendible ladder suitable for use on stairs, with compact transport dimensions and in sturdy, durable design.
Required working height can be set in increments corresponding to the rung spacing.
Folds down to a space-saving compact size for transport.

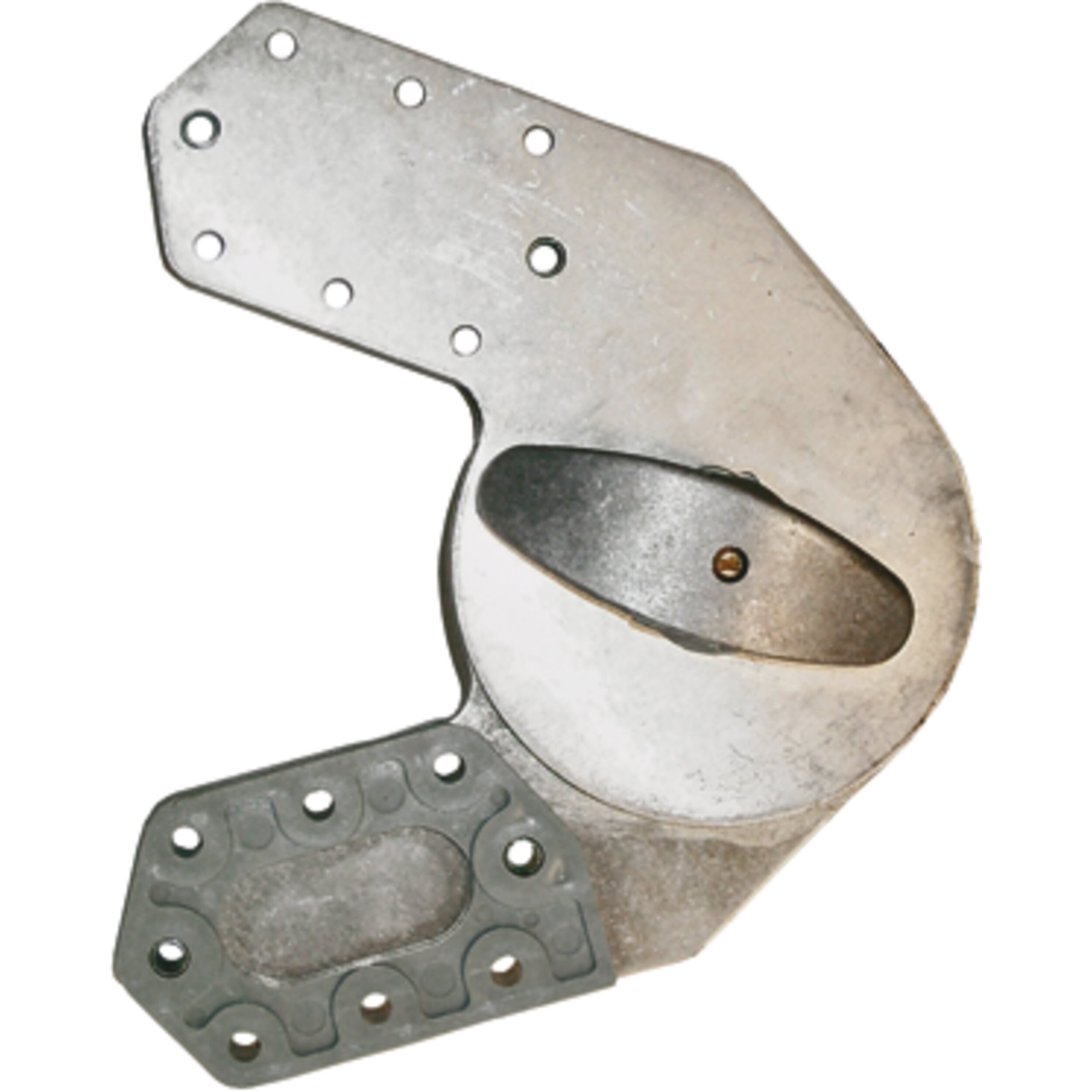

Functional robust steel hinges, bolted and easy to replace.

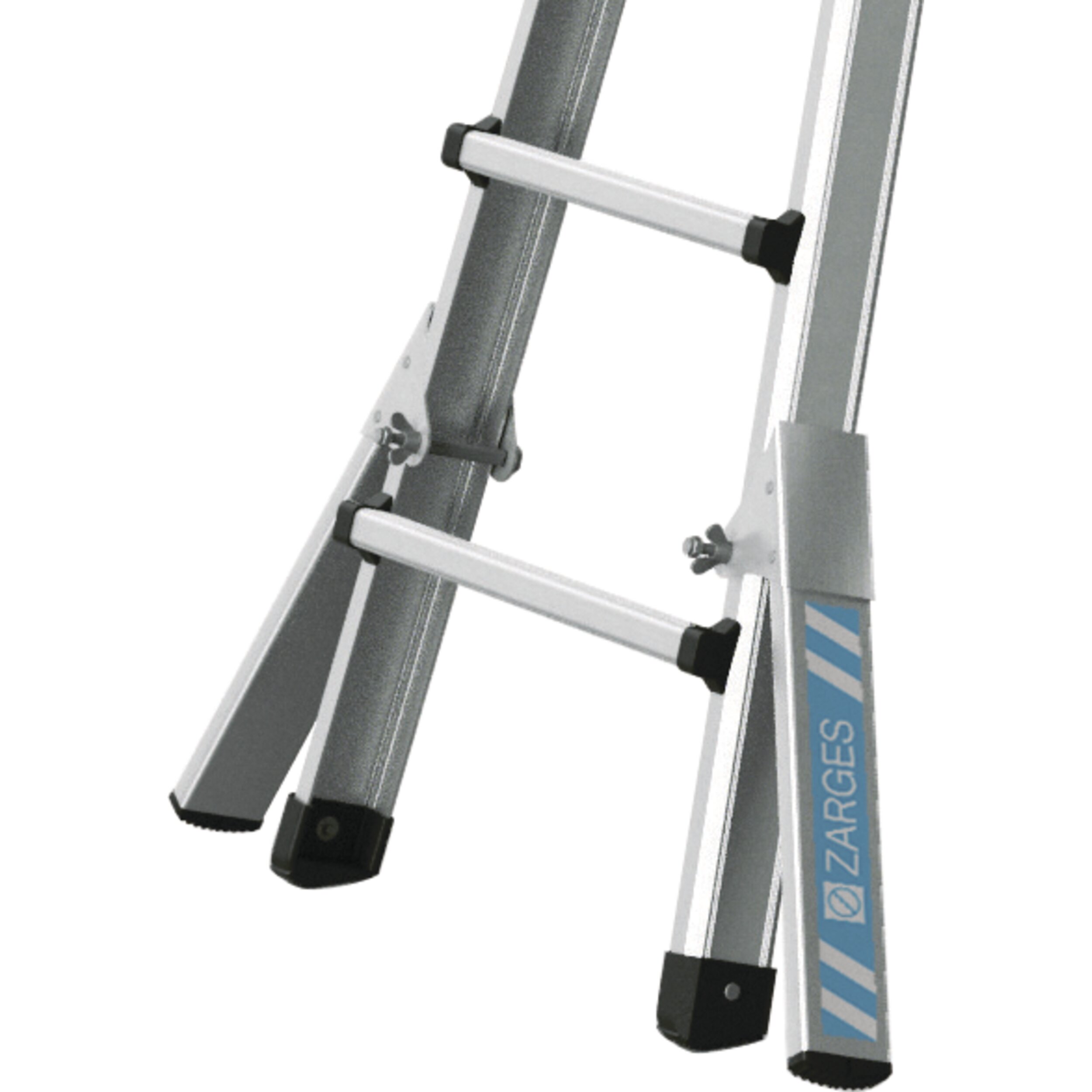

Fitted with fold-out stabilisers to allow the product to be used as a single ladder in compliance with EN131-1.
The stabilisers can be folded in to save space during transport or when the product is used as a stepladder.
Stiles made from extruded aluminium sections for maximum stability.
High strength, non-twist rung/stile connections.

More Information
Standards	EN 131-4
Warranty	10 years
Number of rungs	4 × 6
Length	1.86 m
Material	Aluminium
Load capacity	max. 150 kg
Coating	natural
Connection Stile-Rung	flanged
Tread depth	30 mm
Dimensions, folded	Missing translation
Transport dimensions	1.860 mm × approx. 780 mm × 210 mm
Stile depth	60mm / 70mm
Length as trestle	3.09 m
Working height as lean-to ladder	7.1 m
Working height as stepladder	4.4 m
Length as lean-to ladder	6.4 m
Number of rungs	6
Pitch rung/tread	265 mm
Producttype	Flanged telescopic multi-function ladder, 4-section
Type rung/tread	serrated
Weight	22 kg
Width	0.78 m
Stile depth	60 mm
Stile depth	70 mm
Number of rungs / treads	4 × 6

Order number	Length as lean-to ladder	Length as trestle	Number of rungs	Number of rungs	Transport dimensions	Weight	Working height as lean-to ladder	Working height as stepladder
42437	4.17 m	2.2 m	4	4 × 4	1.310 mm × approx. 640 mm × 200 mm	15 kg	4.95 m	3.4 m
42438	5.29 m	2.7 m	5	4 × 5	1.580 mm × approx. 710 mm × 200 mm	18 kg	6.05 m	3.9 m
42439	6.4 m	3.09 m	6	4 × 6	1.860 mm × approx. 780 mm × 210 mm	22 kg	7.1 m	4.4 m
