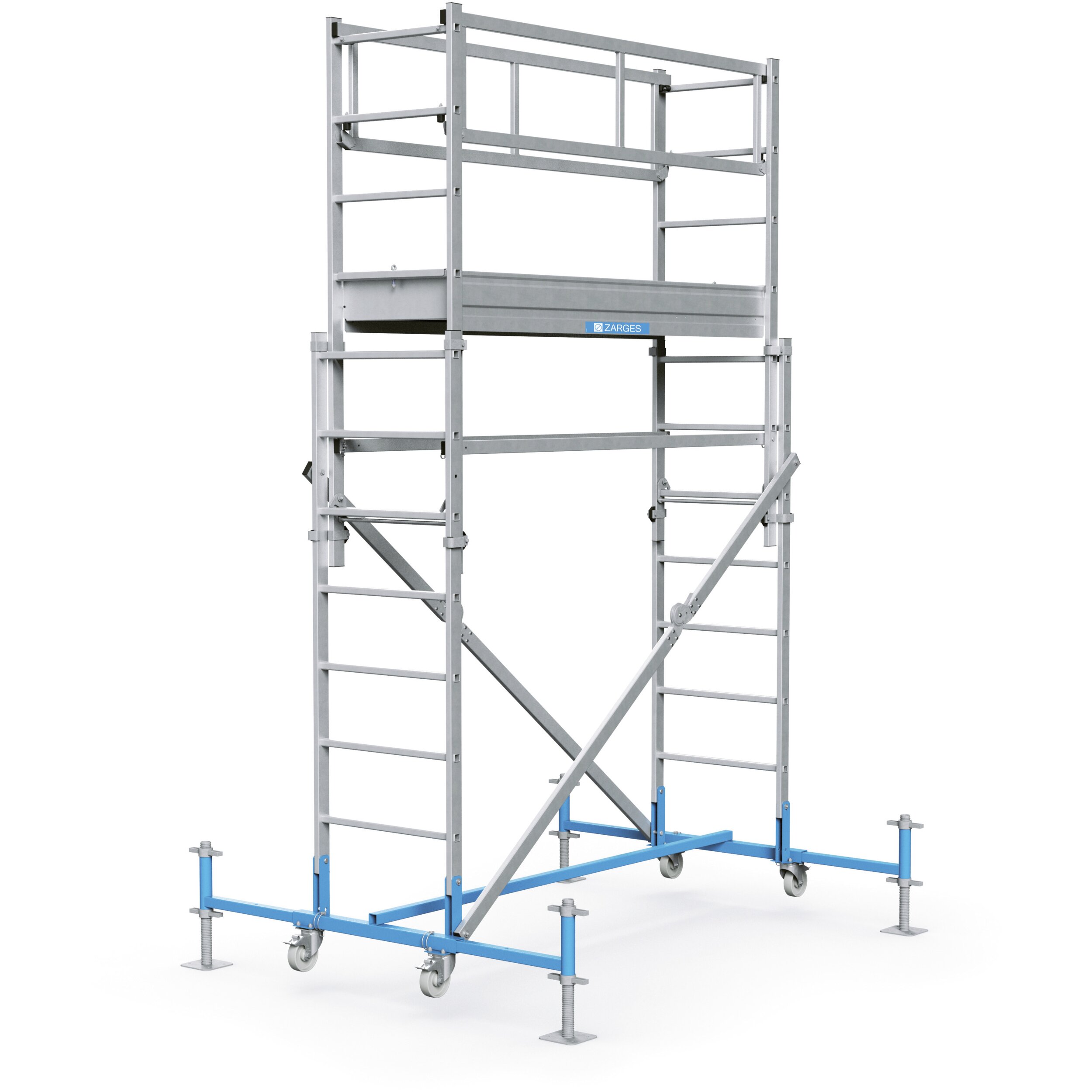

Variomaster T

Details

For quick use and safe standing: folds to compact size and is quickly set up.

  • For quick use and safe standing: folds to compact size and is quickly set up.
  • Height can be effortlessly adjusted by just one person due to the self-locking mechanism similar to a push-up ladder.
  • Can be easily folded to a compact size for transport and storage.
  • Swing-out stabilisers with sturdy height adjusters for stability and for levelling out uneven floor/ground surfaces.
  • Large-area work platform 0.50 x 1.95 m or 0.60 x 2.50 m.
  • Peripheral railings for maximum safety.
  • Simple height adjustment according to the self-locking push-up ladder principle, allowing you to reach different heights with only one work platform.
  • Height adjustment can be operated by one person.
  • Easily collapsible for transport and storage.
  • Highly mobile and able to pass through doors when erected and collapsed thanks to rollers (Order No. 53794).
  • No ballast weights are required for indoor use.
  • Two sizes with height adjustment from 1.25 m to 2.46 m or 1.81 m to 3.58 m platform height.
  • Scaffolding category 3 (can be loaded up to 200 kg/m²) according to DIN EN 1 004.

More Information

More Information
Platform length 2.5 m
Warranty 10 years
Platform width 0.6 m
Load capacity max. 300 kg
Guardrail height 1 m
Platform material glued plywood panel
Platform height Missing translation
Tread depth 30 mm

Variants

Order number Footpoint, stabiliser rod extended L x W Footpoint, stabiliser rod retracted L x W Overall height Overall height Platform height Transport dimensions Weight Width extended Width retracted Working height closed length extended length
53794 1,9m × 2,3 m 0,8m × 2,3 m 2,31m - 3,52m 2.31 m 1,25m - 2,46m 2.290 mm × 780 mm × 750 mm 92 kg 2.3 m 2.3 m 4.5 m 0.8 m 1.9 m
53795 2,3m × 2,85 m 1,2m × 2,85 m 2,87m - 4,64m 2.87 m 1,81m - 3,58m 2.850 mm × 1.180 mm × 750 mm 119 kg 2.85 m 2.85 m 5.6 m 1.2 m 2.3 m
