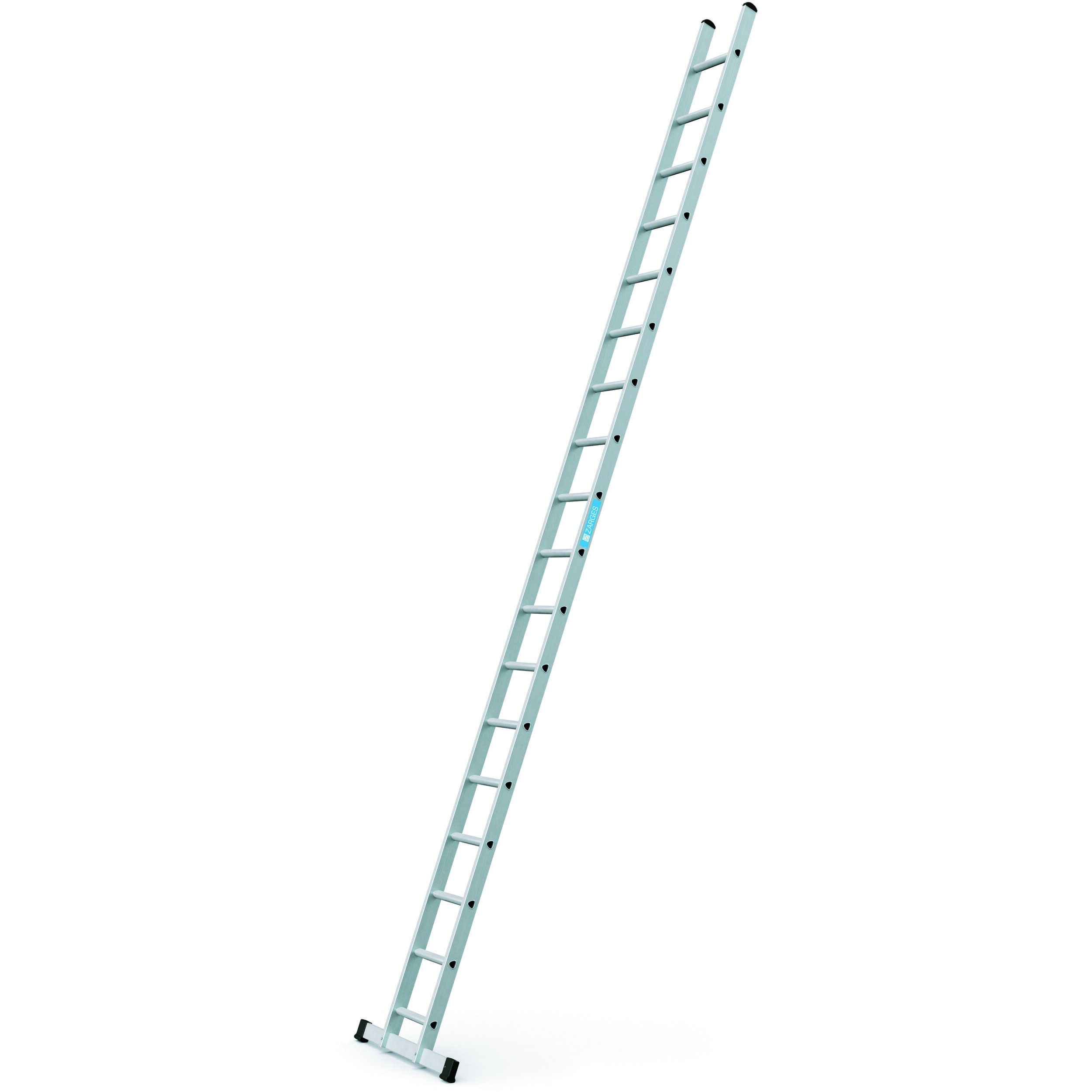

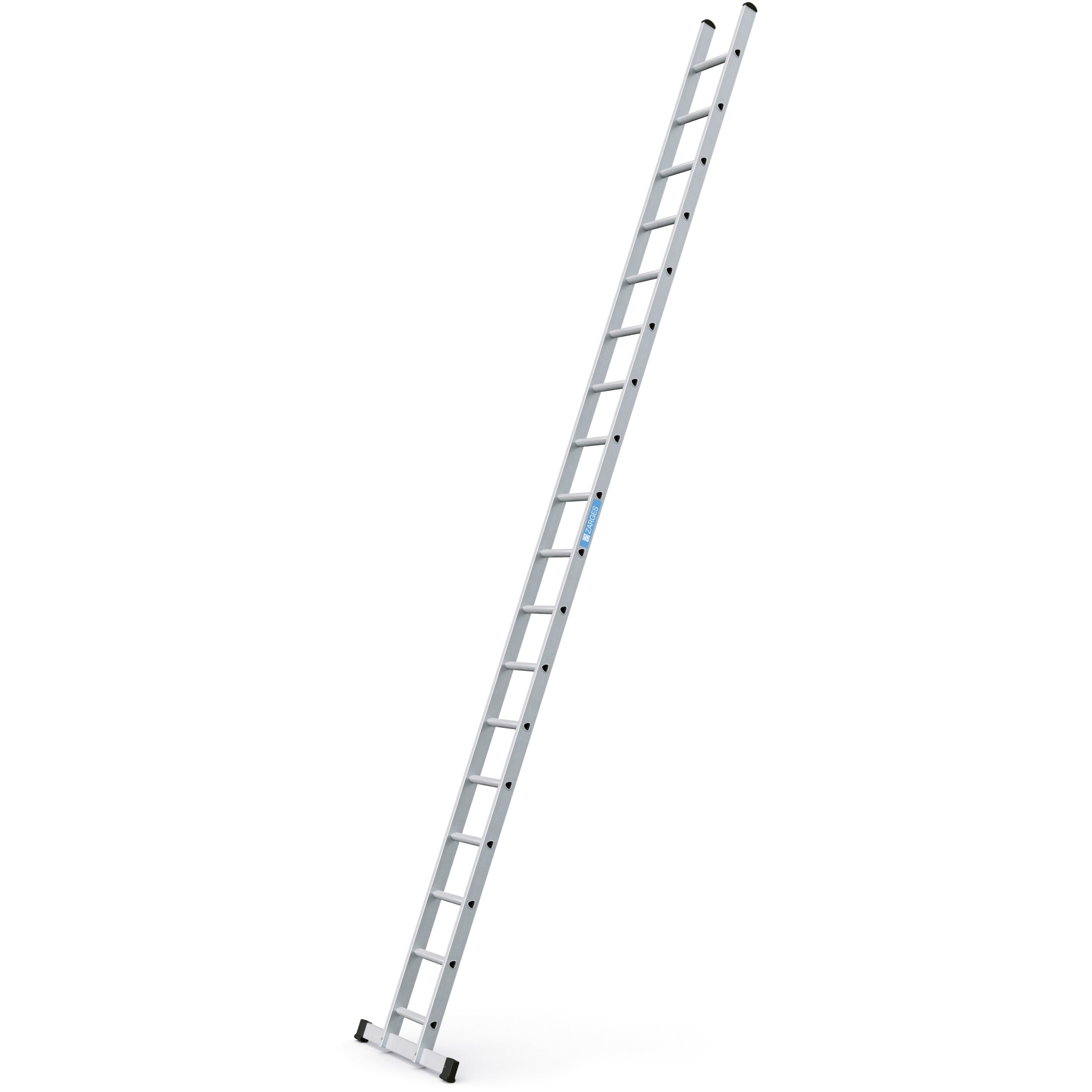

Strato DL

SKU: 44818

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents
main product photo

Details

The inexpensive alternative for safe ascent and quick and flexible application.

  • The inexpensive alternative for safe ascent and quick and flexible application.
  • Robust extruded-section triangular rungs with step horizontal in working position.
  • Outside width: 350 mm.
  • Special rung design creates a broad step area.
  • Stiles made from extruded aluminium sections for maximum stability.
  • Replaceable 2-component plastic end caps ensure secure positioning without the risk of slipping.
  • High strength, non-twist rung/stile connections.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Warranty 10 years
Standards EN 131 professional
Material Aluminium
Load capacity max. 150 kg
Coating natural
Connection Stile-Rung flanged
Tread depth 38 mm
Transport dimensions 5.220 mm × 360 mm × 75 mm
Working height 6 m
Overall length 5.23 m
Number of rungs 18
Pitch rung/tread 265 mm
Producttype Flanged single ladder with rungs
Type rung/tread serrated
Weight 11.2 kg
Wide crosspiece 0.89 m
Stile depth 73 mm
Number of rungs / treads 18

Variants

Order number Number of rungs Overall length Stile depth Transport dimensions Weight Wide crosspiece Working height
44808 8 2.42 m 58 mm 2.420 mm × 360 mm × 60 mm 4.3 kg 3.3 m
44810 10 2.98 m 58 mm 2.980 mm × 360 mm × 60 mm 5.3 kg 3.85 m
44812 12 3.54 m 68 mm 3.540 mm × 360 mm × 70 mm 7.9 kg 0.79 m 4.4 m
44814 14 4.11 m 73 mm 4.110 mm × 360 mm × 75 mm 9.2 kg 0.79 m 4.9 m
44816 16 4.67 m 73 mm 4.660 mm × 360 mm × 75 mm 10.1 kg 0.89 m 5.45 m
44818 18 5.23 m 73 mm 5.220 mm × 360 mm × 75 mm 11.2 kg 0.89 m 6 m
44819 20 5.9 m 73 mm 5.780 mm × 360 mm × 75 mm 12.4 kg 0.99 m 6.55 m
