Stationary bridging steps

SKU: 40355908

Jetzt konfigurieren
Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents Spare parts and accessories

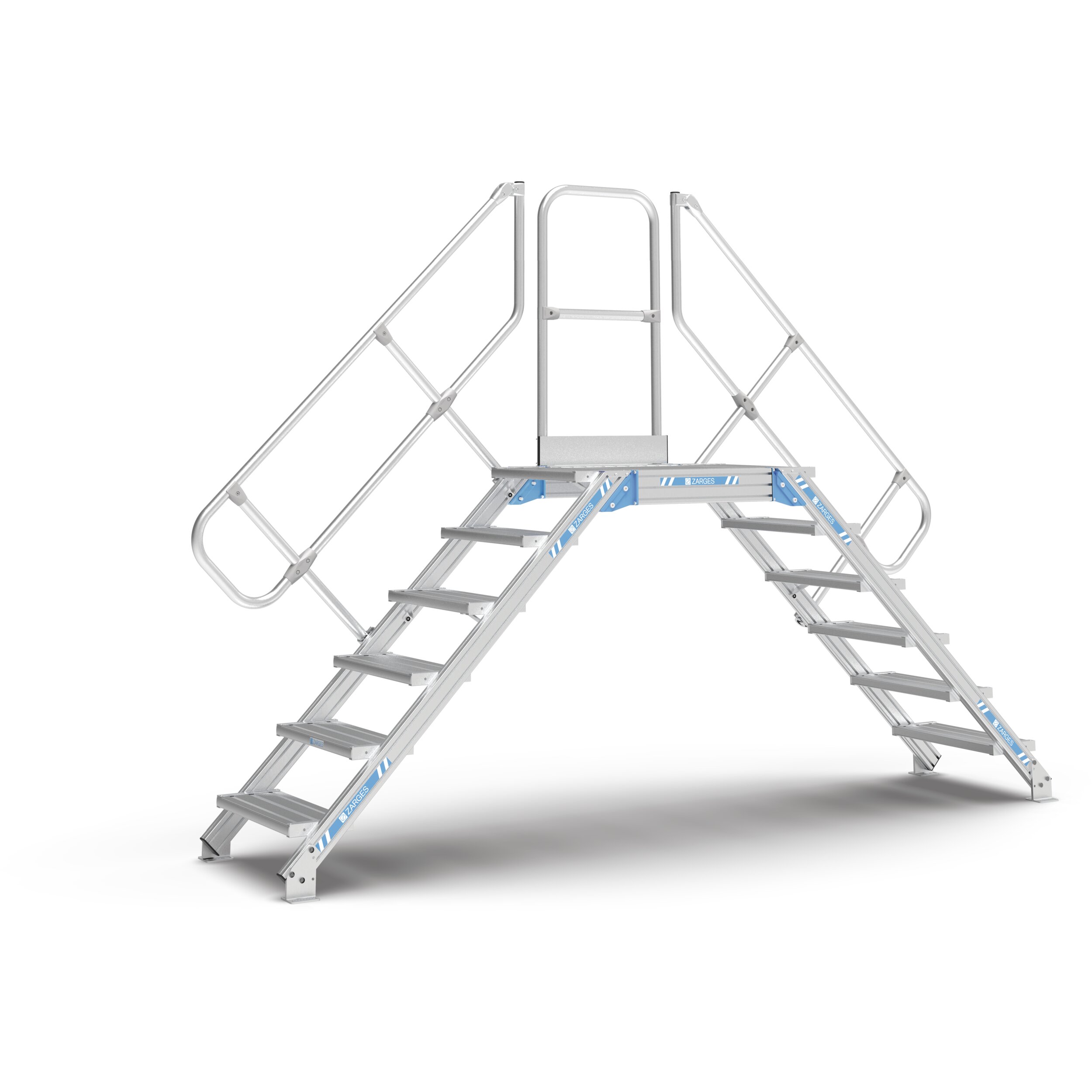

main product photo

Details

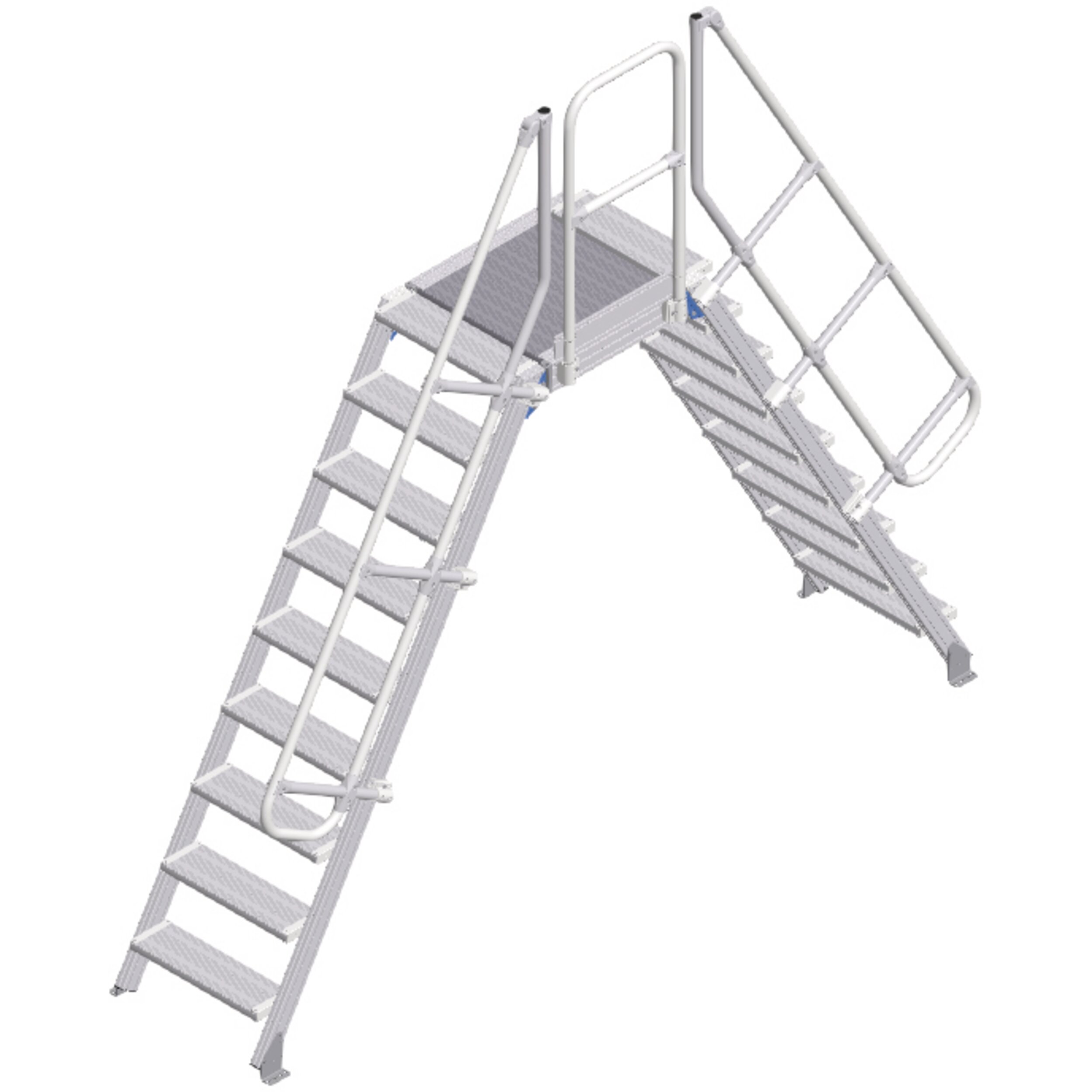

Stationary or mobile platform for bridging obstacles or as a work platform with access from both sides. Large-area platform with guardrail for safe and ergonomic working at heights.

  • Selection of tread widths 600 mm, 800 mm or 1000 mm.
  • Serrated aluminium (R10) step and platform surfaces as standard. Also available as steel open grid (R12) and steel perforated plate (R13) for extra non-slip properties.
  • Individually adjustable platform lengths.
  • Optionally with chassis for mobile applications.
  • Individual guardrail configuration on the platform, optionally with swing door or pole barrier.
  • Maximum flexibility with optional handrails and guardrails which can be removed without tools.
  • Quick and simple assembly with the ZARGES connection system with a high level of pre-assembly.
  • Different angles of inclination, 45° for comfortable access, 60° for confined spaces.

Hints and special features

  • We recommend equipping the product in accordance with the German Equipment and Product Safety Act (ProdSG) with two-sided handrails and, for steps with platforms or maintenance platforms, all-round fall protection (e.g. guardrails). If handrails or guardrails are not desired, the operator must ensure sufficient regulatory protection.
  • Standard applied: DIN EN ISO 14 122.

More Information

More Information
Standards EN ISO 14122
Warranty 10 years
Platform length 600 mm
load-capacity-step-td 150 kg
Tread width 600 mm
Load capacity max. 300 kg
Order number 40355908
Clear height, stationary 2130 mm
Inclination 60 °
Number of treads 9
Overall span 3358 mm
Number of rungs / treads 9

Variants

Order number Clear height, stationary Inclination Number of treads Overall span Tread width
40355933 740 mm 45 ° 4 2431 mm 600 mm
40355934 950 mm 45 ° 5 2851 mm 600 mm
40355935 1170 mm 45 ° 6 3291 mm 600 mm
40355936 1380 mm 45 ° 7 3711 mm 600 mm
40355937 1600 mm 45 ° 8 4151 mm 600 mm
40355938 1810 mm 45 ° 9 4571 mm 600 mm
40355939 2030 mm 45 ° 10 5011 mm 600 mm
40355940 2240 mm 45 ° 11 5431 mm 600 mm
40355943 740 mm 45 ° 4 2431 mm 800 mm
40355944 950 mm 45 ° 5 2851 mm 800 mm
40355945 1170 mm 45 ° 6 3291 mm 800 mm
40355946 1380 mm 45 ° 7 3711 mm 800 mm
40355947 1600 mm 45 ° 8 4151 mm 800 mm
40355948 1810 mm 45 ° 9 4571 mm 800 mm
40355949 2030 mm 45 ° 10 5011 mm 800 mm
40355950 2240 mm 45 ° 11 5431 mm 800 mm
40355953 740 mm 45 ° 4 2431 mm 1000 mm
40355954 950 mm 45 ° 5 2851 mm 1000 mm
40355955 1170 mm 45 ° 6 3291 mm 1000 mm
40355956 1380 mm 45 ° 7 3711 mm 1000 mm
40355957 1600 mm 45 ° 8 4151 mm 1000 mm
40355958 1810 mm 45 ° 9 4571 mm 1000 mm
40355959 2030 mm 45 ° 10 5011 mm 1000 mm
40355960 2240 mm 45 ° 11 5431 mm 1000 mm
40355903 880 mm 60 ° 4 1915 mm 600 mm
40355904 1130 mm 60 ° 5 2203 mm 600 mm
40355905 1380 mm 60 ° 6 2492 mm 600 mm
40355906 1630 mm 60 ° 7 2781 mm 600 mm
40355907 1880 mm 60 ° 8 3069 mm 600 mm
40355908 2130 mm 60 ° 9 3358 mm 600 mm
40355909 2380 mm 60 ° 10 3647 mm 600 mm
40355910 2630 mm 60 ° 11 3935 mm 600 mm
40355913 880 mm 60 ° 4 1915 mm 800 mm
40355914 1130 mm 60 ° 5 2203 mm 800 mm
40355915 1380 mm 60 ° 6 2492 mm 800 mm
40355916 1630 mm 60 ° 7 2781 mm 800 mm
40355917 1880 mm 60 ° 8 3069 mm 800 mm
40355918 2130 mm 60 ° 9 3358 mm 800 mm
40355919 2380 mm 60 ° 10 3647 mm 800 mm
40355920 2630 mm 60 ° 11 3935 mm 800 mm
40355923 880 mm 60 ° 4 1915 mm 1000 mm
40355924 1130 mm 60 ° 5 2203 mm 1000 mm
40355925 1380 mm 60 ° 6 2492 mm 1000 mm
40355926 1630 mm 60 ° 7 2781 mm 1000 mm
40355927 1880 mm 60 ° 8 3069 mm 1000 mm
40355928 2130 mm 60 ° 9 3358 mm 1000 mm
40355929 2380 mm 60 ° 10 3647 mm 1000 mm
40355930 2630 mm 60 ° 11 3935 mm 1000 mm
