Skymaster X

SKU: 41536

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents Spare parts and accessories

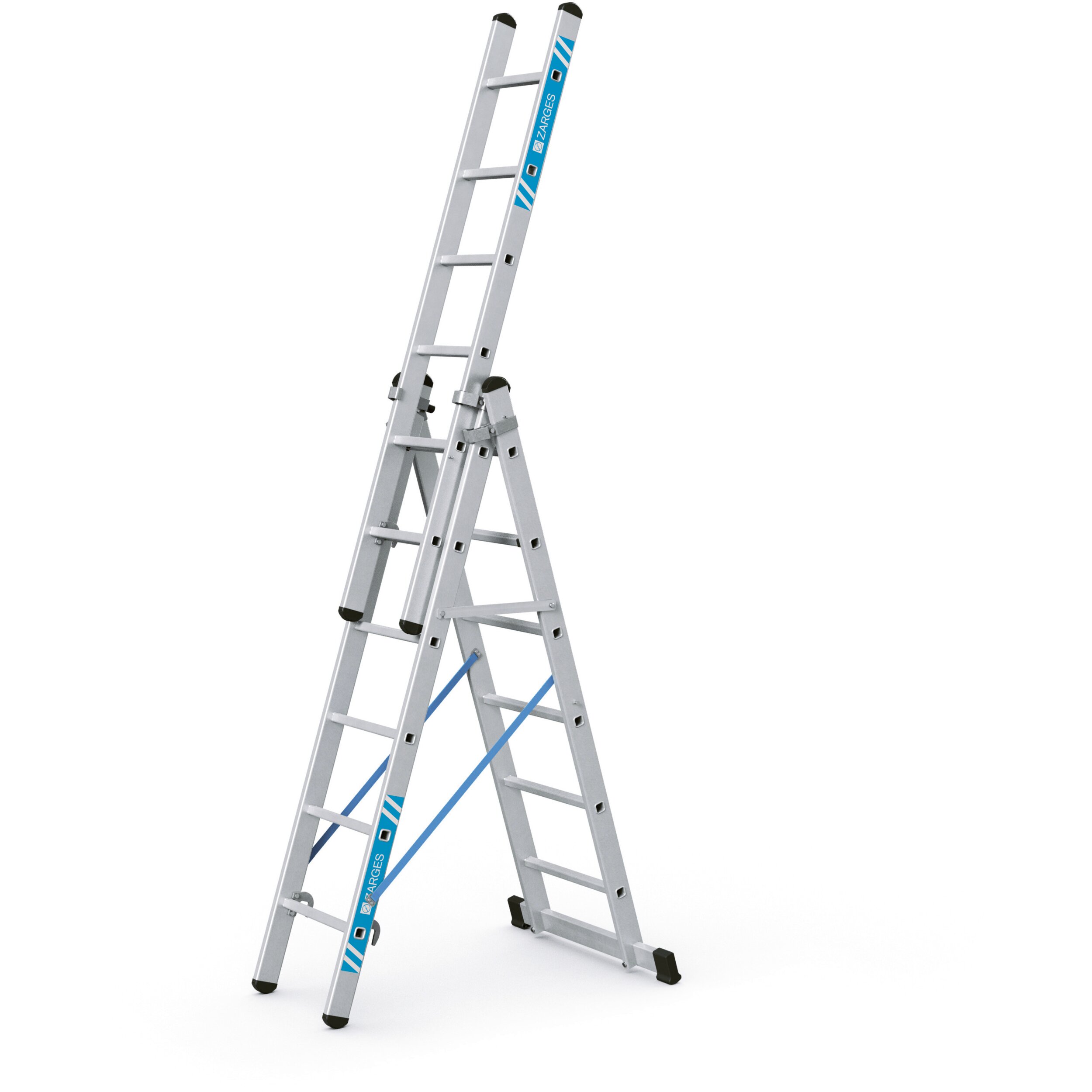

main product photo

Details

Convertible to take on challenging tasks with greater safety.

  • Convertible to take on challenging tasks with greater safety.
  • Can be used on steps/stairs for Order Nos. 41536-41540.
  • One rigid connection.
  • Upper ladder can also be used separately as single ladders (Order No. 41536-41540).

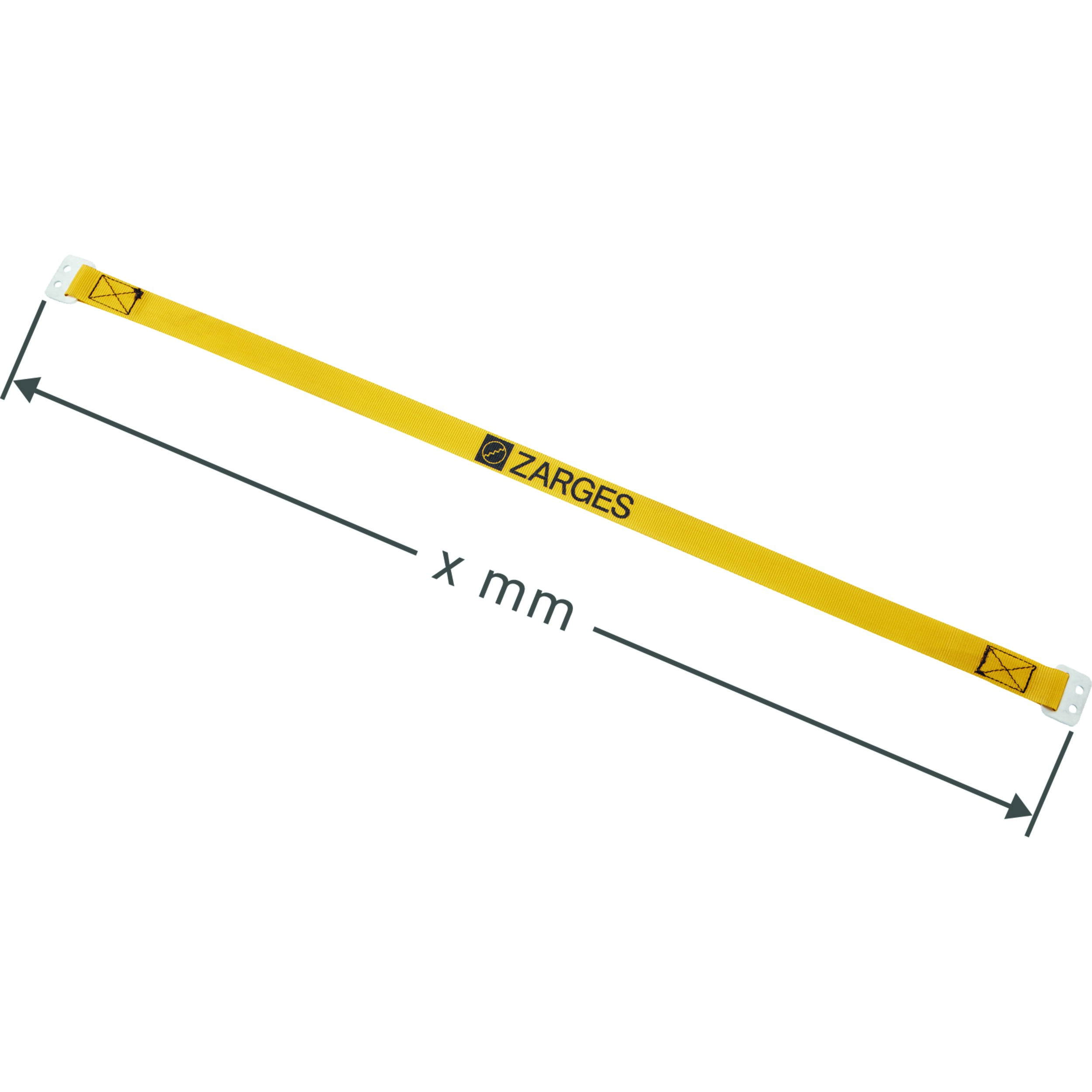

  • Strong Perlon straps.
  • Optimum wrap-around stile guide that encompasses the whole rung.
  • Lift-off retainer and guides are bolted in so that they can be replaced.
  • Replaceable 2-component plastic end caps ensure secure positioning without the risk of slipping.
  • Rungs and stiles made from extruded aluminium sections.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Standards EN 131 professional
Warranty 10 years
Number of rungs 3 × 6
Load capacity max. 150 kg
Material Aluminium
Rigid locking bar on one side
Coating natural
Connection Stile-Rung flanged
Tread depth 30 mm
Transport dimensions 1.880 mm × 500 mm × 180 mm
Working height as 3-part single ladder 5 m
Length as 2-part single ladder and as stepladder with push-on section 3 m
Ladder length as 3-part single ladder 4.1 m
Overall length, retracted 1.9 m
Number of rungs 6
Pitch rung/tread 265 mm
Producttype Flanged multi-function ladder, 3-section
Type rung/tread serrated
Weight 13.8 kg
Wide crosspiece 0.8 m
Stile depth 68 mm
Number of rungs / treads 3 × 6

Variants

Order number Ladder length as 3-part single ladder Length as 2-part single ladder and as stepladder with push-on section Number of rungs Number of rungs Overall length, retracted Stile depth Transport dimensions Weight Wide crosspiece Working height as 3-part single ladder
41536 4.1 m 3 m 6 3 × 6 1.9 m 68 mm 1.880 mm × 500 mm × 180 mm 13.8 kg 0.8 m 5 m
41537 5 m 3.6 m 7 3 × 7 2.2 m 68 mm 2.160 mm × 500 mm × 180 mm 15 kg 0.9 m 5.8 m
41538 5.8 m 4.1 m 8 3 × 8 2.45 m 73 mm 2.440 mm × 500 mm × 200 mm 17.5 kg 1 m 6.65 m
41539 6.7 m 4.7 m 9 3 × 9 2.7 m 85 mm 2.730 mm × 500 mm × 200 mm 20 kg 1.1 m 7.45 m
41540 6.9 m 4.95 m 10 3 × 10 3 m 85 mm 3.010 mm × 500 mm × 210 mm 25.2 kg 1.1 m 7.7 m
41542 8.6 m 6.1 m 12 3 × 12 3.55 m 98 mm 3.590 mm × 500 mm × 230 mm 30.1 kg 1.2 m 9.35 m
41544 9.7 m 6.95 m 14 3 × 14 4.15 m 98 mm 4.140 mm × 500 mm × 230 mm 37.9 kg 1.2 m 10.4 m
