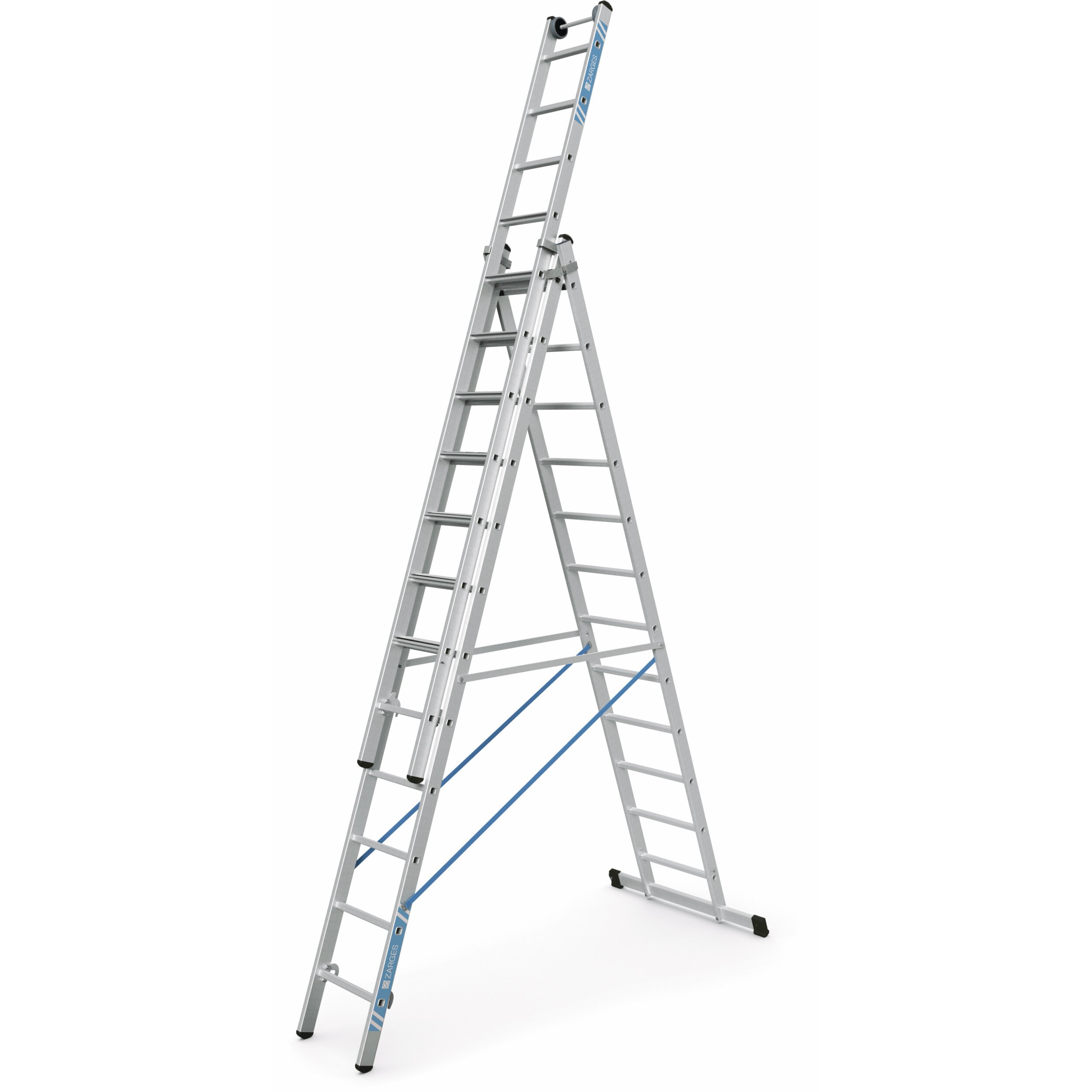

Skymaster Plus X

SKU: 41580

Details

One ladder, many functions: the flexible solution for accessing higher places safely and providing extra stability. The ladder is particularly safe and comfortable to use due to the 80 mm deep treads on the upper ladder.

  • One ladder, many functions: the flexible solution for accessing higher places safely and providing extra stability. The ladder is particularly safe and comfortable to use due to the 80 mm deep treads on the upper ladder.
  • Particularly light thanks to the combination of stepladder and rung ladder (hybrid design).
  • Maximum stability thanks to rigid connection on both sides.
  • The horizontal stabiliser bar is fitted with castors for ergonomic transport.
  • Upper ladder with top wheel assembly.
  • Upper ladder can also be used separately as single ladders for Order Nos. 41578-41579.
  • Strong Perlon straps.
  • Optimum wrap-around stile guide that encompasses the whole rung.
  • Lift-off retainer and guides are bolted in so that they can be replaced.

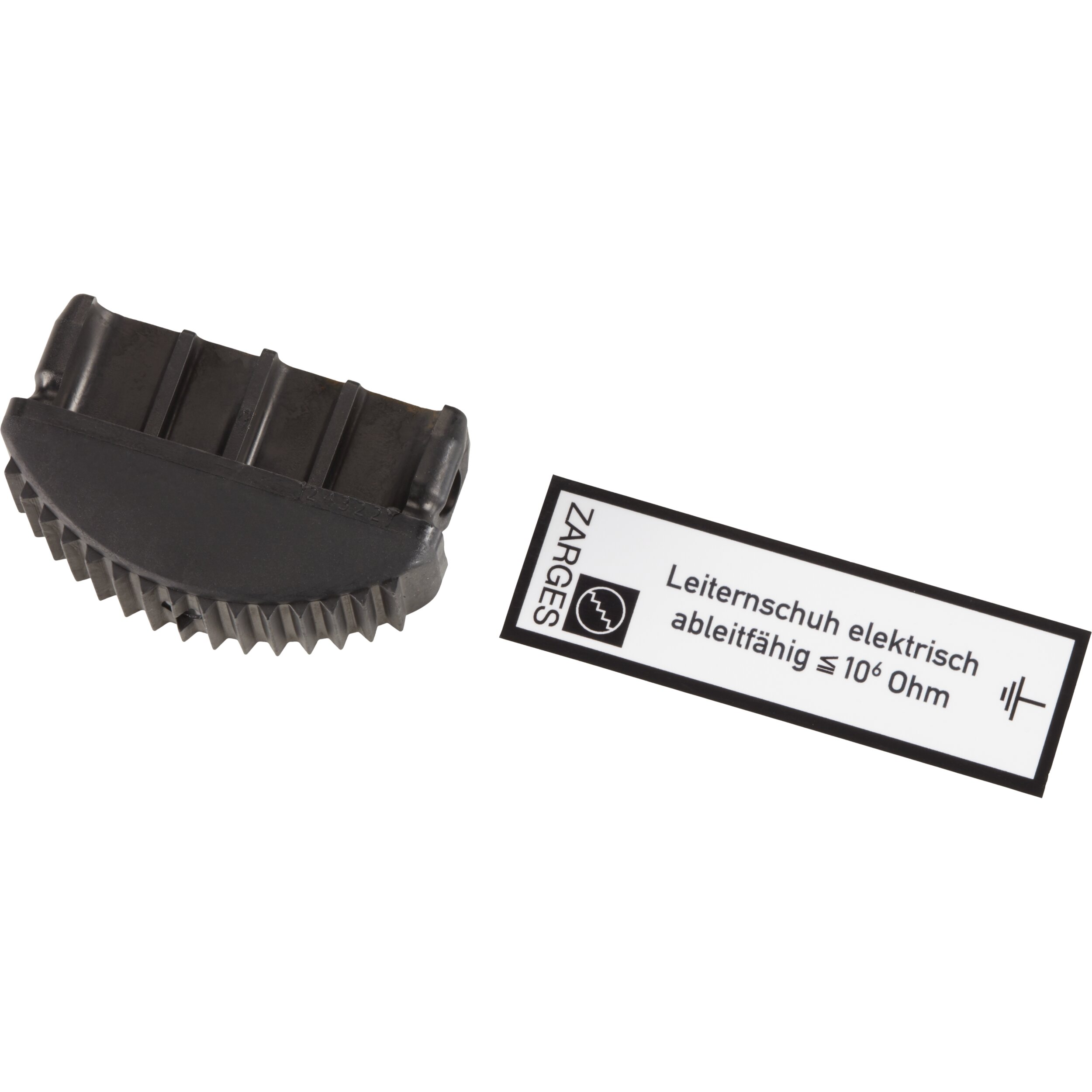

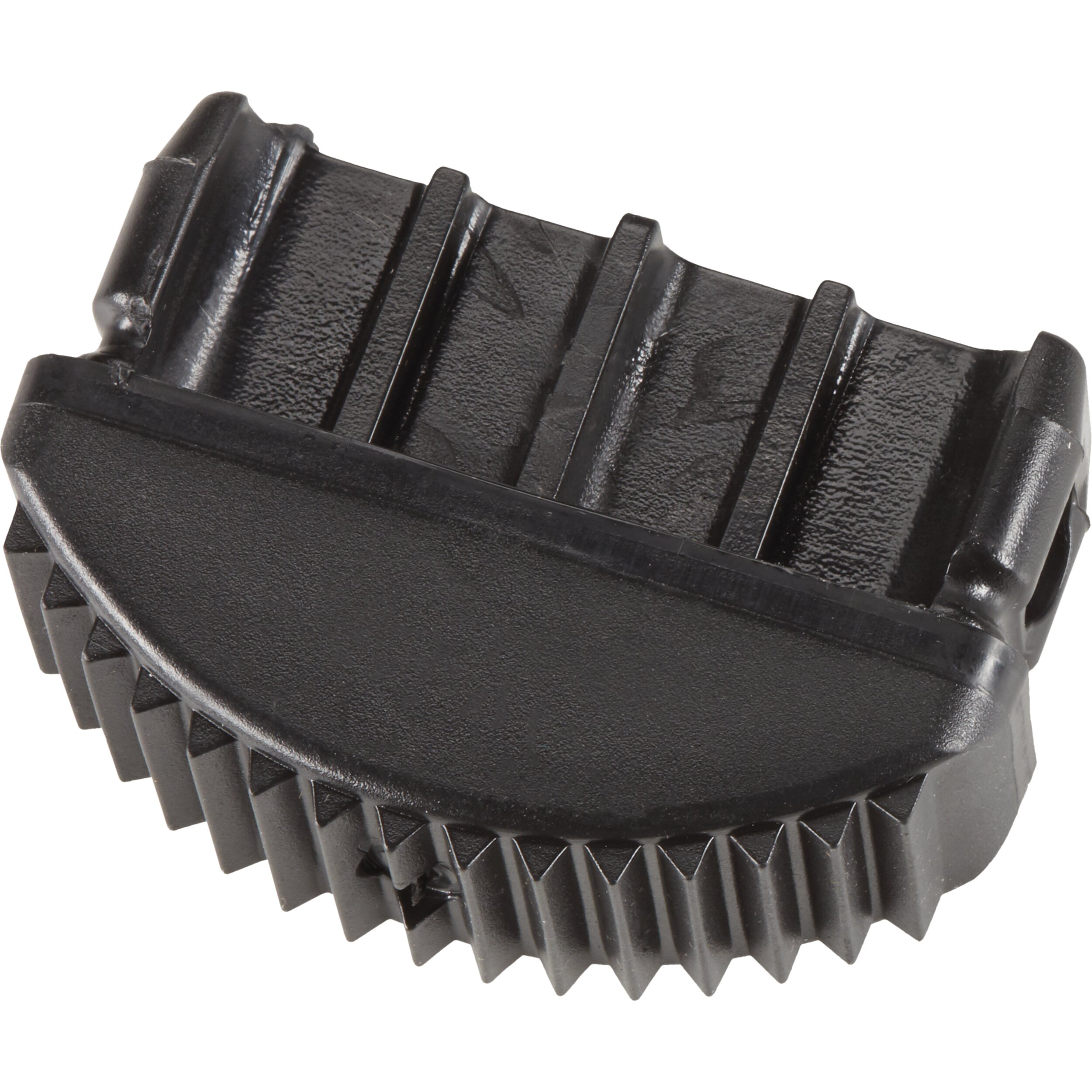

  • Replaceable 2-component plastic end caps ensure secure positioning without the risk of slipping.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Number of rungs 3 × 12
Warranty 10 years
Standards EN 131 professional
Material Aluminium
Load capacity max. 150 kg
Rigid locking bar on both sides
Coating natural
Connection Stile-Rung flanged
Transport dimensions approx. 3.585 mm × approx. 500 mm × approx. 245 mm
Working height as 3-part single ladder max. approx. 9.15 m
Length as 2-part single ladder and as stepladder with push-on section 6.1 m
Ladder length as 3-part single ladder 8.61 m
Overall length, retracted 3.58 m
Wheels Rubber
Number of rungs 12
Pitch rung/tread 265 mm
Producttype Flanged multi-function ladder, 3-section
Type rung/tread serrated
Weight 32.1 kg
Wide crosspiece 1.2 m
Stile depth 98 mm
Number of rungs / treads 3 × 12

Variants

Order number Ladder length as 3-part single ladder Length as 2-part single ladder and as stepladder with push-on section Number of rungs Number of rungs Overall length, retracted Stile depth Transport dimensions Weight Wide crosspiece Working height as 3-part single ladder
41578 5.81 m 4.13 m 8 3 × 8 2.45 m 73 mm approx. 2.450 mm × approx. 500 mm × approx. 220 mm 18.8 kg 1 m max. approx. 6.55 m
41579 6.88 m 4.94 m 10 3 × 10 3.01 m 85 mm approx. 3.015 mm × approx. 500 mm × approx. 230 mm 26.2 kg 1.185 m max. approx. 7.6 m
41580 8.61 m 6.1 m 12 3 × 12 3.58 m 98 mm approx. 3.585 mm × approx. 500 mm × approx. 245 mm 32.1 kg 1.2 m max. approx. 9.15 m
41581 9.73 m 6.94 m 14 3 × 14 4.14 m 98 mm approx. 4.145 mm × approx. 500 mm × approx. 245 mm 36.6 kg 1.2 m max. approx. 10.2 m
