Skymaster DX

SKU: 44839

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents

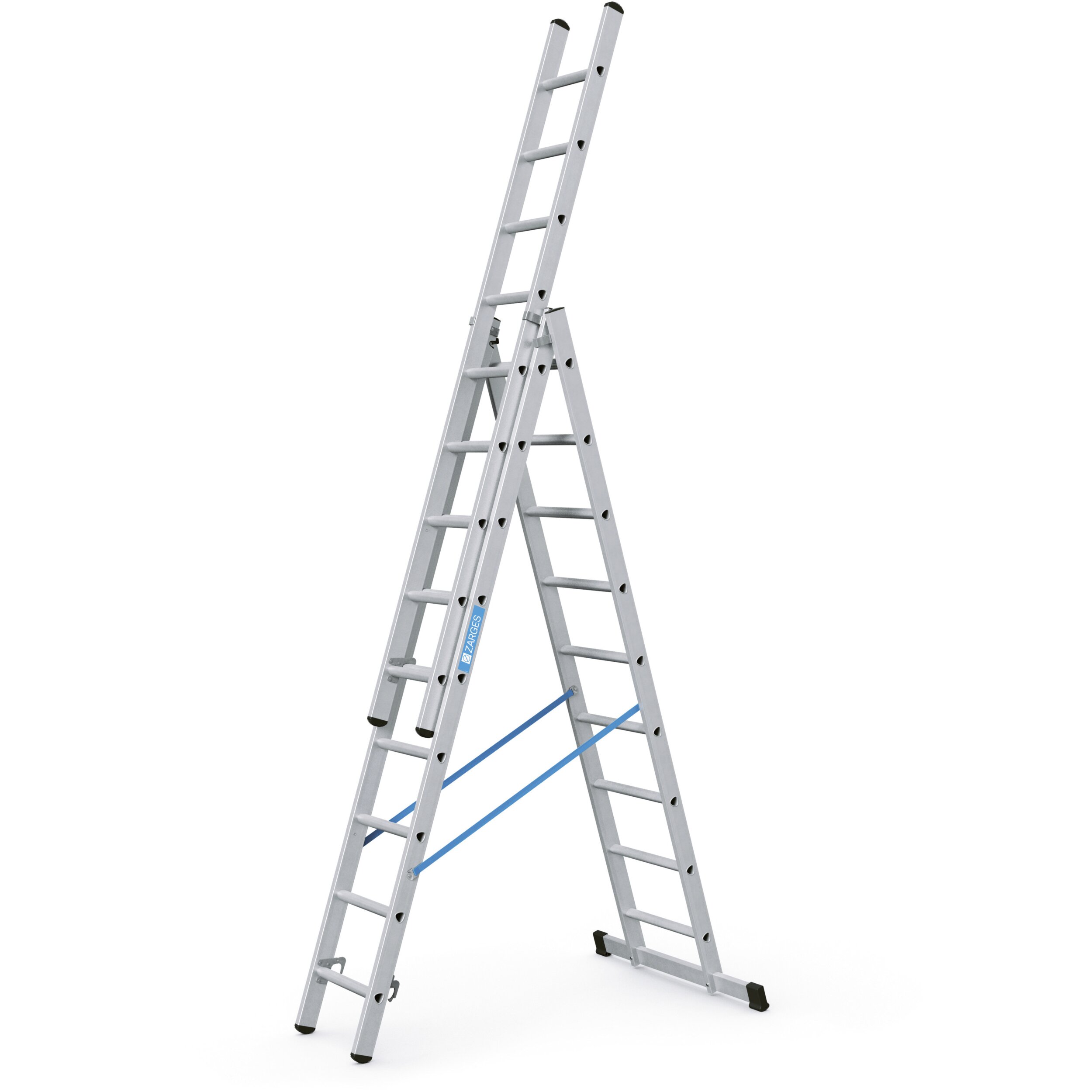

main product photo

Details

The basic version offers high functionality and flexibility and an excellent price/performance ratio.

  • The basic version offers high functionality and flexibility and an excellent price/performance ratio.
  • Upper ladder can also be used separately as single ladders for Order Nos. 44837-44840.
  • Robust extruded-section triangular rungs with step horizontal in working position.
  • Upper ladder can also be used separately as single ladders.
  • Strong Perlon straps.
  • Stiles made from extruded aluminium sections for maximum stability.
  • Replaceable 2-component plastic end caps ensure secure positioning without the risk of slipping.
  • High strength, non-twist rung/stile connections.
  • Cannot be used on stairs.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Standards EN 131 professional
Warranty 10 years
Number of rungs 3 × 9
Material Aluminium
Load capacity max. 150 kg
Coating natural
Connection Stile-Rung flanged
Tread depth 38 mm
Transport dimensions 2.690 mm × 500 mm × 190 mm
Working height as 3-part single ladder 6.85 m
Length as 2-part single ladder and as stepladder with push-on section 4.4 m
Ladder length as 3-part single ladder 6.1 m
Overall length, retracted 2.7 m
Number ladderparts 3
Number of rungs 9
Pitch rung/tread 265 mm
Producttype Flanged multi-function ladder, 3-section
Type rung/tread serrated
Weight 18 kg
Wide crosspiece 1 m
Stile depth 73 mm
Number of rungs / treads 3 × 9

Variants

Order number Ladder length as 3-part single ladder Length as 2-part single ladder and as stepladder with push-on section Number of rungs Number of rungs Overall length, retracted Stile depth Transport dimensions Weight Wide crosspiece Working height as 3-part single ladder
44837 4.4 m 3.25 m 7 3 × 7 2.14 m 58 mm 2.130 mm × 500 mm × 170 mm 13.8 kg 0.8 m 5.2 m
44838 5.25 m 3.85 m 8 3 × 8 2.42 m 68 mm 2.410 mm × 500 mm × 170 mm 16.3 kg 0.9 m 6 m
44839 6.1 m 4.4 m 9 3 × 9 2.7 m 73 mm 2.690 mm × 500 mm × 190 mm 18 kg 1 m 6.85 m
44840 6.65 m 4.65 m 10 3 × 10 2.98 m 73 mm 2.970 mm × 500 mm × 190 mm 20.5 kg 1.1 m 7.35 m
44841 7.2 m 5.25 m 11 3 × 11 3.26 m 85 mm 3.270 mm × 500 mm × 200 mm 22.3 kg 1.1 m 7.9 m
44842 8.3 m 5.8 m 12 3 × 12 3.54 m 85 mm 3.550 mm × 500 mm × 220 mm 25.9 kg 1.2 m 9 m
44844 9.45 m 6.654 m 14 3 × 14 4.1 m 98 mm 4.110 mm × 500 mm × 220 mm 31.5 kg 1.2 m 10.05 m
