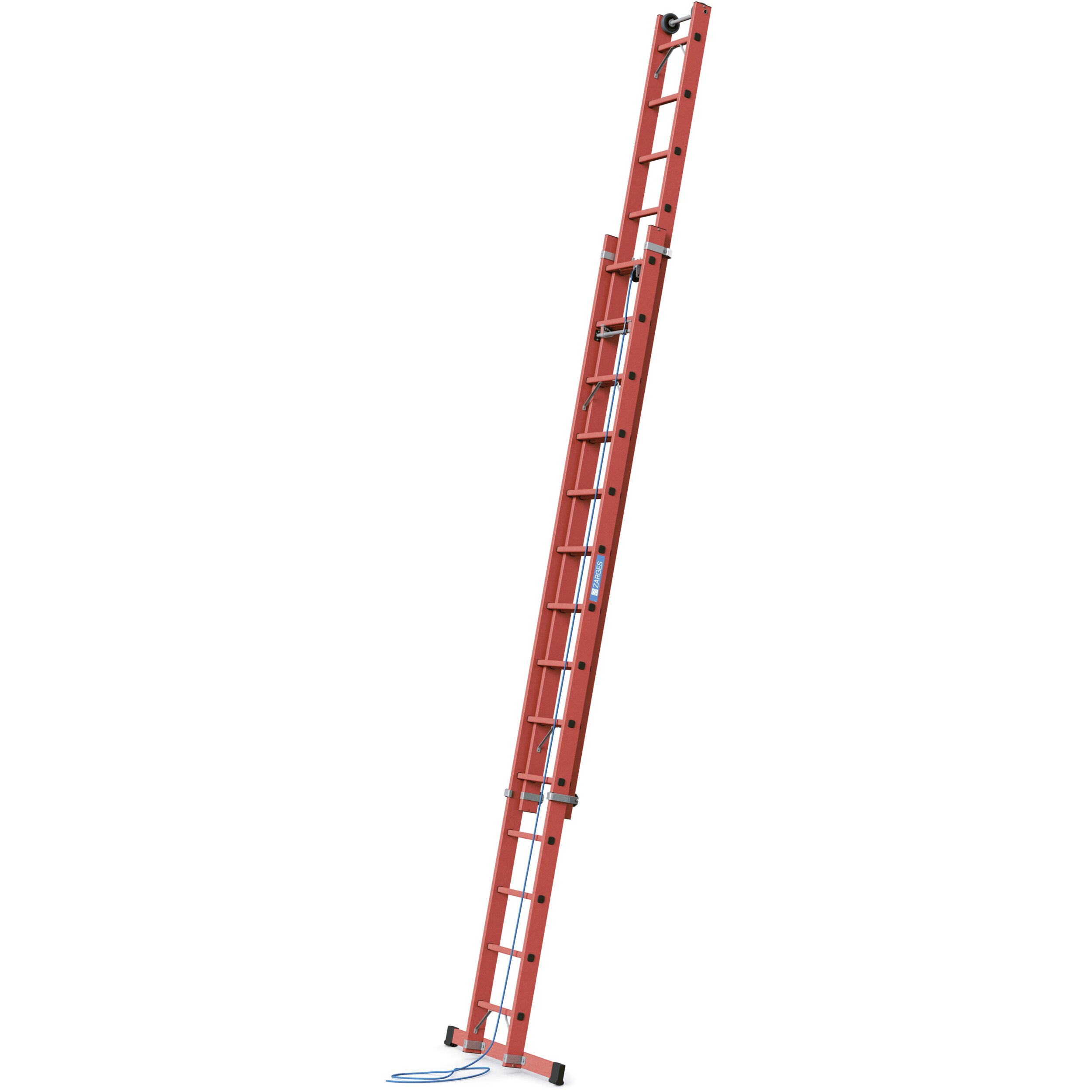

Skyline EFA 2E

SKU: 41274

Details

For special applications at great heights: the special ladder for working in high-voltage or chemical environments, with convenient height adjustment.

  • For special applications at great heights: the special ladder for working in high-voltage or chemical environments, with convenient height adjustment.
  • Stiles and rungs made of glass-fibre-reinforced plastic for particularly high chemical resistance.
  • Complies with the high-voltage test for ladders of insulating material in accordance with DIN EN 61 478 or VDE 0682 Section 6.5 Category 1/30 KV.
  • Suitable for working in high-voltage environments (1000 V AC, 1500 V DC).
  • Very easy and convenient rung-by-rung height adjustment in a 280 mm grid via synthetic rope and roller.
  • Wall wheels that will not damage the wall.
  • Stiles and rungs (30 mm x 30 mm) made from glass-fibre-reinforced plastic for particularly high chemical resistance.
  • Resistance to ageing in accordance with DIN EN ISO 4892-2.
  • Overall width of bottom section: 430 mm.
  • Replaceable 2-component plastic end caps ensure secure positioning without the risk of slipping.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Number of rungs 2 × 14
Warranty 10 years
Standards EN 131 professional
Material Glass-fibre reinforced plastic
Load capacity max. 150 kg
Tread depth 30 mm
Transport dimensions 4.100 mm × 470 mm × 150 mm
Working height 7.95 m
Overall length, extended 7.17 m
Overall length, retracted 4.09 m
Wheels Rubber
Number ladderparts 2
Number of rungs 14
Pitch rung/tread 270 mm
Producttype GRP rope-operated ladder with rungs, 2-section
Type rung/tread serrated
Weight 35.7 kg
External width of lower ladder 420 mm
Wide crosspiece 1.1 m
Stile depth 90 mm
Number of rungs / treads 2 × 14

Variants

Order number Number of rungs Number of rungs Overall length, extended Overall length, retracted Transport dimensions Weight Wide crosspiece Working height
41274 14 2 × 14 7.17 m 4.09 m 4.100 mm × 470 mm × 150 mm 35.7 kg 1.1 m 7.95 m
41276 16 2 × 16 7.72 m 4.64 m 4.650 mm × 450 mm × 150 mm 41.3 kg 1.2 m 8.5 m
