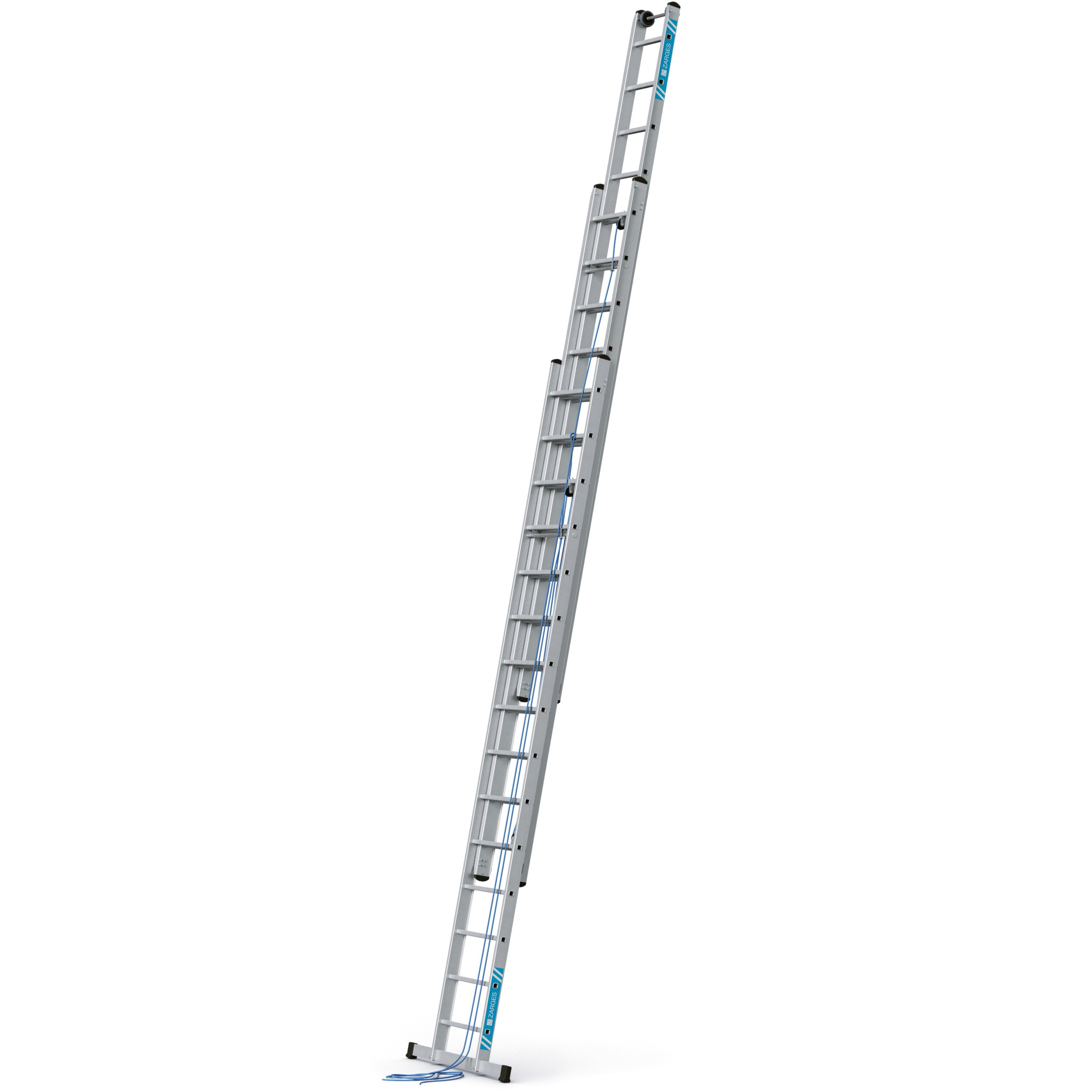

Skyline 3E

SKU: 40446

Details

When you need access to great heights: Optimised transport dimensions, working heights of up to 14.70 m with convenient height adjustment.

When you need access to great heights: Optimised transport dimensions, working heights of up to 14.70 m with convenient height adjustment.

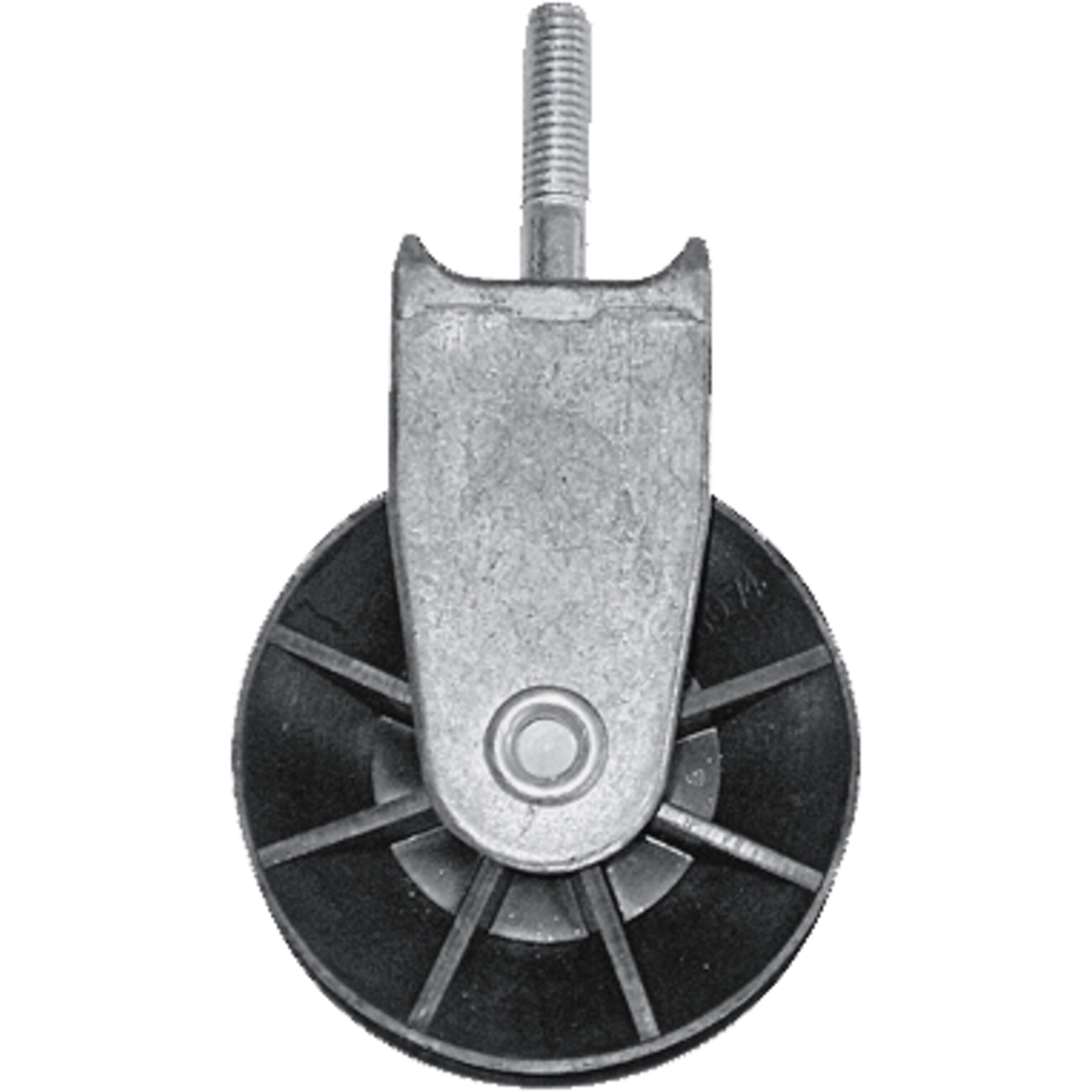

Wheel assemblies with abrasion-resistant surfaces that will not damage the wall.
Two ropes so that centre and top sections can be adjusted separately.
Rung-by-rung height adjustment in a grid of 280 mm.
The ladder with the Order No. 40448 is equipped with 2 light alloy supports for easy erection and stabilisation. (Not to be used as free-standing ladders!)
Locks securely thanks to automatic spring loaded pawls.
Improved plastic guide.
Replaceable 2-component plastic end caps ensure secure positioning without the risk of slipping.
Rungs and stiles made from extruded aluminium sections.

More Information
Standards	EN 131 professional
Warranty	10 years
Number of rungs	3 × 15
Material	Aluminium
Load capacity	max. 150 kg
Coating	natural
Connection Stile-Rung	flanged
Tread depth	30 mm
Transport dimensions	4.420 mm × 565 mm × 228 mm
Stile depth	86mm / 98mm
Working height	11.15 m
Overall length, extended	10.55 m
Overall length, retracted	4.4 m
Wheels	Rubber
Number ladderparts	3
Number of rungs	15
Pitch rung/tread	270 mm
Producttype	Flanged rope-operated ladder with rungs, 3-section
Type rung/tread	serrated
Weight	45 kg
External width of lower ladder	560 mm
Wide crosspiece	1.2 m
Stile depth	86 mm
Stile depth	98 mm
Number of rungs / treads	3 × 15

Order number	External width of lower ladder	Number of rungs	Number of rungs	Overall length, extended	Overall length, retracted	Stile depth	Stile depth	Transport dimensions	Weight	Working height
40446	560 mm	15	3 × 15	10.55 m	4.4 m	86 mm	86mm / 98mm	4.420 mm × 565 mm × 228 mm	45 kg	11.15 m
40447	560 mm	18	3 × 18	12.55 m	5.25 m	86 mm	86mm / 98mm	5.260 mm × 565 mm × 228 mm	53 kg	13.1 m
40448	590 mm	20	3 × 20	14.2 m	5.8 m	98 mm	98mm / 98mm	5.820 mm × 718 mm × 242 mm	68 kg	14.7 m
