Skyline 2E

SKU: 40207

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents Spare parts and accessories

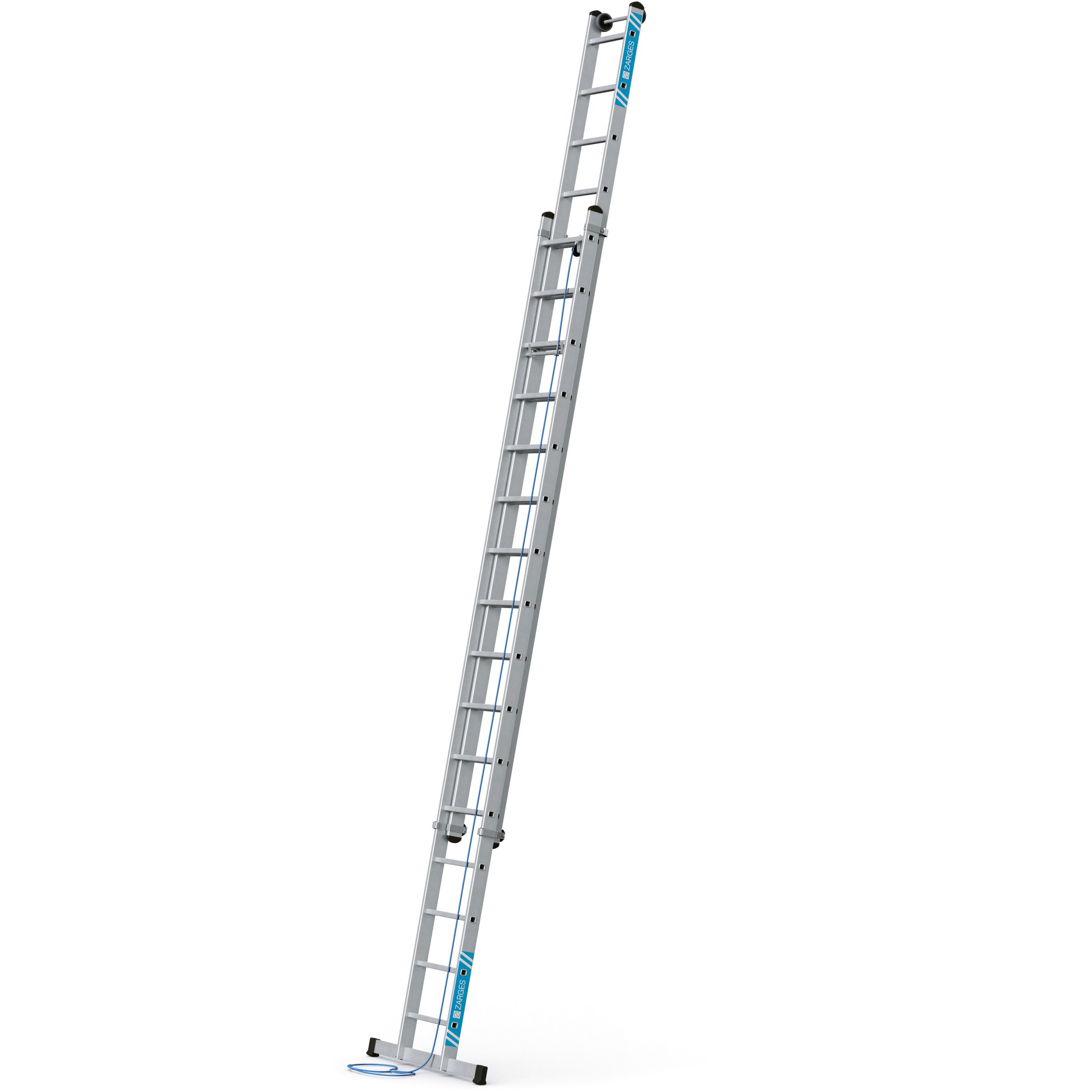

main product photo

Details

Easy and convenient vertical height adjustment makes this ladder ideal for use to access very great heights.

  • Easy and convenient vertical height adjustment makes this ladder ideal for use to access very great heights.
  • Very easy and convenient rung-by-rung height adjustment in a 280 mm grid via synthetic rope and roller.
  • Locks securely thanks to automatic spring loaded pawls.
  • Top ladder section fitted with wall wheels.
  • Wheel assemblies with abrasion-resistant surfaces that will not damage the wall.
  • A high level of stability thanks to extra-wide bottom ladder (490 mm).
  • High strength, non-twist rung/stile connections.
  • Replaceable 2-component plastic end caps ensure secure positioning without the risk of slipping.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Number of rungs 2 × 16
Warranty 10 years
Standards EN 131 professional
Material Aluminium
Load capacity max. 150 kg
Coating natural
Connection Stile-Rung flanged
Tread depth 30 mm
Transport dimensions approx. 4.670 mm × approx. 520 mm × approx. 200 mm
Stile depth 98mm
Working height 9 m
Overall length, extended 8.33 m
Overall length, retracted 4.7 m
Wheels Rubber
Number ladderparts 2
Number of rungs 16
Pitch rung/tread 270 mm
Producttype Flanged rope-operated ladder with rungs, 2-section
Type rung/tread serrated
Weight 25.9 kg
External width of lower ladder 490 mm
Wide crosspiece 1.2 m
Stile depth 98 mm
Number of rungs / treads 2 × 16

Variants

Order number Number of rungs Number of rungs Overall length, extended Overall length, retracted Stile depth Stile depth Transport dimensions Weight Working height
40206 14 2 × 14 7.21 m 4.14 m 85 mm 85mm approx. 4.150 mm × approx. 520 mm × approx. 160 mm 23 kg 7.9 m
40207 16 2 × 16 8.33 m 4.7 m 98 mm 98mm approx. 4.670 mm × approx. 520 mm × approx. 200 mm 25.9 kg 9 m
40208 18 2 × 18 9.13 m 5.2 m 98 mm 98mm approx. 5.200 mm × approx. 520 mm × approx. 200 mm 32.2 kg 9.75 m
40209 20 2 × 20 10.25 m 5.74 m 114 mm 114mm approx. 5.740 mm × approx. 520 mm × approx. 220 mm 33.8 kg 10.85 m
40210 24 2 × 24 12.22 m 6.9 m 114 mm 114mm approx. 6.910 mm × approx. 520 mm × approx. 220 mm 42.6 kg 12.75 m
