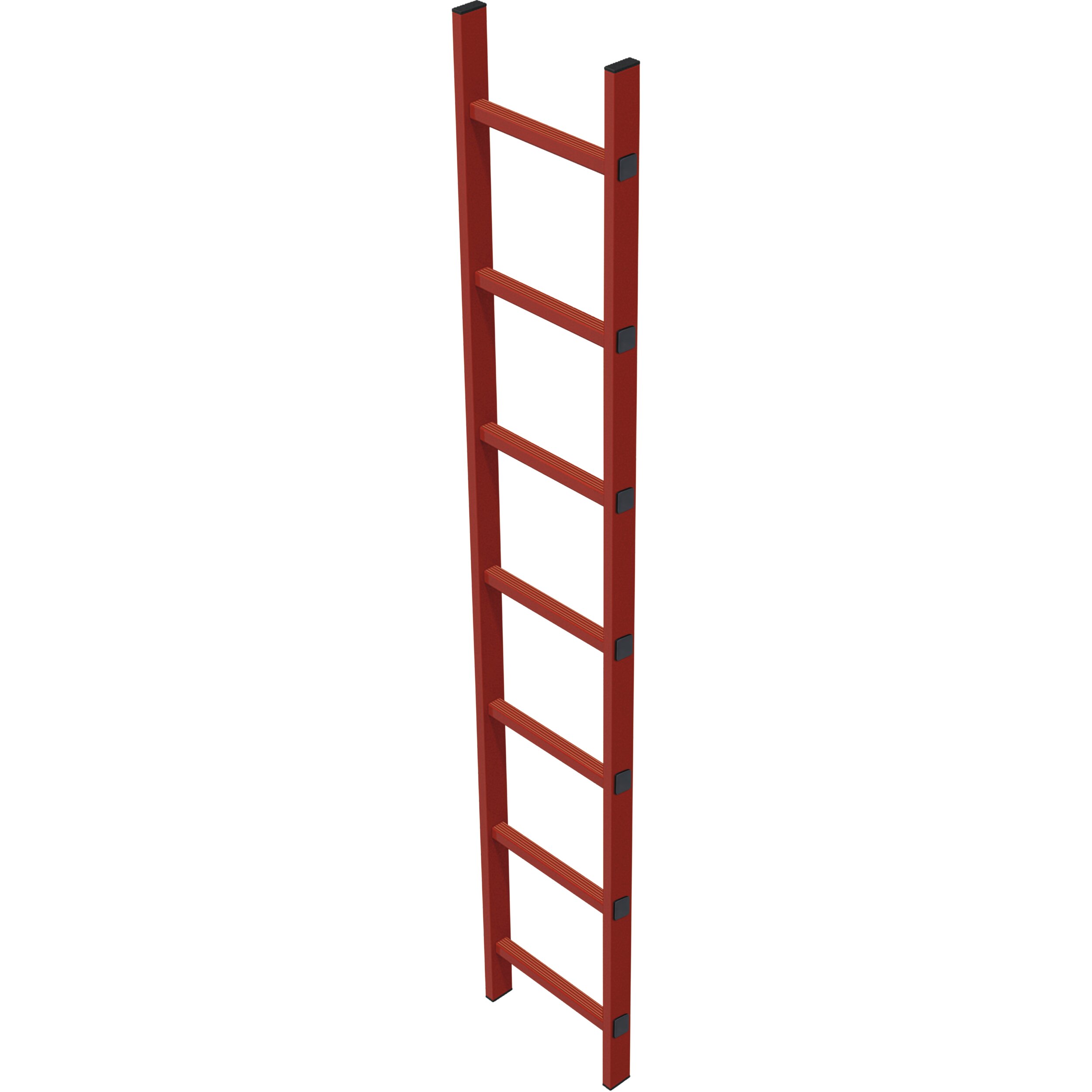

Shaft ladder, GRP, internal width 400 mm

SKU: 47379

Details

  • Internal ladder width: 400 mm.
  • Overall ladder width: 440 mm.
  • Rung spacing: 280 mm.
  • Dimensions of stile: 58 x 25 mm.
  • 30 x 30 mm non-slip plastic rungs.
  • Material: glass-fibre-reinforced plastic (GRP).

Hints and special features

  • A fall arrester device is mandatory in the case of possible falling heights in excess of 5.00 m. From an internal width of 300 mm upwards, it is attached to the stile. From an internal width of 400 mm upwards, it is attached in centred position on the rungs.
  • assembly combination for further lengths on request.

More Information

More Information
Order number 47379
Warranty 10 years
Length 3.36 m
Material Glass-fibre reinforced plastic
Tread depth 30 mm
Number of rungs 12
Pitch rung/tread 280 mm
Weight 18.5 kg
Ladder width 450 mm
Stile depth 58 mm
Number of rungs / treads 12

Variants

Order number Length Number of rungs Weight
47371 1.12 m 4 5.7 kg
47372 1.4 m 5 7.3 kg
47373 1.68 m 6 8.9 kg
47374 1.96 m 7 10.5 kg
47375 2.24 m 8 12.1 kg
47376 2.52 m 9 13.7 kg
47377 2.8 m 10 15.3 kg
47378 3.08 m 11 16.9 kg
47379 3.36 m 12 18.5 kg
47673 3.64 m 13 20.1 kg
47674 3.92 m 14 21.7 kg
47675 4.2 m 15 23.3 kg
