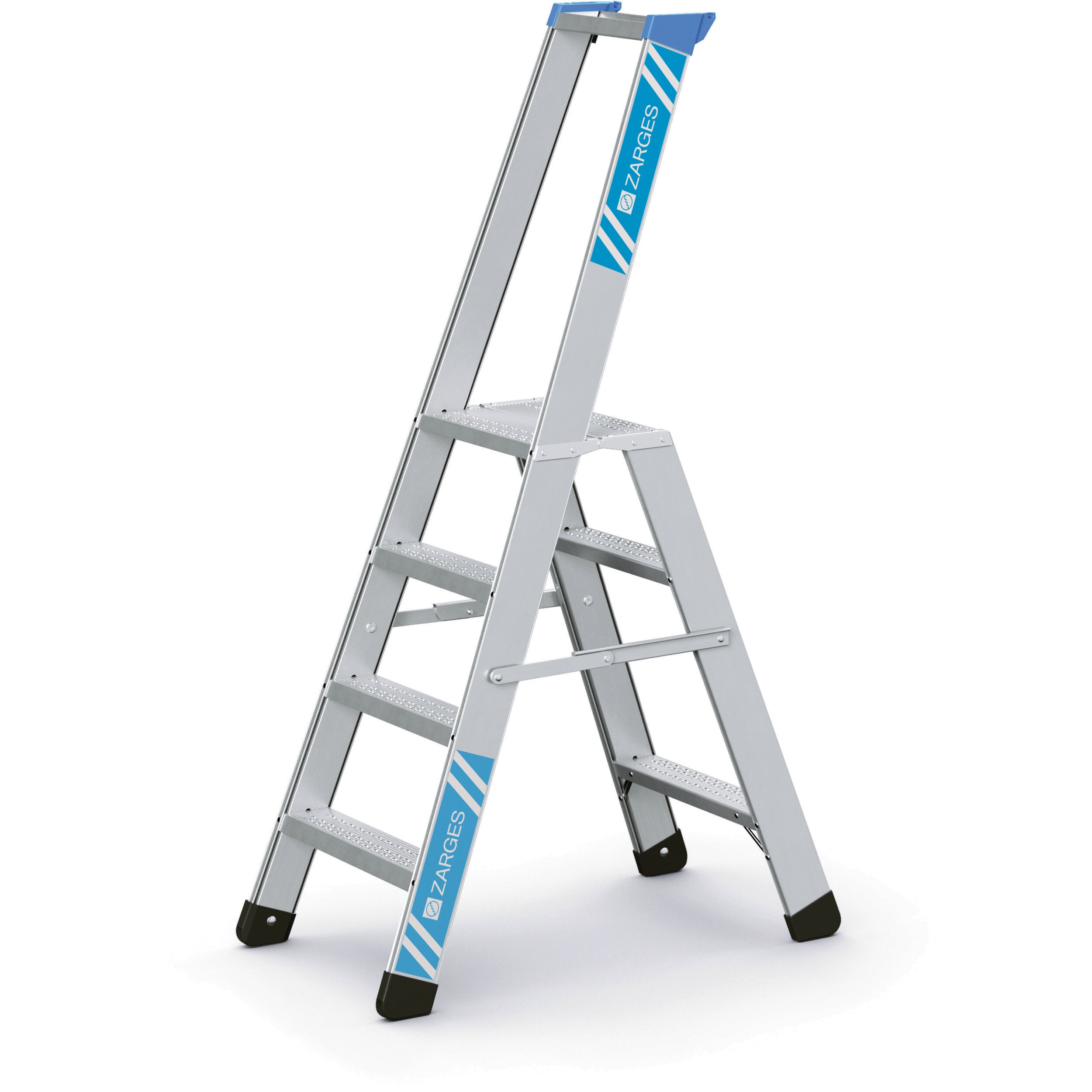

Seventec RC S

SKU: 40494

Details

The ladder for optimal safety in outdoor areas.

  • The ladder for optimal safety in outdoor areas.
  • Extra-deep treads with perforations for draining liquids (for use in oily or wet areas) and textured surface to ensure secure footing.
  • Reflective strips on the stiles to improve visibility in poor visual conditions.
  • 85 mm deep treads with perforation to allow liquids to flow off and profiling to ensure stability.
  • Large safety platform (380 x 260 mm) with integrated hinged connection.
  • Optimal stability thanks to the fold-down locking bar on both sides.
  • Practical tray with plenty of space for tools and small items.
  • Two integrated bucket hooks.
  • 7-point connection between tread and stile with reinforcement in the centre of the tread.
  • Smooth external stile surfaces that are comfortable to hold.
  • Treads and stiles made from extruded aluminium sections.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Platform height 0.9 m
Platform length 260 mm
Warranty 10 years
Standards EN 131 professional
Platform width 380 mm
Material Aluminium
Load capacity max. 150 kg
Anti splay Rigid locking bar
Base 0,88 m × 0,48 m
Coating natural
Connection Stile-Rung riveted
Tread depth 85 mm
Transport dimensions 1.680 mm × 490 mm × 250 mm
Vertical ladder height 1.54 m
Stile depth steps/back stay 87mm / 87mm
Working height 2.9 m
Overall length 1.67 m
Tray Aluminium
Number of rungs, incl. platform 4
Pitch rung/tread 218 mm
Producttype Riveted stepladder with treads
Type rung/tread RC tread
Weight 7.9 kg
Overall base width 0.47 m
Stile depth 87 mm
Stile depth 87 mm
Length base area 0.88 m
Width base area 0.48 m
Number of rungs / treads 4

Variants

Order number Base Number of rungs, incl. platform Overall base width Overall length Platform height Transport dimensions Vertical ladder height Weight Working height
40493 0,71 m × 0,45 m 3 0.45 m 1.44 m 0.7 m 1.450 mm × 460 mm × 250 mm 1.31 m 6.3 kg 2.7 m
40494 0,88 m × 0,48 m 4 0.47 m 1.67 m 0.9 m 1.680 mm × 490 mm × 250 mm 1.54 m 7.9 kg 2.9 m
40495 1,05 m × 0,5 m 5 0.49 m 1.9 m 1.1 m 1.910 mm × 510 mm × 250 mm 1.79 m 8.1 kg 3.1 m
