Scana S

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents Spare parts and accessories

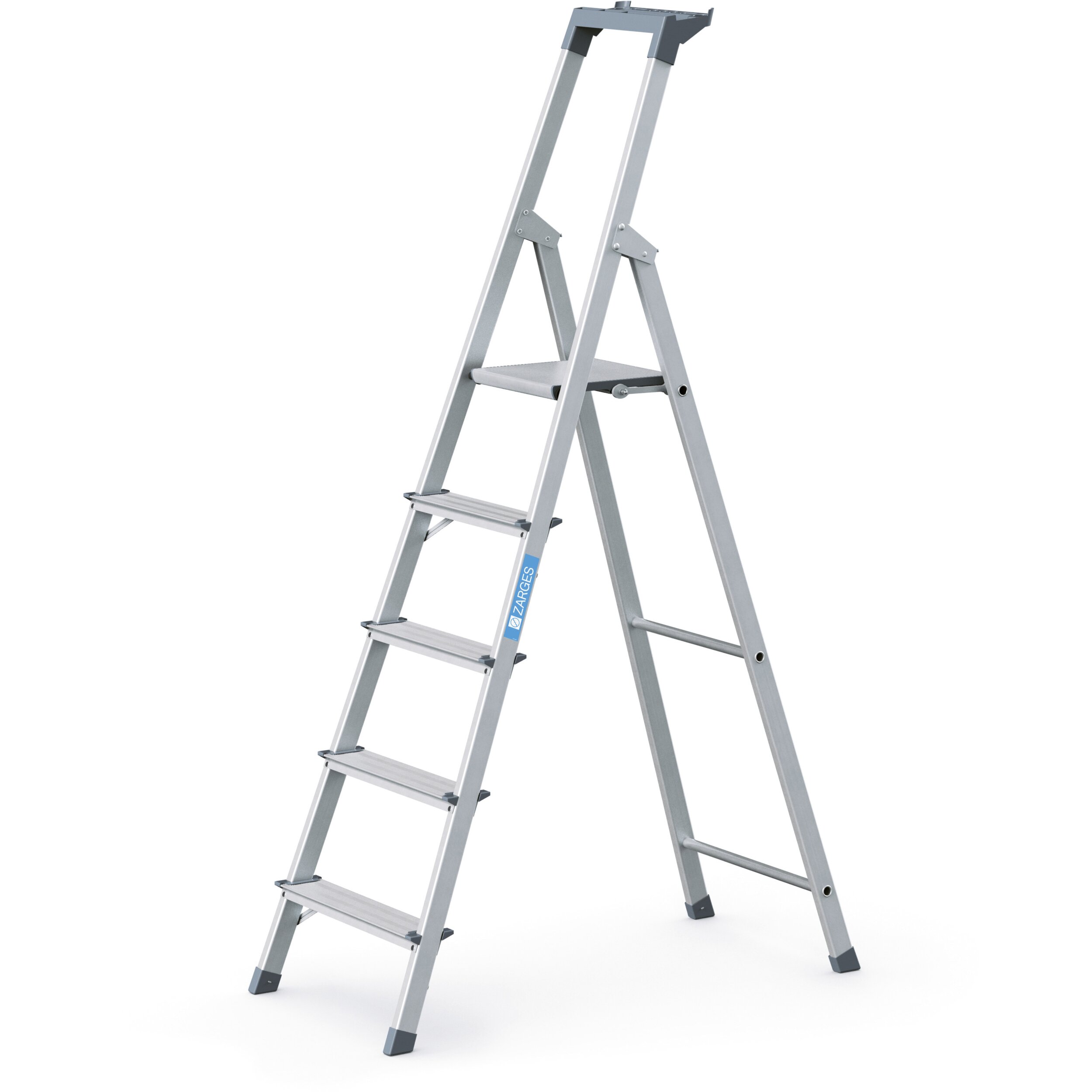

main product photo

Details

High degree of comfort while working due to abrasion-resistant, anodised stiles and large storage tray.

  • High degree of comfort while working due to abrasion-resistant, anodised stiles and large storage tray.
  • Large platform with anti-slip ribbing.
  • Tread depth 80 mm.
  • Abrasion-resistant, anodised stiles.
  • Practical tray with plenty of space for tools and small items.
  • High-strength Perlon belts prevent splay from 6 rungs.
  • The extruded aluminium sections give the platform optimum stability.
  • Two extruded section bridge raisers.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Standards EN 131 professional
Warranty 10 years
Platform length 250 mm
Platform width 250 mm
Material Aluminium
Load capacity max. 150 kg
Anti splay Belt strap
Coating anodised
Connection Stile-Rung riveted
Tread depth 80 mm
Tray Plastic
Pitch rung/tread 216 mm
Producttype Riveted stepladder with treads
Type rung/tread serrated
Stile depth 40 mm
Stile depth 40 mm

Variants

Order number Anti splay Base Number of rungs, incl. platform Overall base width Overall length Platform height Transport dimensions Vertical ladder height Weight Working height
44153 0,67 m × 0,41 m 3 0.41 m 1.36 m 0.59 m 1.370 mm × 410 mm × 110 mm 1.2 m 3.7 kg 2.6 m
44154 0,82 m × 0,43 m 4 0.43 m 1.59 m 0.81 m 1.600 mm × 440 mm × 110 mm 1.42 m 4.4 kg 2.8 m
44155 0,96 m × 0,46 m 5 0.46 m 1.82 m 1.03 m 1.830 mm × 460 mm × 110 mm 1.64 m 5.1 kg 3 m
44156 Belt strap 1,1 m × 0,48 m 6 0.48 m 2.05 m 1.24 m 2.060 mm × 490 mm × 110 mm 1.85 m 5.9 kg 3.25 m
44157 Belt strap 1,25 m × 0,51 m 7 0.51 m 2.29 m 1.47 m 2.290 mm × 510 mm × 110 mm 2.08 m 6.6 kg 3.5 m
44158 Belt strap 1,7 m × 0,53 m 8 0.53 m 2.52 m 1.7 m 2.520 mm × 530 mm × 110 mm 2.31 m 8 kg 3.7 m
