Saferstep B

SKU: 41303

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents Spare parts and accessories

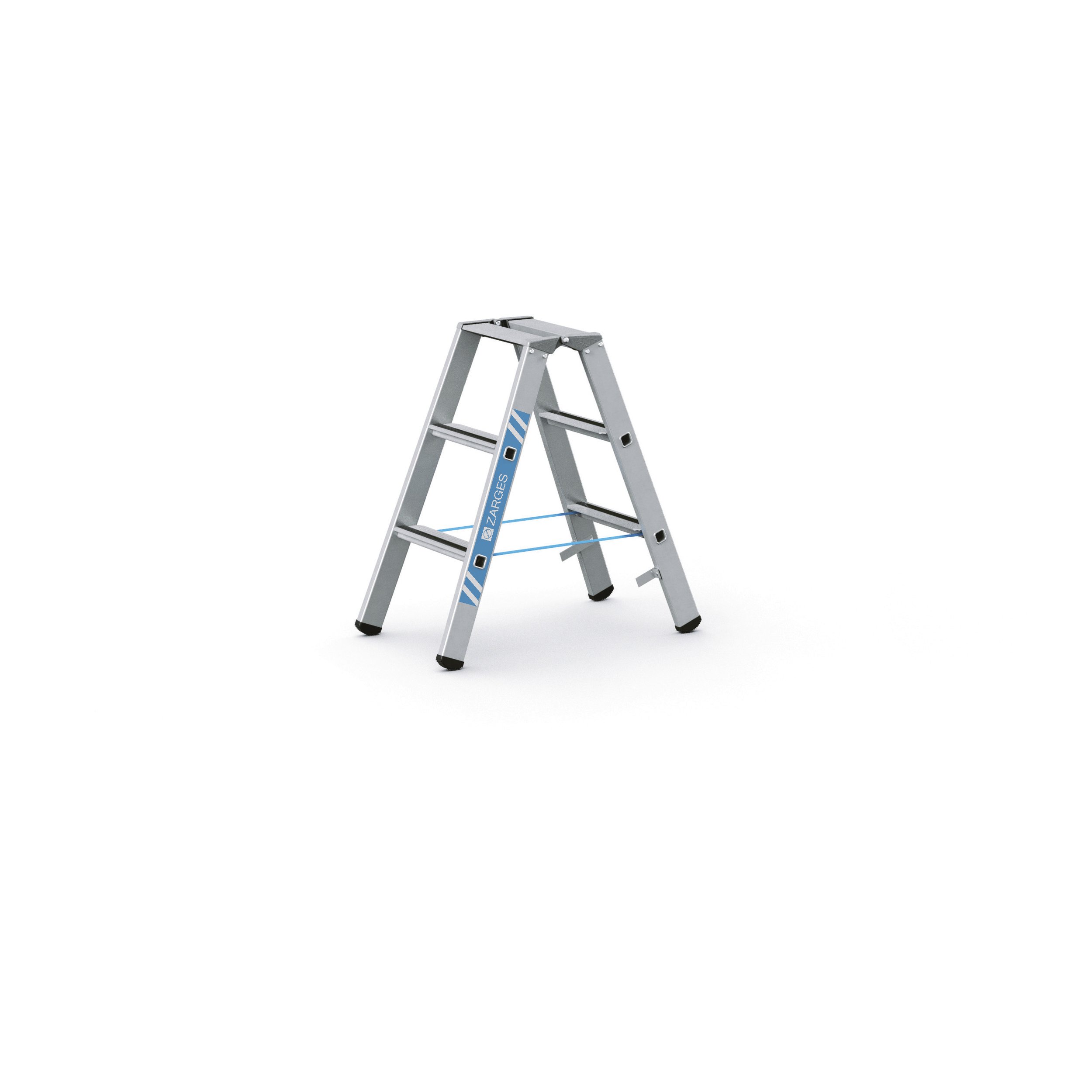

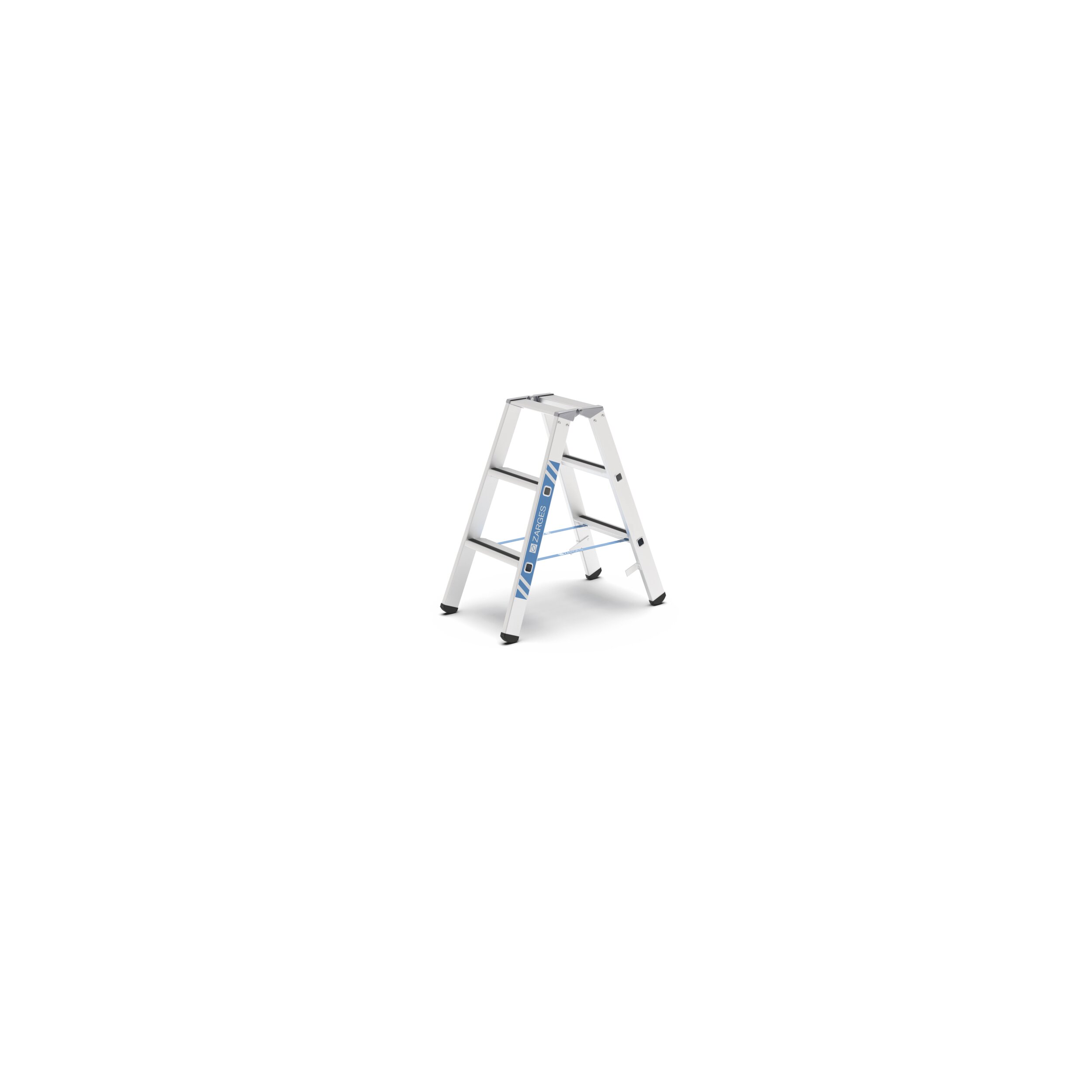

main product photo

Details

The comfort version for flexible application, with high safety due to the use of Safer Step Technology and pleasant to grip.

  • The comfort version for flexible application, with high safety due to the use of Safer Step Technology and pleasant to grip.
  • Tread with ZARGES Safer Step Technology, 80 mm deep.
  • Abrasion-resistant, anodised stiles.
  • Hinges of diecast aluminium.
  • High-strength perlon belts prevent splay.
  • Replaceable 2-component plastic end caps ensure positioning without risk of slipping and at the same time provide firm seating in the stile.
  • Maximum working heights thanks to 280mm high access.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Standards EN 131 professional
Warranty 10 years
Material Aluminium
Load capacity max. 150 kg

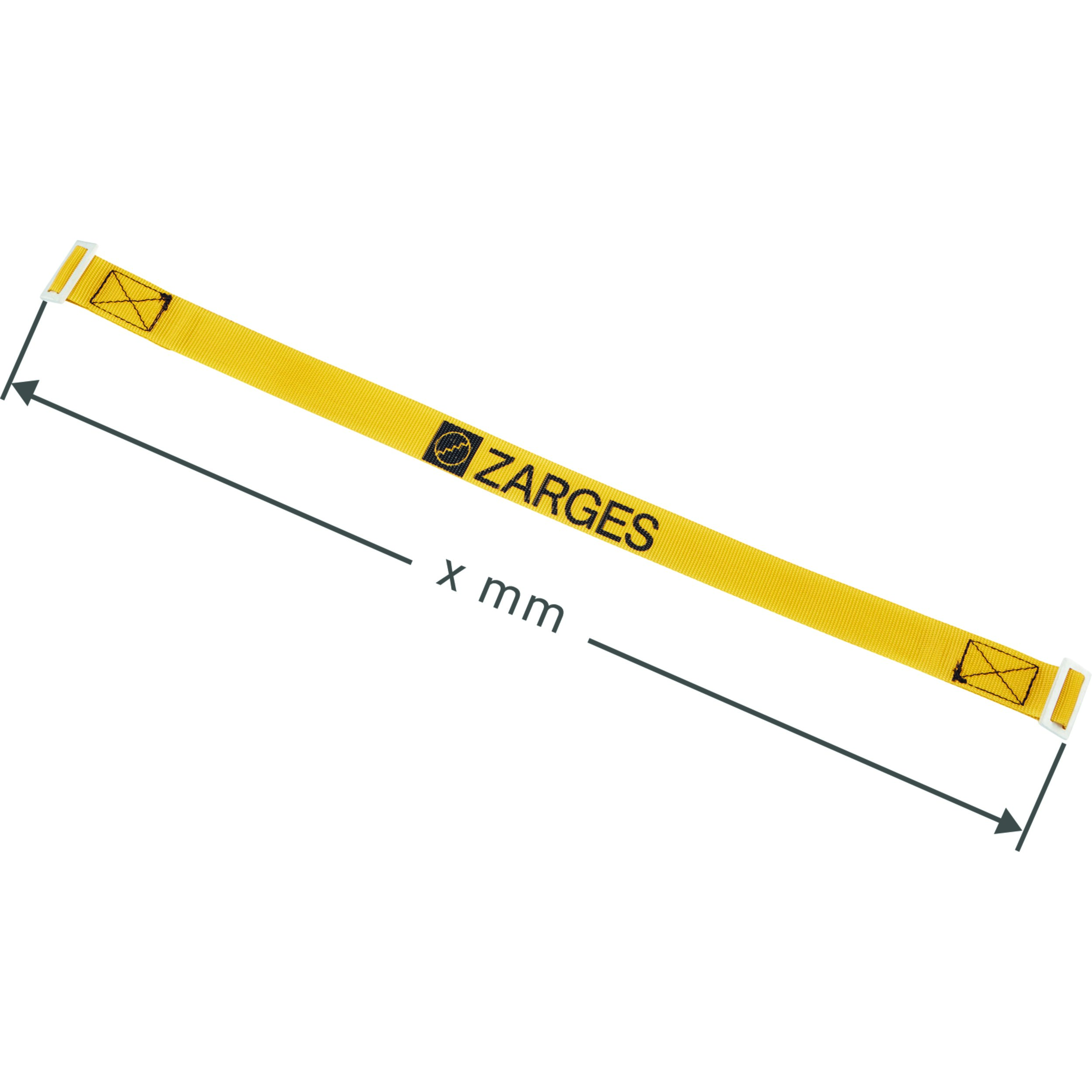

Anti splay Belt strap
Base 0,8 m × 0,44 m
Coating anodised
Connection Stile-Rung flanged
Tread depth 80 mm
Transport dimensions 875 mm × 445 mm × 230 mm
Vertical ladder height 0.8 m
Working height 2.3 m
Overall length 0.88 m
Number of treads 3
Number of treads 2 × 3
Pitch rung/tread 265 mm
Producttype Stepladder with flanged treads
Type rung/tread Safer Step
Weight 4.6 kg
Overall base width 0.44 m
Stile depth 68 mm
Number of rungs / treads 2 × 3

Variants

Order number Base Number of treads Number of treads Overall base width Overall length Transport dimensions Vertical ladder height Weight Working height
41303 0,8 m × 0,44 m 3 2 × 3 0.44 m 0.88 m 875 mm × 445 mm × 230 mm 0.8 m 4.6 kg 2.3 m
41304 0,99 m × 0,47 m 4 2 × 4 0.47 m 1.15 m 1.153 mm × 475 mm × 230 mm 1.06 m 6.1 kg 2.55 m
41305 1,18 m × 0,5 m 5 2 × 5 0.5 m 1.42 m 1.425 mm × 505 mm × 230 mm 1.32 m 7.6 kg 2.8 m
41306 1,38 m × 0,53 m 6 2 × 6 0.53 m 1.7 m 1.705 mm × 535 mm × 230 mm 1.58 m 9.3 kg 3.05 m
41307 1,58 m × 0,56 m 7 2 × 7 0.56 m 1.98 m 1.985 mm × 565 mm × 230 mm 1.84 m 10.9 kg 3.3 m
41308 1,77 m × 0,59 m 8 2 × 8 0.59 m 2.27 m 2.275 mm × 595 mm × 230 mm 2.1 m 12.7 kg 3.6 m
41310 2,16 m × 0,65 m 10 2 × 10 0.65 m 2.83 m 2.835 mm × 655 mm × 230 mm 2.62 m 16.4 kg 4.15 m
41312 2,55 m × 0,71 m 12 2 × 12 0.71 m 3.39 m 3.390 mm × 715 mm × 230 mm 3.15 m 20.3 kg 4.65 m
41314 2,95 m × 0,77 m 14 2 × 14 0.77 m 3.95 m 3.950 mm × 775 mm × 230 mm 3.67 m 24.4 kg 5.2 m
41316 3,34 m × 0,83 m 16 2 × 16 0.83 m 4.51 m 4.510 mm × 830 mm × 230 mm 4.21 m 28.8 kg 5.7 m
